24-Inch Bar Type Monitor (Standalone & Network Versions) - RK3566S Chip, 1920×360 Resolution

24-Inch Bar Type Monitor (Standalone & Network Versions) - RK3566S Chip, 1920×360 Resolution

Overview
Recommended Products

Product General Information:

Place of Origin	China
Brand Name	AWSTOUCH
Model Number	BT2402-S
Certification	CE, FCC, RoHS, WiFi Alliance

Product Introduction:

Quick Detail

Alternative Names: 24-inch Narrow Bar Display, Standalone/Network Strip Monitor, RK3566S Smart Bar Screen, 1920×360 Multi-Interface Display

Main Applications: Retail shelf advertising, chain store remote content push, elevator information release, transportation guidance, industrial monitoring, office data synchronization

Core Specifications: 24-inch screen; 1920×360 resolution; Standalone: HDMI/VGA/DVI, plug-and-play; Network: RK3566S chip, WiFi/Ethernet, remote management

Description:

This 24-inch bar type monitor offers two high-adaptability versions to cover diverse application demands: the Standalone Version (Model: BT2402-S) and the Network Version (Model: BT2403-N) powered by the RK3566S high-performance chip. Both adopt a slim, strip-shaped design tailored for narrow spaces, solving the installation dilemma of traditional wide-screen monitors in shelves, corridors, elevators, and other limited areas. With a 1920×360 special strip resolution, they deliver sharp, distortion-free visuals for linear content like product lists, guidance information, and sequential advertisements, ensuring clear text and vivid colors that capture audience attention.

The Standalone Version supports plug-and-play operation through HDMI, VGA, and DVI interfaces, seamlessly connecting to computers, set-top boxes, industrial controllers, and other devices without the need for network support or complex software installation—ideal for scenarios requiring simple and direct display. The Network Version is equipped with the quad-core Cortex-A55 RK3566S chip (1.8GHz) and runs on Android 11 OS, integrating WiFi (802.11 b/g/n/ac) and Ethernet (RJ45) connectivity. It enables centralized remote management via cloud platforms, supporting batch content updates, scheduled playback, real-time data synchronization, and app installation, which is perfect for chain stores, large-scale venues, and scenarios requiring unified content control.

Both versions feature high-quality LCD panels with 300 cd/m² brightness, 1000:1 contrast ratio, and 178° wide viewing angles, ensuring consistent and clear visuals from any direction. Built with stable driving circuits and durable materials, they support 24/7 continuous operation, boasting reliable performance and a long service life to meet the high-frequency use demands of commercial, industrial, and public scenarios. Whether you need a cost-effective standalone solution or an intelligent networked display, this product delivers exceptional adaptability and display effects.

Applications:

Retail Industry: Shelf product introduction, aisle discount prompts, checkout counter promotion, chain store unified content release

Transportation: Subway/airport corridor guidance, flight/train schedule real-time synchronization, elevator car dynamic information display

Catering Industry: Countertop menu remote modification, chain restaurant special offer push, buffet area food information update

Public Places: Mall wayfinding, hotel elevator service prompts, hospital corridor real-time notices

Industrial & Office: Production line data remote monitoring, office corridor notice cloud management, exhibition booth intelligent advertising

Chain Operations: Multi-store content centralized control, brand information unified release, regional promotion strategy synchronization

Specifications:

Item	Standalone Version (BT2402-S)	Network Version (BT2403-N, RK3566S)
Screen Size	24 Inches	24 Inches
Resolution	1920×360 (Wide Strip Ratio)	1920×360 (Wide Strip Ratio)
Screen Type	LCD Panel	LCD Panel
Aspect Ratio	5:1	5:1
Brightness	500 cd/m²	500 cd/m²
Contrast Ratio	1000:1	1000:1
Viewing Angle	178° (Horizontal)/178° (Vertical)	178° (Horizontal)/178° (Vertical)
Response Time	5ms	5ms

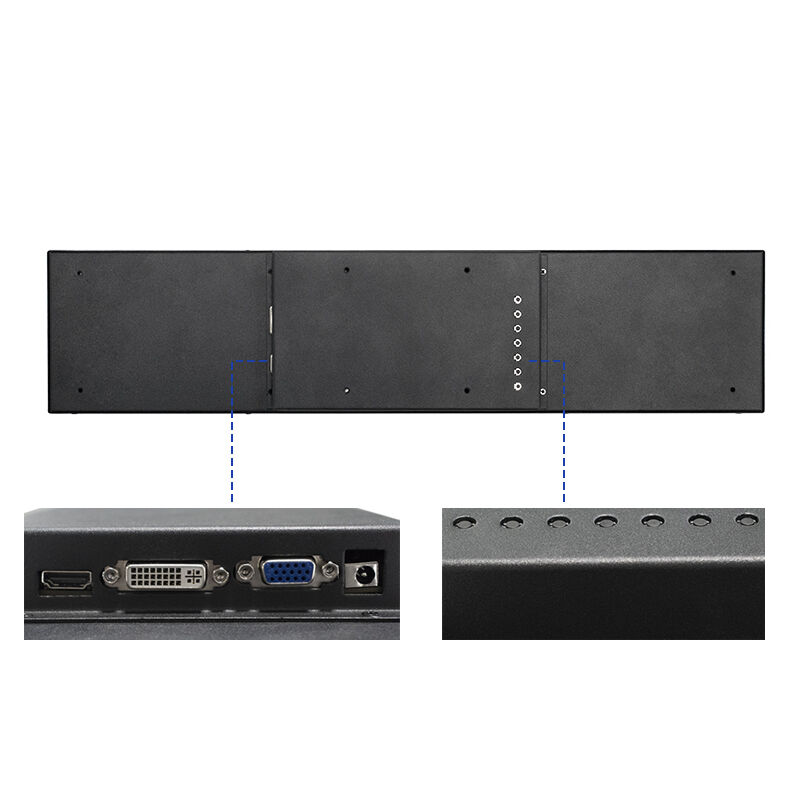

Input Interfaces	HDMI ×1, VGA ×1, DVI ×1	HDMI ×1, VGA ×1, DVI ×1, RJ45 ×1 (Ethernet)
Core Configuration	-	RK3566S Quad-Core Cortex-A55 (1.8GHz)
Memory	--	2GB LPDDR4
Storage	--	16GB eMMC
Network Connectivity	-	WiFi 802.11 b/g/n/ac, 10/100M Ethernet
Operating System	-	Android 11
Power Supply	AC 100-240V, 50/60Hz	AC 100-240V, 50/60Hz
Power Consumption	≤30W (Operating); ≤0.5W (Standby)	≤35W (Operating); ≤0.5W (Standby)
Operation Mode	Standalone (No Network Required)	Network (Remote Management) + Standalone
Operating Temperature	0°C - 40°C	0°C - 40°C
Storage Temperature	-20°C - 60°C	-20°C - 60°C
Dimensions (W×H×D)	550mm × 80mm × 30mm (Screen Only)	550mm × 80mm × 35mm (Screen Only, with Network Module)
Weight	2.5kg (Net Weight)	2.7kg (Net Weight)
Installation Method	Wall-mounted, Desktop-mounted, Shelf-mounted (Bracket Optional)	Wall-mounted, Desktop-mounted, Shelf-mounted (Bracket Optional)

Competitive Advantage:

Dual Version Selection: Standalone (plug-and-play for simple use) and Network (intelligent management for large-scale scenarios) to meet diverse needs.

Powerful Network Performance: RK3566S chip + Android 11 OS enables remote content push, batch management, and real-time synchronization, improving operational efficiency.

Multi-Interface Compatibility: HDMI/VGA/DVI interfaces (both versions) + Ethernet/WiFi (network version) ensure wide compatibility with signal sources and environments.

Optimized Strip Resolution: 1920×360 ratio perfectly fits narrow spaces, delivering clear and vivid linear content presentation.

Reliable Continuous Operation: High-quality panel and stable circuit design support 24/7 use, with long service life and low failure rate.

Flexible Installation: Supports wall, desktop, and shelf mounting, adaptable to various narrow-space installation requirements.

Tag:

24-inch bar monitor, 1920×360 display, RK3566S smart screen, networked bar display, standalone strip monitor, HDMI VGA DVI monitor, remote content management, narrow-space advertising
