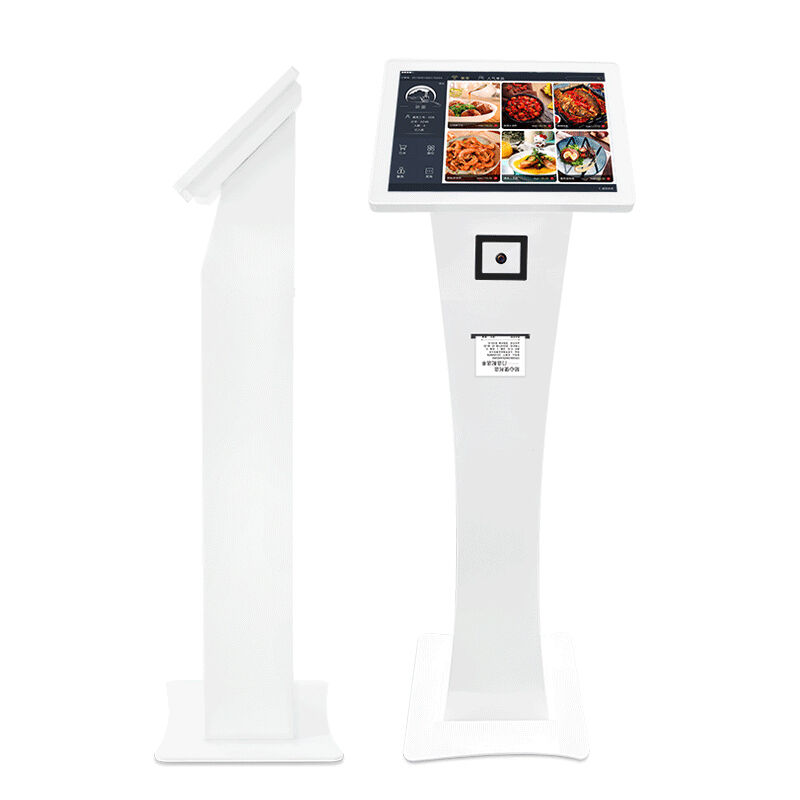

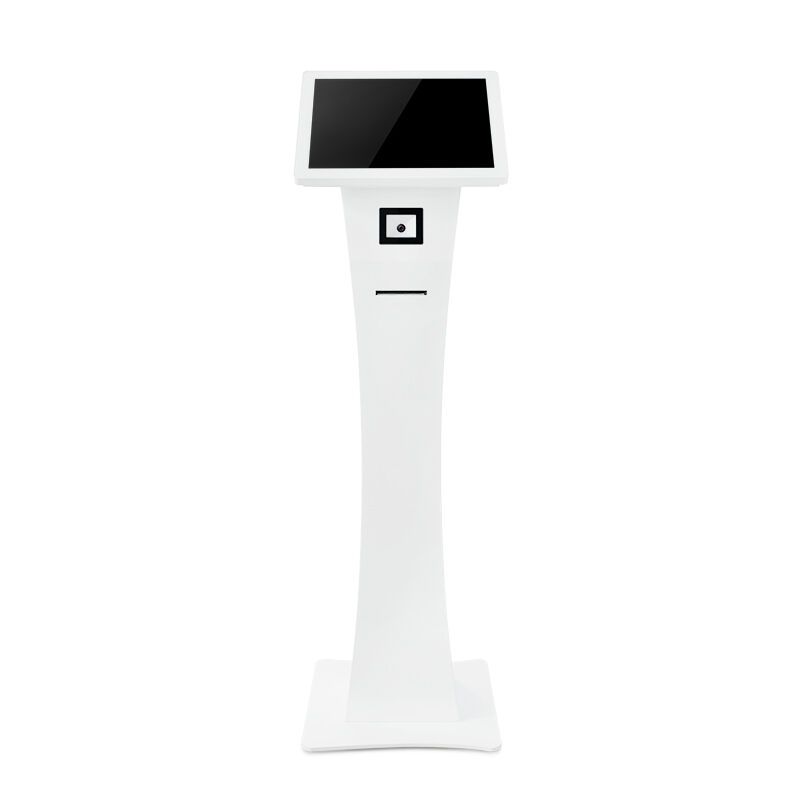

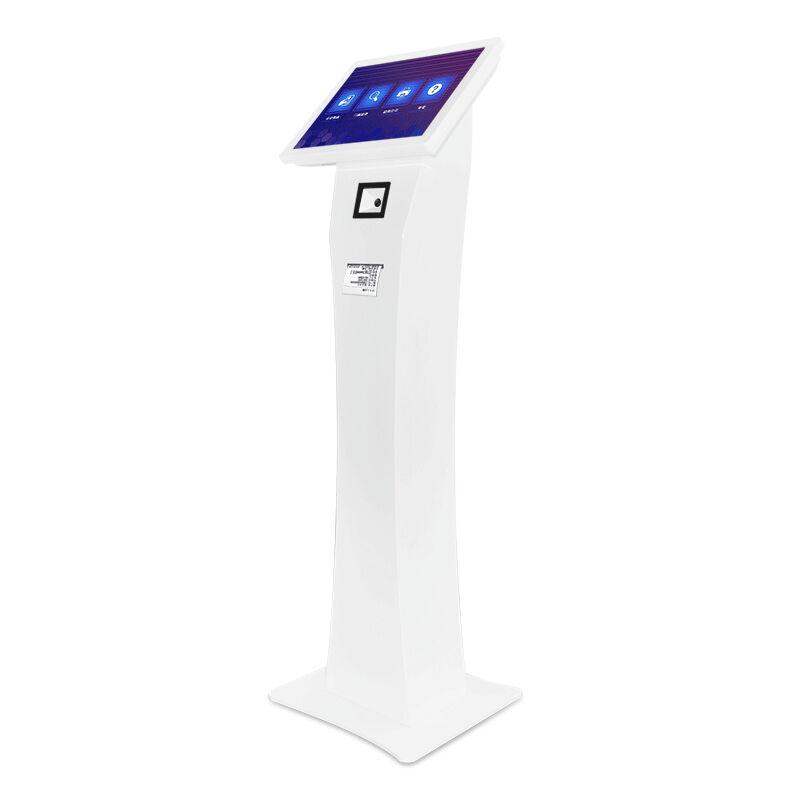

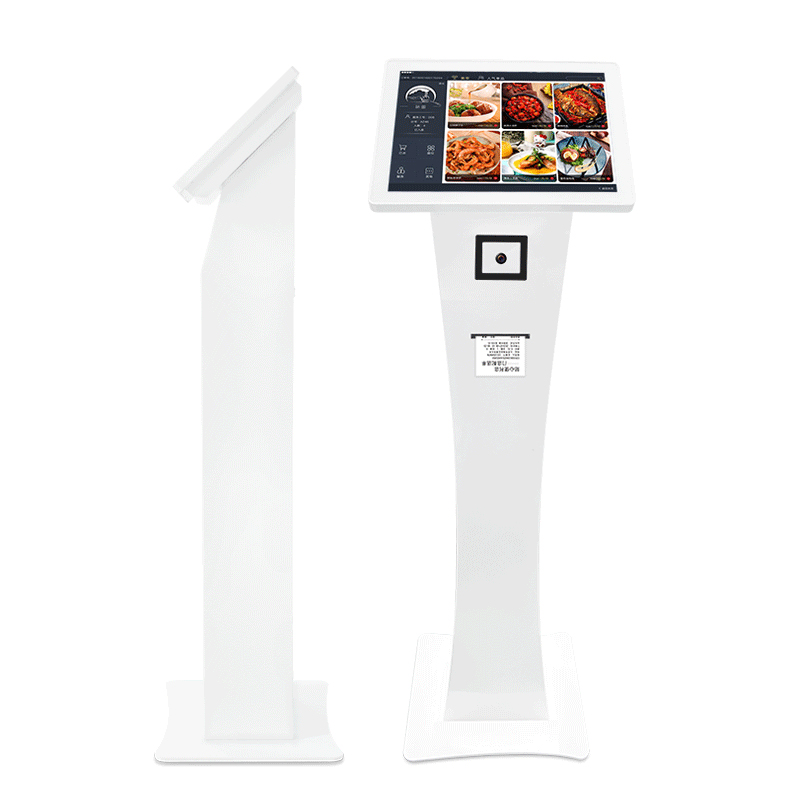

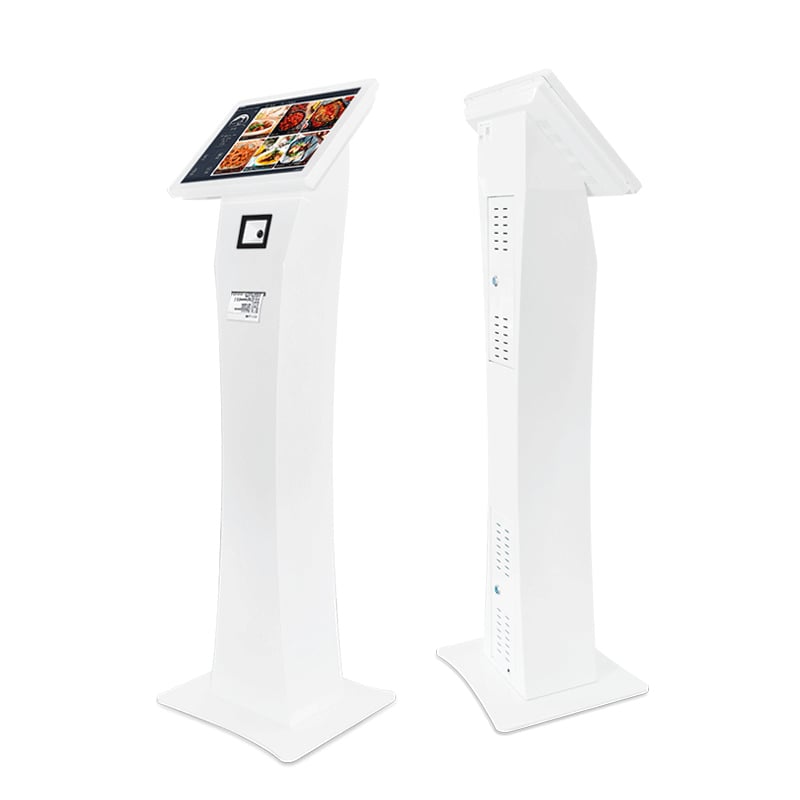

15.6 Inch Industrial-Grade Touch Query Kiosk TQK-156 - 10-Point Capacitive Touch, Intel I3/I5/I7/Android 3568A for Self-Service Scenarios
•Alternative Names: Touch Information Kiosk, Interactive Query Terminal, Self-Service Touch Machine, Digital Signage Kiosk, Smart Inquiry Kiosk
•Main Uses: Information Inquiry, Online Payment, Wayfinding Navigation, Advertising Display, Ticket Booking, Document Printing, Membership Registration, Queue Management
•Core Specifications: 15.6" IPS Full HD (1920x1080), 10-Point Capacitive Touch (＜5ms Response), Intel I3/I5/I7/Android 3568A, 4GB-16GB RAM, 64GB-256GB Storage, IP54 Protection, 24/7 Operation
- Overview
- Recommended Products
Product General Information：
| Place of Origin | China |
| Brand Name | AWSTOUCH |
| Model Number | K15-KAD03 |
| Certification | CE, FCC, RoHS, ISO9001 |
Description：
The 15.6 Inch Industrial-Grade Touch Query Kiosk K15-KAD03 is a high-reliability interactive terminal tailored for public and commercial self-service scenarios. Its 15.6-inch IPS LCD panel features 1920x1080 Full HD resolution, 500cd/m² adjustable brightness, 1500:1 static contrast ratio, and 95% sRGB color gamut, delivering sharp, true-to-life visuals with 178° wide viewing angles—ensuring readability even in direct sunlight or dim environments. The 4mm tempered glass touch panel (hardness ≥7H) adopts 10-point capacitive multi-touch technology, offering ±2mm touch accuracy, ＜5ms response time, and a click life of ≥50 million times, supporting smooth gestures like tap, swipe, zoom, and drag for long-term stable use.
Constructed with 1.2mm thick cold-rolled steel (powder-coated finish, anti-corrosion/anti-scratch) and a reinforced internal steel frame, the kiosk achieves IP54 dustproof and splash-proof protection, adapting to high-traffic areas such as malls, hospitals, and transportation hubs. It offers dual processor options: Intel Core I3/I5/I7 series (compatible with Windows 10 Pro) for powerful multitasking, and Rockchip RK3568A (Android 11) for stable, energy-efficient operation, compatible with third-party software (payment systems, queue management tools) and customizable with add-ons (2MP/5MP camera, IC/ID card reader, 80mm thermal printer, 2×5W speakers). Equipped with 4GB/8GB/16GB RAM and 64GB/128GB/256GB storage (NVMe SSD for Intel version, eMMC for Android version) plus 128GB Micro SD expansion slot, it enables fast data access and smooth operation. With a 100-240V universal power adapter, ≤60W typical power consumption, and silent cooling system (noise ≤35dB), it supports 24/7 continuous operation while minimizing energy costs and noise interference.
The kiosk offers flexible installation methods (floor-standing, wall-mounted, desktop) and a sleek, compact design (380mm×280mm×1200mm standard size, customizable), seamlessly integrating with various decors. It streamlines service processes, reduces labor dependency, and provides users with efficient, intuitive self-service experiences—ideal for intelligent upgrades in retail, healthcare, finance, education, government, and transportation sectors.
Applications：
•Malls & Supermarkets: Store location inquiry, promotion display, membership registration, coupon printing, parking payment
•Hospitals & Clinics: Online registration, appointment booking, medical record inquiry, bill payment, report printing, queue number taking
•Banks & Financial Institutions: Account balance inquiry, bill payment, credit card application, financial product display, self-service card issuance
•Schools & Universities: Campus navigation, course schedule inquiry, score query, library book search, tuition payment
•Airports & Railway Stations: Ticket booking, flight/train status inquiry, wayfinding, luggage storage inquiry, hotel reservation
•Government Service Centers: Policy inquiry, document processing guidance, form printing, certificate application status check
•Restaurants & Catering: Digital menu browsing, order placement, online payment, customer feedback collection
•Office Buildings: Visitor registration, floor directory, meeting room booking, employee check-in
Specifications：
| Item | Specification |
| Screen Size | 15.6 Inch (Diagonal) |
| Screen Type | IPS LCD Panel (178° Horizontal/Vertical Wide Viewing Angle) |
| Resolution | 1920×1080 Pixels (Full HD) |
| Brightness | 500cd/m² (Adjustable 0-100%) |
| Contrast Ratio | 1500:1 (Static) |
| Color Gamut | 95% sRGB (Typical) |
| Response Time | 8ms (Gray-to-Gray) |
| Backlight Type | LED (Longevity ≥50,000 Hours) |
| Touch Technology | 10-Point Capacitive Multi-Touch |
| Touch Panel | 4mm Tempered Glass (Hardness ≥7H, Anti-Scratch, Anti-Fingerprint Coating) |
| Touch Response Time | ＜5ms |
| Touch Accuracy | ±2mm |
| Click Life | ≥50,000,000 Times |
| Operating System | Windows 10 Pro (For Intel Version), Android 11 (For RK3568A Version); Pre-Installed |
| Processor Option 1 (Intel Series) | - Intel Core I3-10105 (4 Cores 8 Threads, Base Frequency 3.7GHz, Turbo Frequency 4.4GHz, 6MB Cache) - Intel Core I5-10400 (6 Cores 12 Threads, Base Frequency 2.9GHz, Turbo Frequency 4.3GHz, 12MB Cache) - Intel Core I7-10700 (8 Cores 16 Threads, Base Frequency 2.9GHz, Turbo Frequency 4.8GHz, 16MB Cache) |
| Processor Option 2 (Android Series) | Rockchip RK3568A (4 Cores Cortex-A55, Base Frequency 1.8GHz, Turbo Frequency 2.0GHz, Mali-G52 2EE GPU) |
| Memory (RAM) | - Intel Version: 8GB DDR4 2666MHz (Standard); 16GB DDR4 2666MHz (Optional) - Android Version: 4GB LPDDR4X 2133MHz (Standard); 8GB LPDDR4X 2133MHz (Optional) |
| Storage | "- Intel Version: 128GB NVMe SSD (Standard); 256GB NVMe SSD (Optional) - Android Version: 64GB eMMC 5.1 (Standard); 128GB eMMC 5.1 (Optional)" |
| Storage Expansion | Micro SD Card Slot (Supports Up to 128GB) |
| Shell Material | 1.2mm Cold-Rolled Steel (Powder-Coated Finish, Black/White Optional) |
| Internal Structure | Reinforced Steel Frame (Shockproof & Anti-Deformation) |
| Protection Level | IP54 (Dustproof & Splash-Proof) |
| Power Supply | 12V/5A DC Power Adapter (Input: 100-240V AC, 50/60Hz, Universal Voltage) |
| Power Consumption | Standby: ≤5W; Operating (Typical): ≤60W; Max: ≤80W |
| Cooling System | Silent Brushless Fan (Noise ≤35dB) + Aluminum Heat Sink (Efficient Heat Dissipation) |
| Working Temperature | 0℃ - 40℃ (Ambient) |
| Storage Temperature | -20℃ - 60℃ (Ambient) |
| Relative Humidity | 10% - 80% RH (Non-Condensing) |
| Atmospheric Pressure | 86kPa - 106kPa |
| Dimensions (L×W×H) | 380mm×280mm×1200mm (Standard Floor-Standing); Customizable for Wall-Mounted/Desktop |
| Net Weight | Approx. 8kg (Standard); 10kg (With Printer/Camera Add-Ons) |
| Gross Weight | Approx. 12kg (In Packaging) |
| Interfaces | USB 3.0×2, USB 2.0×2, HDMI 2.0×1, Ethernet (RJ45)×1 (10/100/1000Mbps), Audio Out (3.5mm Jack)×1, Microphone In×1, Power Jack×1 |
| Wireless Connectivity | Wi-Fi 6 (802.11ax, Dual-Band 2.4GHz/5GHz), Bluetooth 5.0 (BLE Compatible) |
| Audio | Built-in 2×5W High-Fidelity Speakers (Frequency Response: 80Hz-20kHz) |
| Optional Add-Ons | 2MP/5MP Front Camera, IC/ID Card Reader (13.56MHz), Magnetic Stripe Reader (Track 1/2/3), 80mm Thermal Printer (Print Speed 150mm/s), NFC Module |
| Installation Type | Floor-Standing (With Adjustable Base), Wall-Mounted (VESA 100×100mm), Desktop (With Stand); Customizable |
| Certifications | CE, FCC, RoHS, ISO9001, IP54 Rating |
| Warranty | 1 Year (Extended Warranty Available Up to 3 Years) |
Competitive Advantage：
•Dual high-performance processors: Intel I3/I5/I7 for powerful multitasking, Android RK3568A for stable energy-saving operation, meeting diverse scenario needs
•High-performance display: 500cd/m² brightness + 95% sRGB gamut ensures clear visibility in all lighting conditions
•Durable touch experience: ±2mm accuracy, 50M click life, and 7H tempered glass guarantee long-term reliability
•Industrial-grade build: 1.2mm steel shell + IP54 protection resists dust, scratches, and splashes in high-traffic areas
•Flexible storage & expansion: Upgradable RAM/storage + multiple add-ons (camera, printer) fit personalized demands
•Energy-saving & quiet: ≤60W power consumption + ≤35dB noise for cost-effective and comfortable operation
•Global compatibility: Universal voltage (100-240V) and wide operating temperature range enable global deployment
•Reliable after-sales: Comprehensive certifications and 1-3 year warranty ensure product quality and support
Tag：
15.6 Inch Touch Kiosk, Interactive Query Terminal, Intel I3/I5/I7 Touch Kiosk, Android 3568A Kiosk, Self-Service Touch Machine, Full HD IPS Kiosk, IP54 Protection Kiosk, Windows/Android Touch Terminal, Industrial-Grade Self-Service Device
