65'' Outdoor IP65 water proof Digital Signage
1. Alternative Names of the Product
- Outdoor Digital Signage
- Outdoor LCD Kiosk
- Weatherproof Advertising Display
- Outdoor LED Billboard (for LED-based models)
- Outdoor Interactive Advertising Terminal

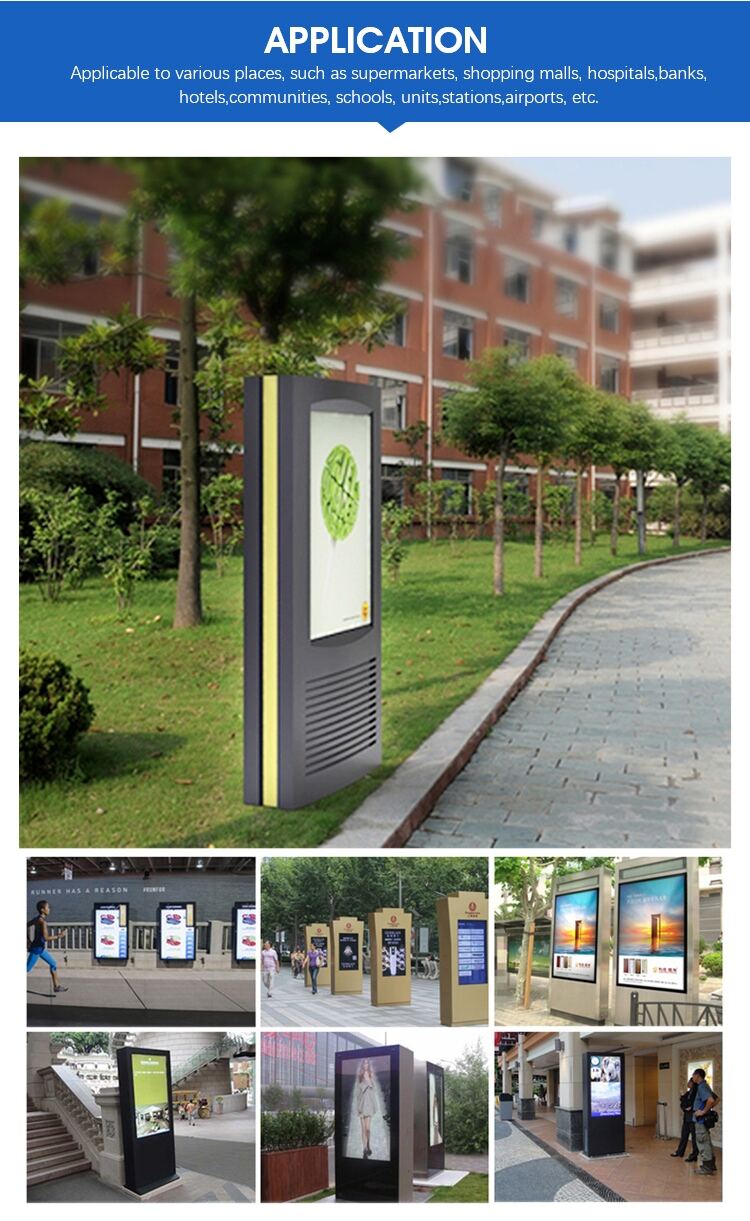

2. Main Applications
- Commercial Retail Areas: Shopping malls, pedestrian streets, and storefronts to display promotions, product information, and brand stories, attracting pedestrian attention.
- Transportation Hubs: Airports, railway stations, bus stops, and subway exits for real-time public notices, route information, and targeted advertising (e.g., travel, catering).
- Public Spaces: Parks, squares, and residential communities to deliver public welfare announcements, local service information, and community activity promotions.
- Highway & Gas Stations: Provide driving tips, fuel price updates, and advertising for automotive-related products, restaurants, or hotels.
- Brand Promotion Events: Temporary outdoor events, exhibitions, or product launches to showcase brand images and interactive content, enhancing on-site engagement.
- Overview
- Recommended Products
Description:

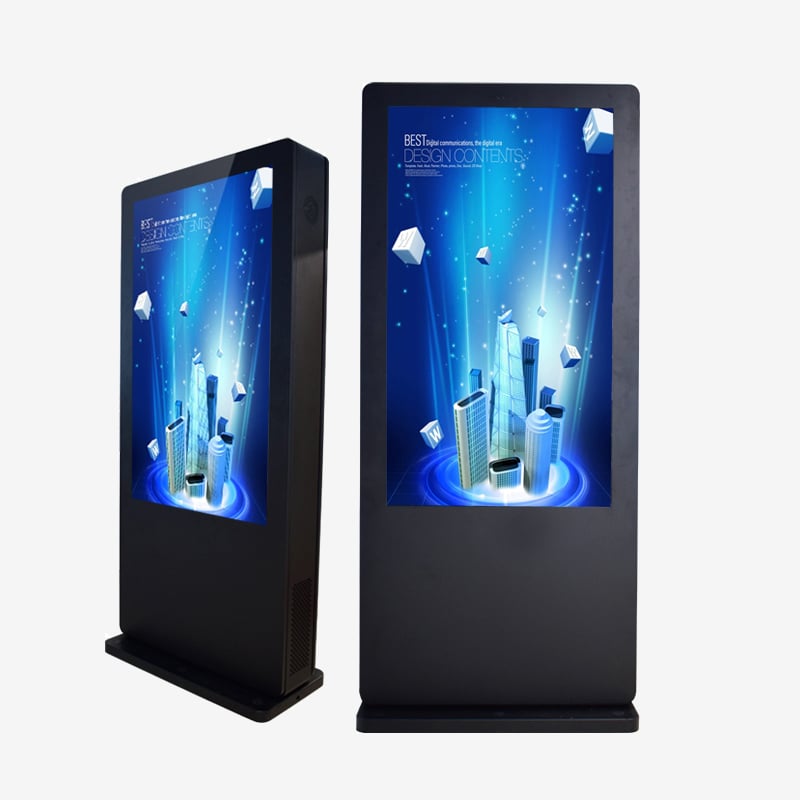

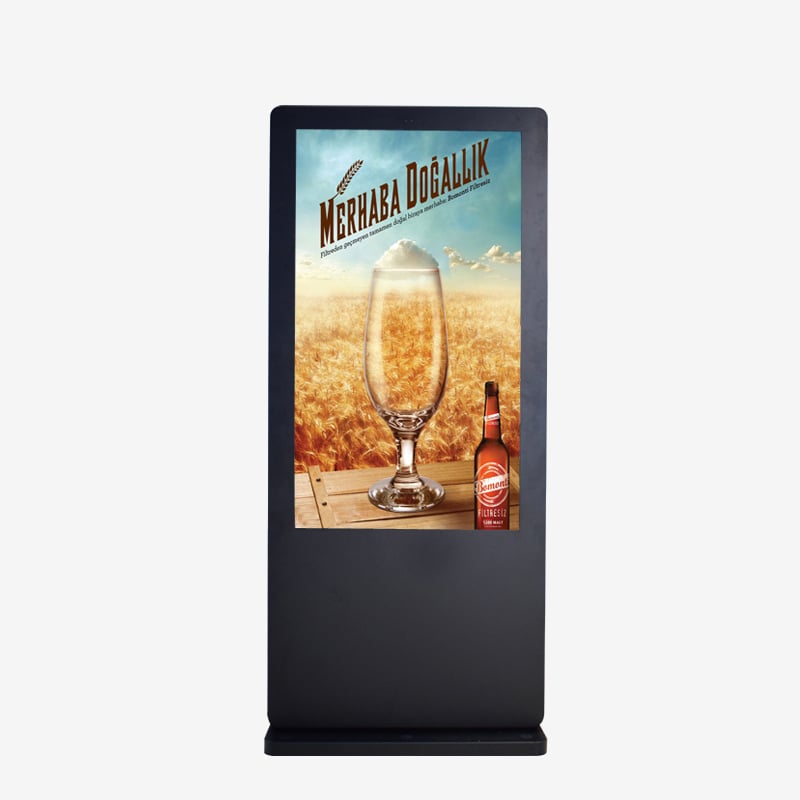

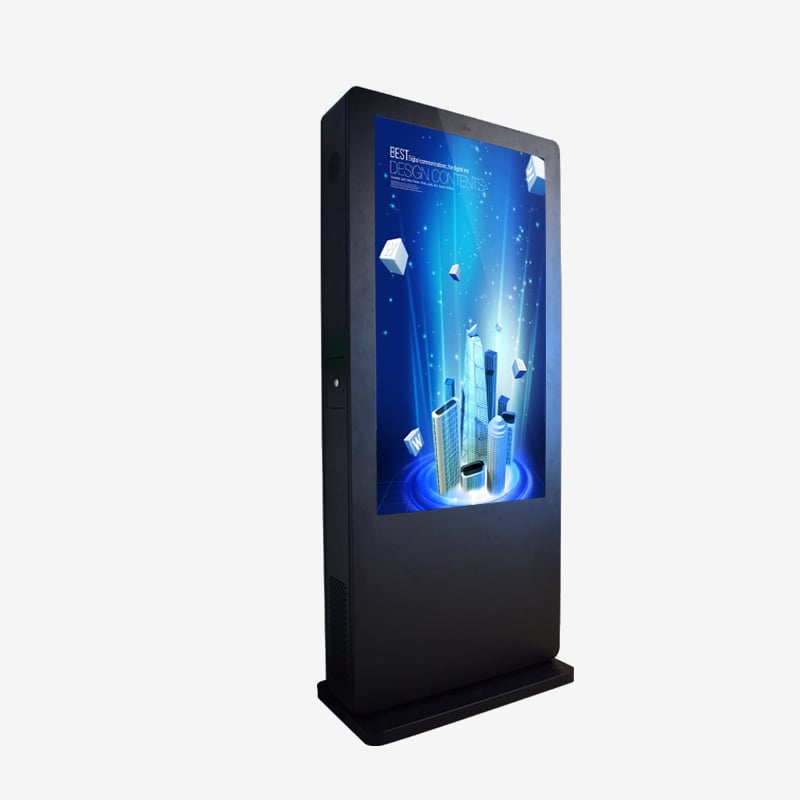

65-Inch Weatherproof Outdoor Digital Signage: Features and Applications
In the era of outdoor advertising and public information dissemination, the 65-inch weatherproof outdoor digital signage emerges as a robust and versatile solution, designed to withstand harsh environmental conditions while delivering striking visual content. Its combination of durable construction, high-performance display, and intelligent management makes it an indispensable tool for businesses and public sectors aiming to capture attention and convey information effectively.

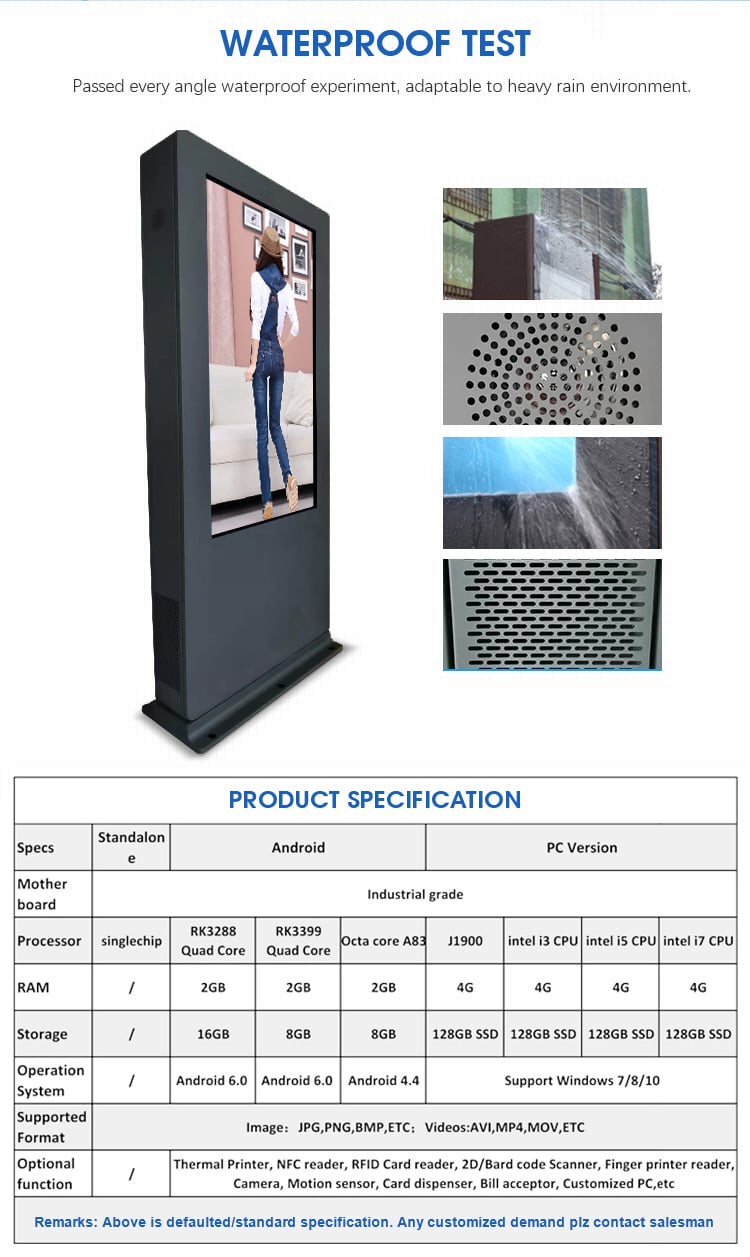

At the core of its reliability is its exceptional weather resistance and display clarity. Boasting a high brightness range of 1500 to 3000 nits, the signage cuts through direct sunlight, glare, and harsh ambient light—common challenges in outdoor settings—to ensure content remains vivid and readable from a distance, even during midday hours. Complementing this is its IP65 or IP66 protection rating, a benchmark for outdoor durability: these ratings mean the device is fully sealed against dust ingress and can withstand powerful water jets, heavy rain, and even occasional splashes from all directions, making it suitable for exposed locations like street corners, parking lots, and open-air plazas.

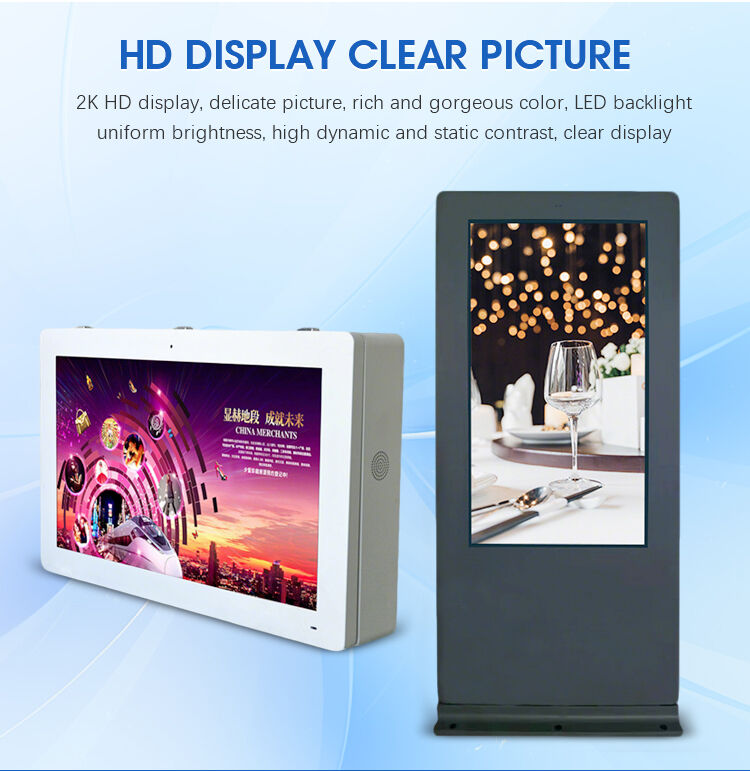

Visual quality is further enhanced by its FHD or 4K resolution. Whether showcasing high-definition product images for retail promotions or crisp real-time data like flight schedules, the signage delivers sharp details and vibrant colors that stand out in busy outdoor environments. The 65-inch size strikes an ideal balance—large enough to attract passersby without being overly cumbersome, ensuring it fits seamlessly into diverse spaces while maintaining impact.

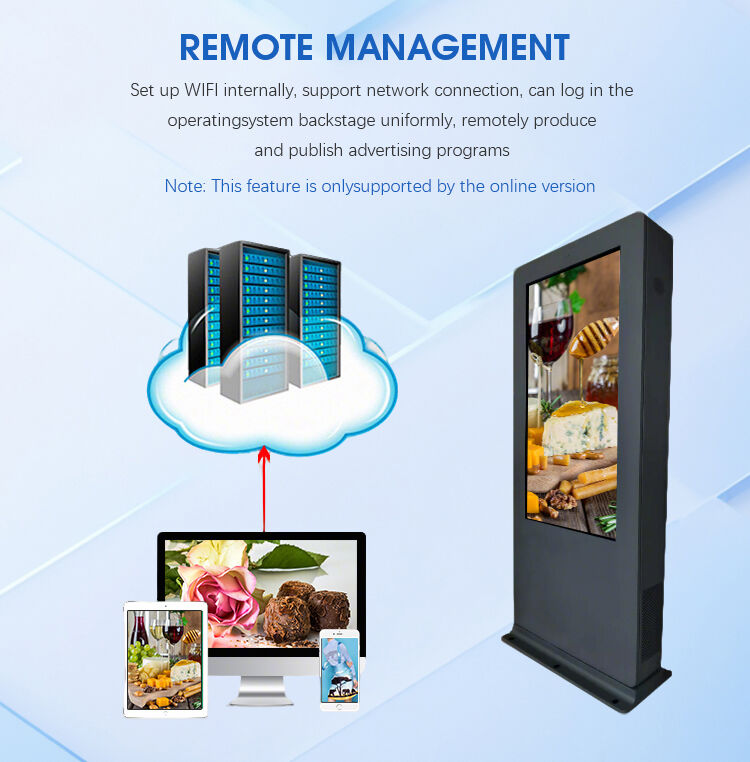

Intelligent cloud management elevates its operational efficiency, addressing a key pain point of traditional outdoor signage: remote content control. Through a centralized cloud platform, administrators can update, schedule, and adjust content across multiple devices in real time, eliminating the need for on-site visits. This feature is invaluable for retail chains managing promotions across multiple storefronts, or transport hubs updating train delays or gate changes instantly. It also allows for targeted content—for example, a café near a bus stop can switch from morning coffee ads to afternoon snack promotions with a few clicks, maximizing relevance and engagement.

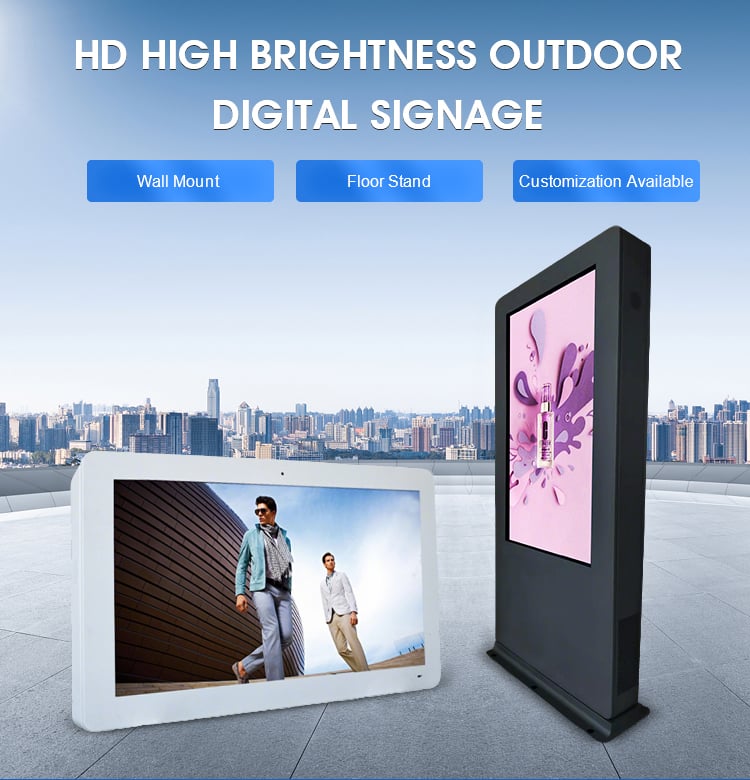

Flexibility in installation adds to its adaptability, with support for wall-mounted, floor-standing, and column-mounted setups. Retailers can mount it above store entrances to highlight seasonal sales; transport hubs can install floor-standing units in waiting areas for travel updates; and public spaces can attach column-mounted signage to lamp posts for community announcements. This versatility ensures the signage integrates with existing infrastructure without major modifications.
Ideal for retail, transport hubs, and public spaces, this signage transforms outdoor areas into dynamic communication channels. It delivers eye-catching ads that drive foot traffic, real-time info that enhances public convenience, and a durable design that ensures long-term performance—making it a cost-effective investment for any organization looking to engage audiences outdoors.
Applications:
Retail & Commercial Zones，Transportation Hubs，Public Spaces，Highways & Gas Stations，Brand Events & Exhibitions
Specifications:
| 65'' Outdoor IP65 water proof Digital Signage | |
| Specification | |
| Model | A65-OFS01 |
| Screen Size | 65inch |
| Active Display Area (mm) | 1428.49mm(W)×803.52mm(H) |
| Display Mode | 16:09 |
| LCD Type | TFT-LCD |
| Resolution | 1920×1080 |
| Display Color | 16.7M |
| Brightness(nits) | 1500nits~2500nits supported |
| Brightness Control | Automatic light sensor system |
| Contrast Ratio | 1400:01:00 |

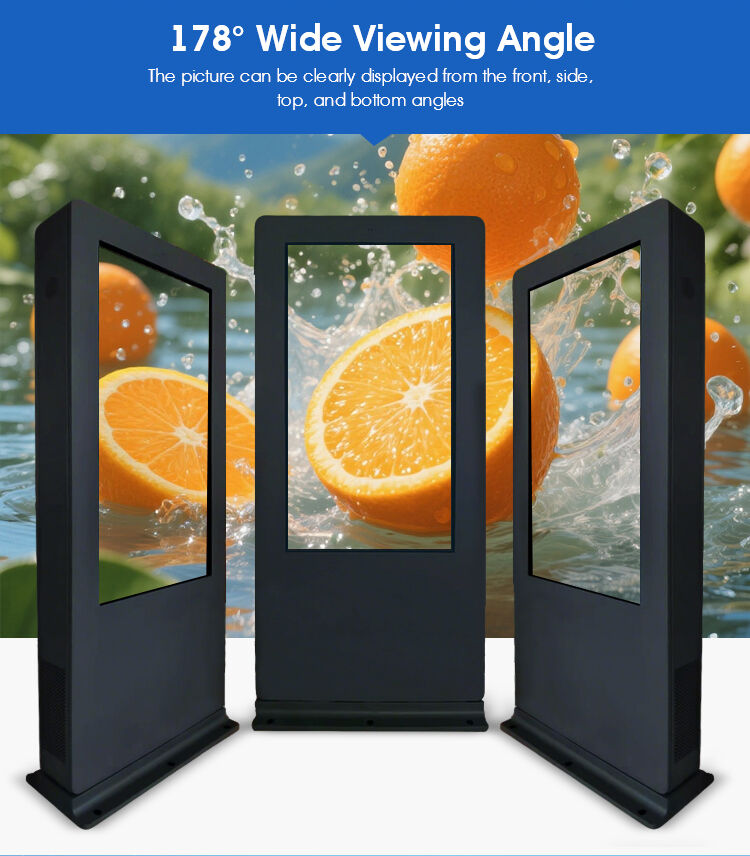

| Viewing Angle | 178(H) /178(V) |
| Response Time | 8ms |
| Backlight | LED backlight |
| Touch screen (optional) | |
| Touch type | PCAP/TOUCH FOIL |
| Touch Max Resolution | 1920*1080 |
| Transparency | 90%, Up to 100% |
| Scanning Speed | 50Scans/S |
| Response Speed | <12ms |
| Touch precision | 0.625mm |
| Minimum Touch | 10 points |
| Operation Parameters | |
| Operation Syst | Windows/android/linux |
| Working humidity | 5% to 95% |
| Storage humidity | 10%~90%(noncondense) |
| Temperature Control System | Intelligent fans cooling / Air Conditioner optional |
| Power Supply | AC 110V-240V, 50HZ/60HZ |
| Power consumption | 500W |
| Main Function | Playing file automatically |
| With USB update | |
| Support HD video, pictures and music | |

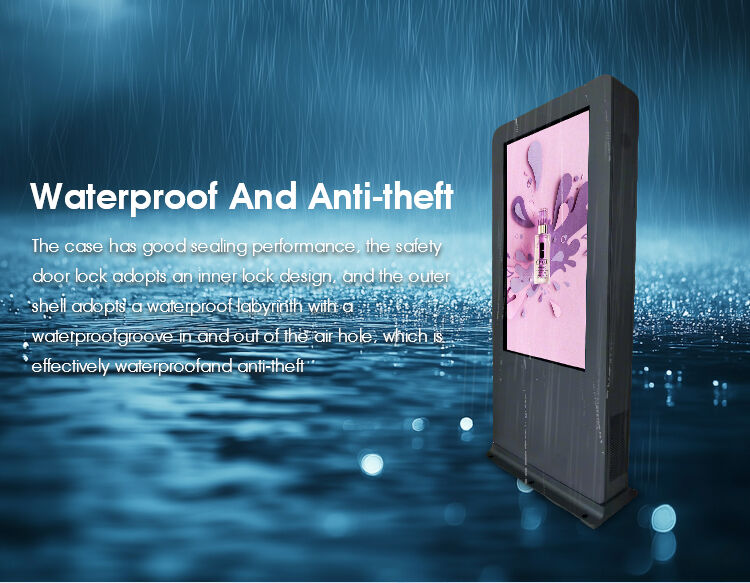

| Security and password protection, anti-thief design | |

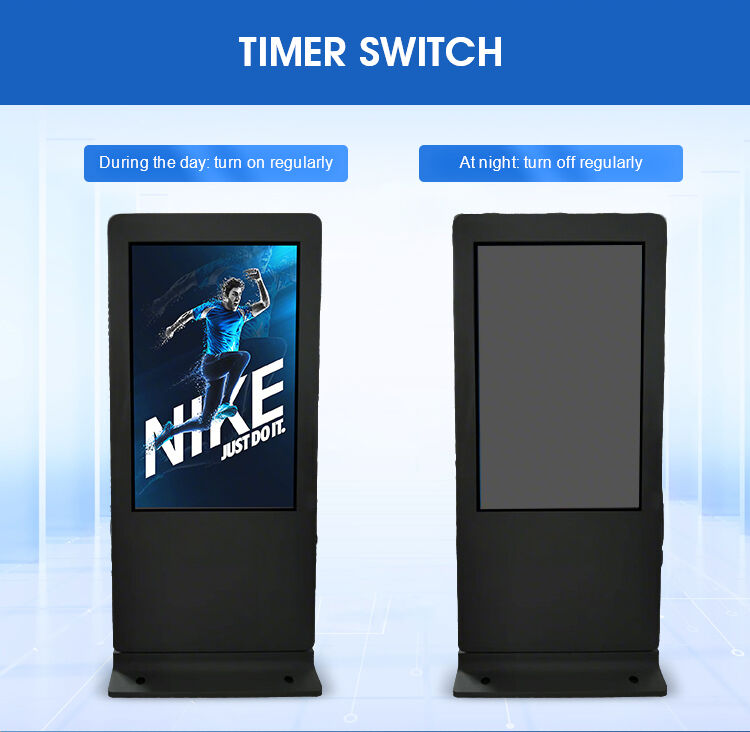

| Set up time on/off | |
| Support Remote controller | |
| Support Safety lock system | |
| Smart control system | Indsutrial grade power switch |
| Water proof speaker 10W*2 | |
| Three-grade lightning protection | |
| leakage protector | |
| Timer | |

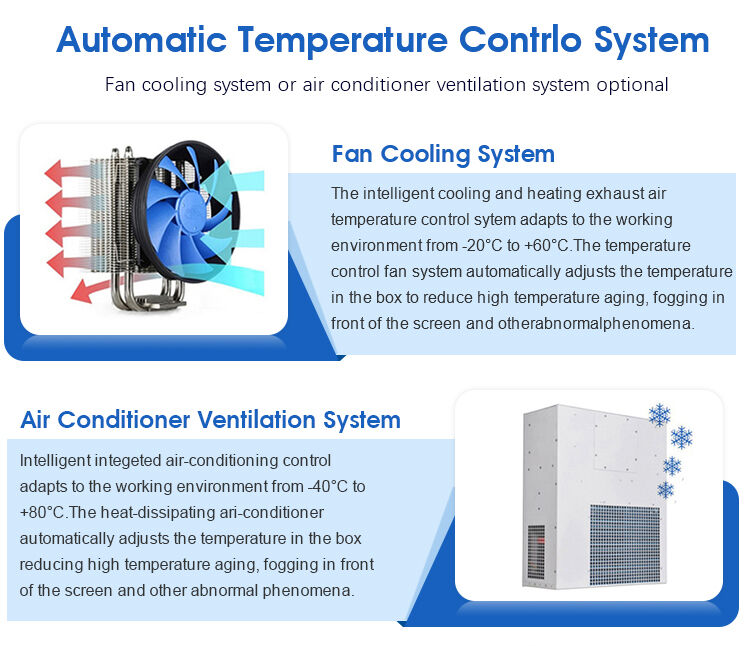

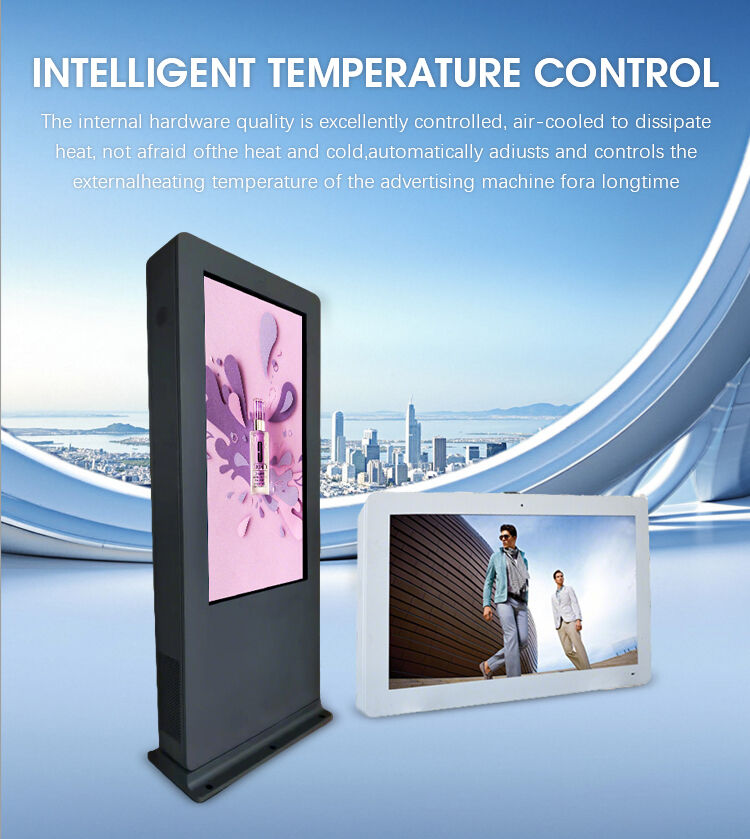

| Cooling & heating system | Intelligent cooling system, unique design of the duct and the main board, automatic control of air speed and volume |
| Intelligent temperature control system, high temperature up to 55 degrees automatically turn off the display | |
| Low temperature up to -5 degrees will auto-starting heating system | |
| Temperature | Storage:-45 Celsius degree to 60 Celsius degree |
| Working: -40 Celsius degree to 55 Celsius degree | |
| Fixing Method | Floor standing |
| Waterproof Enclosure | IP65 |
| Color | Black color/ white color/ Gray color optional |

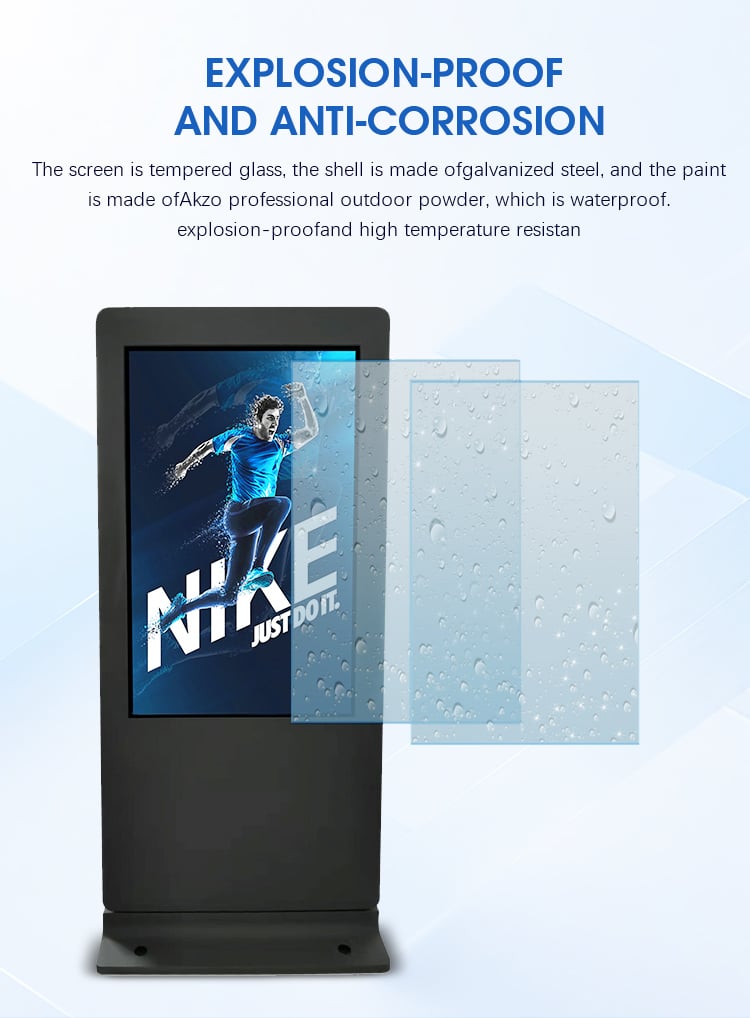

| Protection Glass | 6mm Tempered glass(anti-glare can be added if required) |
| Applicable field | Outdoor public places, Supermarket, Hotel, Mall center, Shop, Commercial buildings etc. |

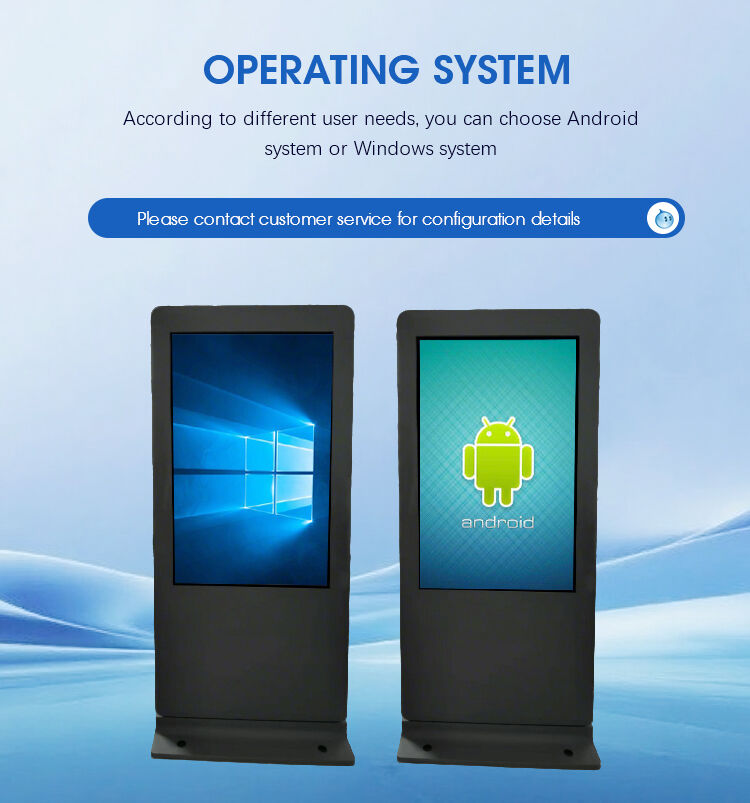

| Available operating systems | |
| Standalone version (no system) | 1*USB |
| 1*SD | |
| 1*HDMI | |
| Android version | Quad Core, RK3288 chipset, 2G/4G RAM+16G/32G ROM,android 7.1 |
| wifi, WLAN, Bluetooth supported, 1.8GHz | |
| I/O：HDMI+USB OTG+USB HOST+LAN+AUDIO+SD | |
| Hexa Core, RK3399 chipset, 4G RAM+32G ROM,android 7.1; | |
| wifi, WLAN, Bluetooth supported, 1.8GHz | |
| I/O：HDMI+USB 3.0+USB 3.0/ADB+LAN+AUDIO+TF+SIM+DC12V | |
| Quad Core,RK3568 chipset, 2G/4G RAM+16G/32G ROM,android 11.0 | |
| wifi,WLANI, 4.0 LAN, Bluetooth Supported, 2.0GHz | |
|
I/O：HDMI+USB OTG+USB 3.0+LAN+AUDIO+TF+SIM+DCIN+OTG | |
| Windows version | I3 CPU,4G RAM,128G SSD, integrated GPU, wifi, RJ45 supported, win10 Pro trial os |
| Dual core，frequency 2.4GHZ, DDR3 | |
| I/O：DC12V+HDMI+VGA+2*USB3.0+2*USB2.0+LAN+2*AUDIO | |
| I5 CPU,8G RAM,128G SSD, integrated GPU, wifi, RJ45 supported, win10 Pro trial os | |
| Dual core，frequency 2.5Ghz，turbo 3.1Ghz DDR3 | |
| I/O：DC12V+HDMI+VGA+2*USB3.0+2*USB2.0+LAN+2*AUDIO | |
| I7 CPU,8G RAM,256G SSD, integrated GPU, wifi, RJ45 supported, win10 Pro trial os | |
| Dual core，frequency 2.9ghz，turbo 3.6Ghz DDR3 | |
| I/O：DC12V+HDMI+VGA+2*USB3.0+2*USB2.0+LAN+2*AUDIO | |
Competitive Advantage:
Superior Environmental Adaptability: IP65/IP66 waterproof/dustproof rating, -20℃~60℃ operating temperature range, and anti-glare coating—resisting harsh outdoor conditions.
High-Visibility Display: 1500-3000 nits high brightness (beats sunlight glare) and FHD/4K resolution, ensuring clear, eye-catching content day and night.
Efficient Remote Management: Cloud-based control for real-time content updates, device monitoring, and troubleshooting—no on-site operation needed.
Flexible Installation & Durability: Supports wall/floor/column mounting; rugged casing and industrial-grade hardware for long-term outdoor use.
Energy-Saving & Cost-Effective: Low-power consumption design; reduces manual maintenance costs vs. traditional billboards.
Optional Interactive Function: 10-point capacitive touch (available) enables user engagement, ideal for promotional activities and interactive ads.
