Product Title (Name): 21.5'' FHD Industrial-Grade Indoor Wall Mount Digital Signage with Multi-OS Support
- Overview
- Recommended Products
1.Product General Information
| Place of Origin | CHINA |
| Brand Name | AWSTOUCH |
| Model Number | A21-IPB01 |
| Certification | CE,RoSH |
2.Product Introduction
Quick Detail:
1. Alternative Names of the Product
•Indoor Wall Mount Digital Signage
•Compact Advertising Display
•Indoor LCD Signage
•Desktop Wall-Mounted Terminal
•Multi-Format Media Display
2. Main Applications
•Retail Stores: Showcase product promotions, discounts, and new arrivals at store entrances or product shelves to attract customer attention.
•Offices & Corporate Spaces: Display company culture, internal announcements, and meeting schedules in lobbies or corridors for employees and visitors.
•Hotels & Hospitality: Provide room information, service guides, local travel recommendations, and event notices for hotel guests.
•Financial Institutions: Share financial news, service introductions, queue status, and safety tips in bank lobbies.
•Educational Institutions: Display campus notices, course schedules, activity promotions, and educational content in school hallways or classrooms.
Description:
The 21.5'' Wall Mount Display is a sleek, high-definition indoor digital signage tailored for commercial and public indoor environments. Equipped with 1920×1080 (FHD) resolution and 350nits brightness, it delivers sharp, detailed visuals that effectively capture audience attention even from a distance. Built with industrial-grade components, this display ensures stable 24/7 operation, fully meeting the continuous working demands of retail, corporate, hospitality, and educational settings. It provides flexible operating system choices (Standalone/Android/Windows) to accommodate diverse functional needs and budget plans, supporting seamless playback of multiple media formats such as JPG, PNG, BMP images, and AVI, MP4, MOV videos. Its wall-mount design enhances space efficiency, saving valuable floor and counter space while enabling hassle-free installation. Featured with user-centric functions including automatic file looping, USB content updating, scheduled on/off, and remote control, it simplifies content management and daily upkeep. Moreover, abundant optional modules (Thermal Printer, NFC Reader, 2D Barcode Scanner, etc.) allow customized configurations to fit various business scenarios, making it a versatile solution for advertising and information dissemination in indoor venues.
Applications:
Retail Stores，Offices & Corporate Spaces，Hotels & Hospitality，Financial Institutions，Educational Institutions
Specifications:
21.5 Wall Mount Display |
21.5 Wall Mount Display |
Specification |
Specification |
Model |
A21-IPB01 |
Screen Size |
21.5 inch |
Active Display Area (mm) |
476.64mm(W)×268.11mm(H) |
Display Mode |
16:9 |
LCD Type |
TFT-LCD |
Resolution |
1920×1080 |
Display Color |
16.7M |
Brightness (nits) |
350nits |
Brightness Control |
Manual/Automatic optional |
Contrast Ratio |
1200:1 |
Viewing Angle |
178°(H) / 178°(V) |
Response Time |
5ms |
Backlight |
LED backlight |
Touch type |
Capacitive touch |
Transparency |
90% |
Scanning Speed |
40Scans/S |
Response Speed |
<10ms |
Touch precision |
1920×1080 |
Minimum Touch |
5 points (optional) |
Operation Parameters |
Operation Parameters |
Operating System |
Standalone (no system) / Android 11.0 / Android 12.0 / Windows 10/11 |
Working Humidity |
10% to 85% (non-condensing) |
Storage Humidity |
5% to 90% (non-condensing) |
Temperature Control System |
Natural heat dissipation (industrial-grade heat dissipation structure) |
Power Supply |
AC 100V-240V, 50HZ/60HZ |
Power Consumption |
30W~60W (varies by configuration) |
Main Function |
Playing file automatically |
With USB update | |
Support HD video, pictures and music | |
Set up time on/off | |
Support Remote controller | |
Smart Control System |
Industrial-grade power switch |
Built-in 5W*2 speakers | |
Overload protection | |
Cooling & Heating System |
Natural heat dissipation, optimized heat dissipation structure |
Temperature |
Storage: -20 Celsius degree to 60 Celsius degree |
Working: 0 Celsius degree to 40 Celsius degree | |
Fixing Method |
Wall Mount |
Color |
Black color/white color/gray color optional |
Protection Glass |
4mm Tempered glass |
Applicable Field |
Indoor public places, Retail stores, Offices, Hotels, Banks, Schools, Commercial buildings etc. |
Available Operating Systems |
Available Operating Systems |
Standalone version (no system) |

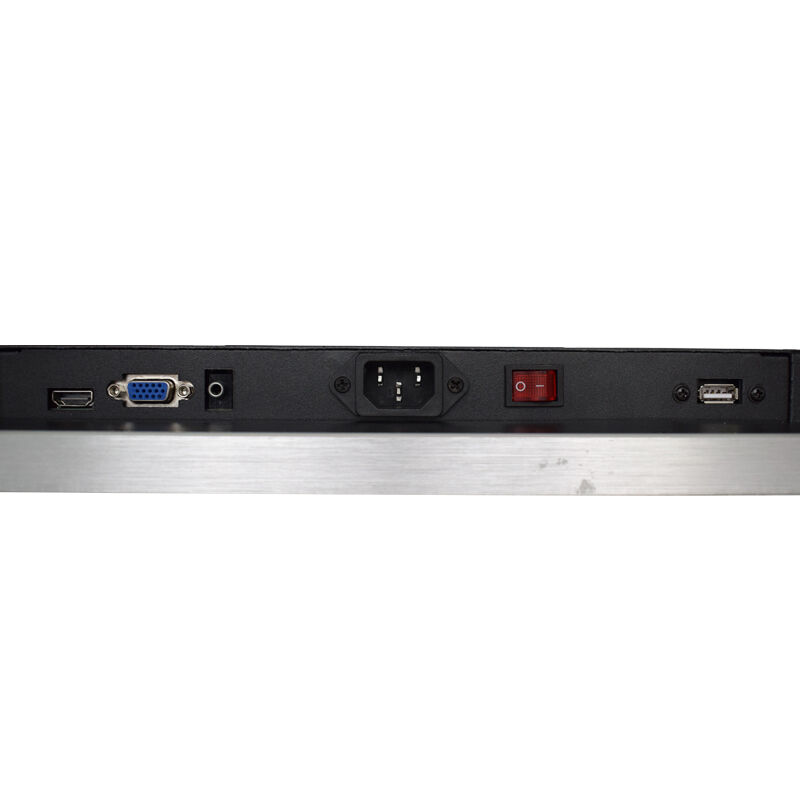

1*USB、1*SD、1*HDMI |
Android version |
RK3568A Quad Core, 4G RAM+32G ROM, Android 11.0，wifi, Bluetooth supported, 2.0GHz，I/O：HDMI+USB OTG+USB HOST+LAN+AUDIO+TF |
RK3399E Hexa Core, 4G RAM+32G ROM, Android 11.0，wifi, Bluetooth supported, 2.0GHz，I/O：HDMI+USB 3.0+LAN+AUDIO+TF+SIM | |
RK3588A Octacore, 8G RAM+64G ROM, Android 12.0，wifi, Bluetooth supported, 2.2GHz，I/O：HDMI+USB 3.0+USB OTG+LAN+AUDIO+TF+SIM | |
Windows version |
Intel i3 CPU, 8G RAM, 128G SSD, integrated GPU, wifi, RJ45 supported, Windows 10/11，I/O：HDMI+VGA+2USB3.0+1USB2.0+LAN+AUDIO |
Intel i5 CPU, 8G RAM, 128G SSD, integrated GPU, wifi, RJ45 supported, Windows 10/11，I/O：HDMI+VGA+2USB3.0+2USB2.0+LAN+AUDIO | |
Intel i7 CPU, 8G RAM, 128G SSD, integrated GPU, wifi, RJ45 supported, Windows 10/11，I/O：HDMI+VGA+2USB3.0+2USB2.0+LAN+AUDIO |
Competitive Advantage:
•Space-Efficient Wall-Mount Design: The 21.5-inch form factor balances display size and space utilization, ideal for both small-medium venues and areas requiring more prominent visual presentation without occupying excessive space.
•Industrial-Grade Stability: Adopts industrial-grade motherboard and hardware components, ensuring reliable 24/7 operation and long service life in high-frequency usage scenarios.
•Versatile Configuration: Multiple processor (Singlechip/RK3568A/RK3399E/RK3588A/Intel i3/i5/i7) and system options meet different performance, functional and budget requirements.
•Rich Expansion Options: Optional Thermal Printer, NFC reader, RFID Card reader, 2D/Bar code Scanner and other modules support personalized customization for diverse business needs.
•User-Friendly Operation: Simple USB content update, remote control, and timer on/off functions reduce manual operation costs; intuitive interface enables quick setup and use.
Tag:
21.5 Wall Mount Display，FHD Indoor Signage，Industrial-Grade Wall Mount Display，Commercial Digital Signage，Multi-OS Media Player
