32'' Indoor FHD Wall Mount Digital Signage - Industrial-Grade Commercial Display with Multi-OS
- Overview
- Recommended Products
Product General Information
| Place of Origin | CHINA |
| Brand Name | AWSTOUCH |
| Model Number | A32-IPB01 |
| Certification | CE,RoSH |
Quick Detail
1. Alternative Names of the Product
•Indoor Wall Mount Signage
•Indoor LCD Advertising Display
•Industrial-Grade Indoor Signage
•Multi-OS Indoor Media Player
•Indoor Commercial Digital Terminal
2. Main Applications
•Commercial Retail Areas: Supermarkets, brand stores, and shopping mall corridors to display promotions, new product launches, and price lists, attracting customer attention.
•Corporate & Office Spaces: Office lobbies, meeting rooms, and corridors to release company announcements, cultural displays, and meeting schedules for employees and visitors.
•Hospitality Venues: Hotel lobbies, restaurant entrances, and service desks to provide room information, catering menus, and local travel guides for guests.
•Educational & Financial Institutions: School hallways, bank lobbies to show campus notices, course schedules, financial news, and queue information.
•Public Service Areas: Community centers, government service halls to deliver public welfare announcements and service guidelines.
Description

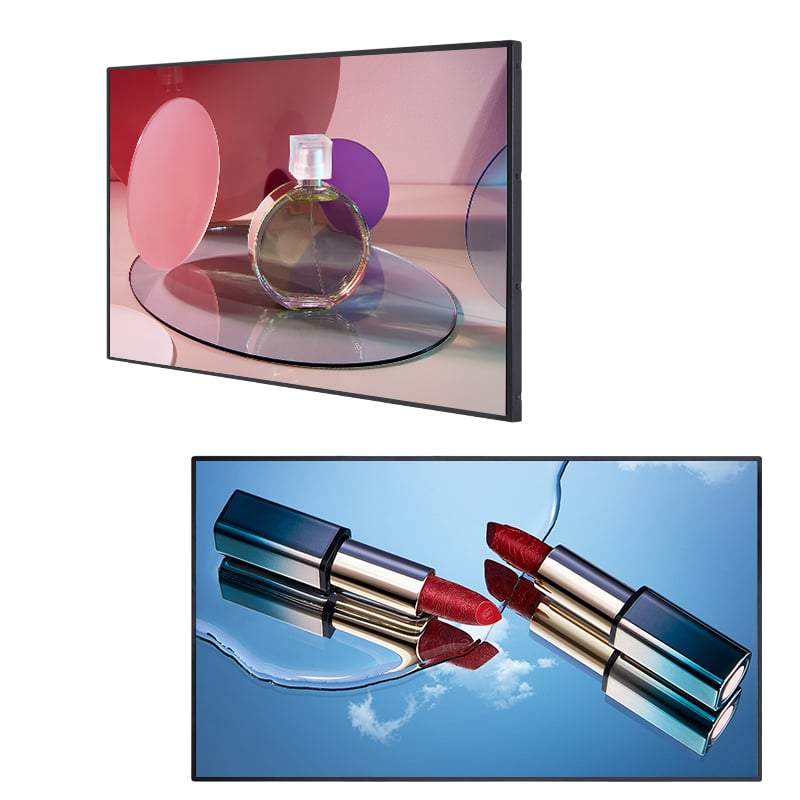

Industrial-grade 32-inch indoor wall mount digital signage with 1920×1080 (FHD) resolution and 450nits brightness, delivering crisp, vivid visuals with excellent color reproduction. Equipped with flexible operating system options (Standalone/Android/Windows), it supports seamless playback of mainstream media formats and enables convenient content updates via USB or remote control. The wall-mount design maximizes space utilization, making it suitable for various indoor commercial scenarios. Built with premium industrial components and optimized natural heat dissipation system, the display supports 24/7 stable operation, adapting to long-term high-intensity working environments. It features user-friendly functions including automatic loop playback, scheduled on/off, password protection, and safety lock system, simplifying daily management and maintenance. Rich optional expansion modules (NFC Reader, 2D Barcode Scanner, etc.) are available for personalized customization, fully meeting the diverse needs of retail, corporate, educational, and financial sectors for advertising and information dissemination.
Applications
Retail Stores & Malls，Corporate & Office Spaces，Hotels & Restaurants，Schools & Banks，Community & Public Service Halls
Specifications
| 32'' Indoor Wall Mount Digital Signage | 32'' Indoor Wall Mount Digital Signage |
| Specification | Specification |
| Model | A32-IPS01 |
| Screen Size | 32 inch |
| Active Display Area (mm) | 697.68mm(W)×392.25mm(H) |
| Display Mode | 16:09 |
| LCD Type | TFT-LCD |
| Resolution | 1920×1080 |
| Display Color | 16.7M |
| Brightness(nits) | 450nits |
| Brightness Control | Manual/Automatic optional |
| Contrast Ratio | 1200:01:00 |
| Viewing Angle | 178(H) /178(V) |
| Response Time | 6ms |
| Backlight | LED backlight |
| Touch screen (optional) | Touch screen (optional) |
| Touch type | PCAP |
| Touch Max Resolution | 1920×1080 |
| Transparency | 90% |
| Scanning Speed | 40Scans/S |
| Response Speed | <10ms |
| Touch precision | 1mm |
| Minimum Touch | 5 points |
| Operation Parameters | Operation Parameters |
| Operation System | Windows/Android/Standalone (no system) |
| Working humidity | 10% to 85% (non-condensing) |
| Storage humidity | 5%~90% (non-condensing) |
| Temperature Control System | Natural heat dissipation (industrial-grade heat dissipation structure) |
| Power Supply | AC 100V-240V, 50HZ/60HZ |
| Power consumption | 80W |
| Main Function | Playing file automatically |
| With USB update | |
| Support HD video, pictures and music | |
| Security and password protection, anti-thief design | |
| Set up time on/off | |
| Support Remote controller | |
| Support Safety lock system | |
| Smart control system | Industrial grade power switch |
| Built-in 5W*2 speakers | |
| Overload protection | |
| Timer | |
| Cooling & heating system | Natural heat dissipation, optimized heat dissipation structure |
| Temperature | Storage:-20 Celsius degree to 60 Celsius degree |
| Working: 0 Celsius degree to 40 Celsius degree | |

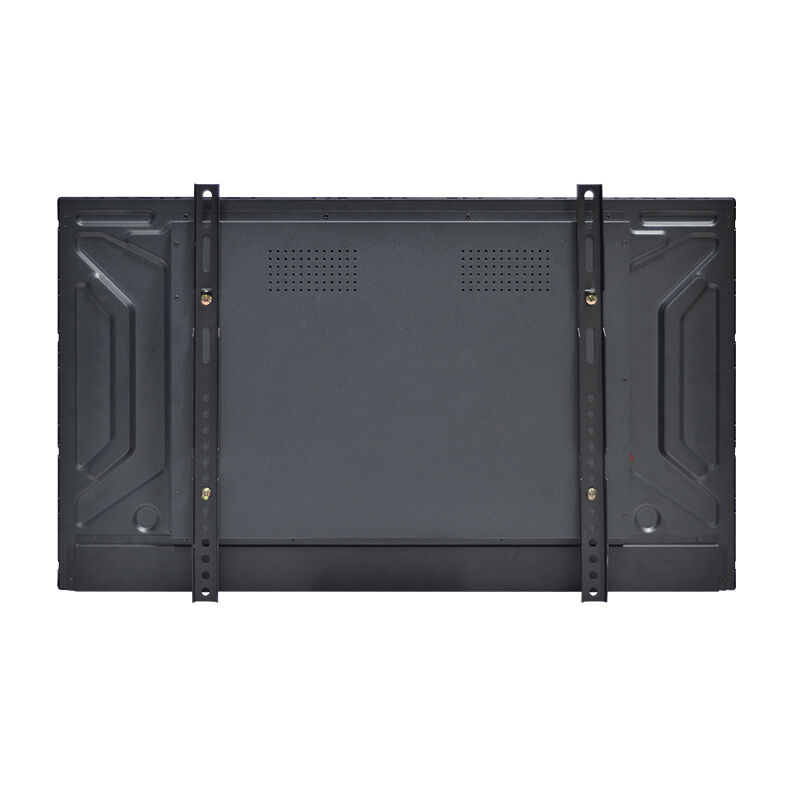

| Fixing Method | Wall Mount |
| Waterproof Enclosure | Indoor dustproof (no IP rating) |
| Color | Black color/ white color/ Gray color optional |
| Protection Glass | 4mm Tempered glass (anti-glare can be added if required) |
| Applicable field | Indoor public places, Supermarket, Hotel, Office, Bank, School, Commercial buildings etc. |
| Available operating systems | Available operating systems |

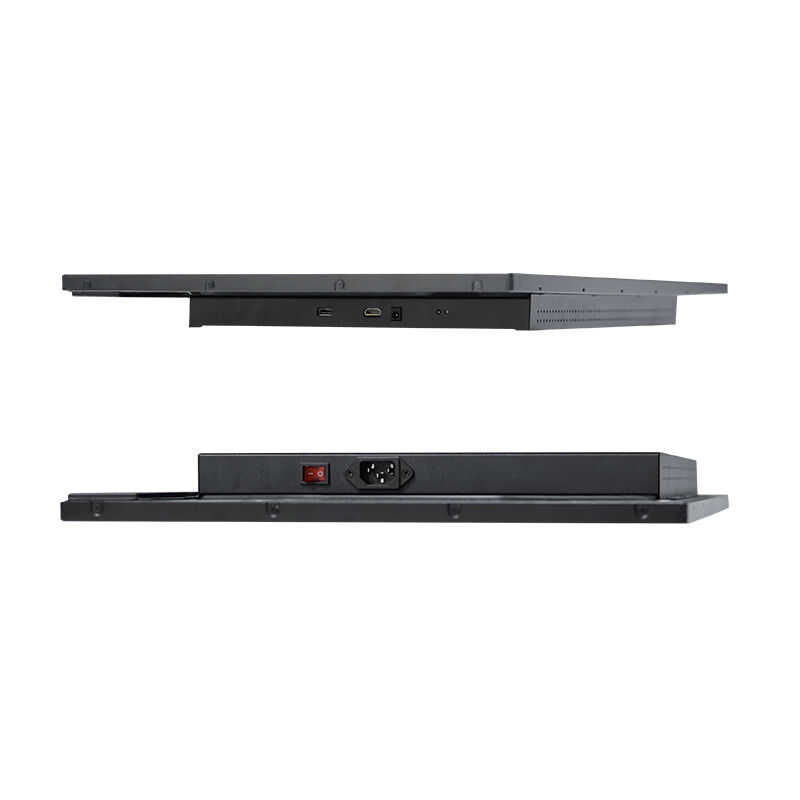

| Standalone version (no system) | 1*USB1*SD1*HDMI |
| Android version | Quad Core, RK3568 chipset, 4G RAM+32G ROM, Android 11.0wifi, Bluetooth supported, 2.0GHzI/O：HDMI+USB OTG+USB 3.0+LAN+AUDIO+TF+SIM |
| Hexa Core, RK3399E chipset, 4G RAM+32G ROM, Android 11.0wifi, Bluetooth supported, 1.8GHzI/O：HDMI+USB 3.0+LAN+AUDIO+TF+SIM | |
| Octa Core, RK3588A chipset, 8G RAM+64G ROM, Android 12.0wifi, Bluetooth supported, 2.2GHzI/O：HDMI+USB 3.0+USB OTG+LAN+AUDIO+TF+SIM | |
| Windows version | I3 CPU,8G RAM,128G SSD, integrated GPU, wifi, RJ45 supported, win10 Pro trial osI/O：HDMI+VGA+2*USB3.0+2*USB2.0+LAN+AUDIO |
| I5 CPU,8G RAM,128G SSD, integrated GPU, wifi, RJ45 supported, win10 Pro trial osI/O：HDMI+VGA+2*USB3.0+2*USB2.0+LAN+AUDIO | |
| I7 CPU,8G RAM,256G SSD, integrated GPU, wifi, RJ45 supported, win10 Pro trial osI/O：HDMI+VGA+2*USB3.0+2*USB2.0+LAN+AUDIO |
Competitive Advantage
Space-Optimized Wall-Mount Design: 32-inch large screen balances visual impact and space efficiency, wall-mount installation saves floor space, ideal for indoor venues with limited area.
Industrial-Grade Stable Performance: Adopts premium industrial components and optimized heat dissipation, supporting 24/7 uninterrupted operation with long service life and low failure rate.
Flexible Multi-OS Configuration: Covers Standalone, Android, and Windows systems with diverse processor options, matching different functional needs and budget plans of customers.
Easy Operation & Maintenance: USB fast content update, remote control, and scheduled on/off functions simplify daily management, reducing manual operation and maintenance costs.
High-Definition Visual Experience: FHD 1920×1080 resolution and 450nits brightness deliver clear, vivid visuals with wide viewing angle, ensuring content visibility from all positions.
Rich Customization Expansion: Optional touch screen, NFC Reader, 2D Barcode Scanner, etc., to meet personalized demands of different indoor application scenarios.
