Product General Information
| Place of Origin | CHINA |
| Brand Name | AWSTOUCH |
| Model Number | A21-FS001 |
| Certification | CE,RoSH |
Quick Detail
1. Alternative Names of the Product
•21.5-inch S-Type Touch Kiosk
•Floor-Standing Interactive Terminal
•Industrial-Grade Touch Query Kiosk
•Multi-OS Interactive Touch Terminal
•Indoor S-Type Touch Inquiry Kiosk
2. Main Applications
•Commercial Lobbies: Shopping malls, office buildings to provide store location inquiry, promotion browsing, and self-service information search for visitors.
•Government & Public Services: Service halls for self-service business inquiry, process guidance, and document verification, reducing manual consultation pressure.
•Hospitality & Healthcare: Hotel lobbies (room booking, service inquiry) and hospitals (registration guidance, department navigation) to enhance service efficiency.
•Educational & Financial Institutions: Campus halls (course inquiry, campus navigation) and bank lobbies (financial product inquiry, queue management) for interactive services.
•Retail & Catering: Brand stores and shopping centers for product details inquiry, membership services, and catering menu browsing with touch interaction.
Description

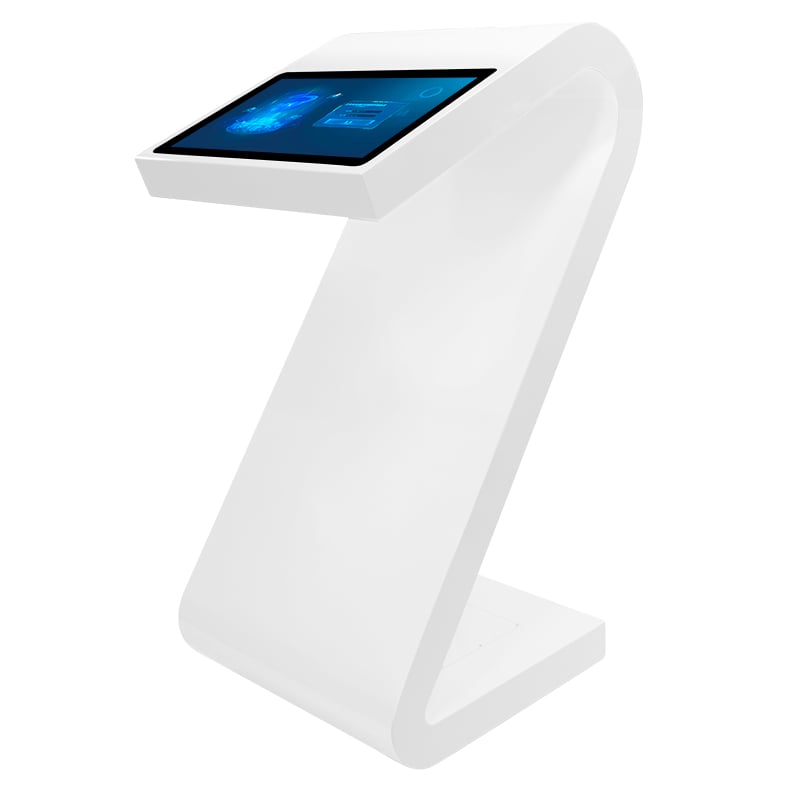

AWSTOUCH 21.5-inch S-Type floor-standing touch kiosk is an industrial-grade interactive terminal tailored for indoor inquiry scenarios. Equipped with 1920×1080 (FHD) resolution and 350nits brightness, paired with standard 5-point capacitive touch screen (PCAP), it delivers precise touch response (<10ms) and clear visuals, ensuring smooth human-machine interaction even in high-traffic indoor environments. The S-type stand features a sleek, space-saving design that combines stability and aesthetics, suitable for various indoor public areas without occupying excessive space. Powered by flexible operating systems (Android/Windows), it supports customized inquiry software, seamless playback of interactive media, and convenient content updates via USB or remote control. Built with premium industrial components and optimized natural heat dissipation system, the kiosk supports 24/7 stable operation, adapting to long-term high-frequency touch usage. It integrates user-friendly functions including password protection, anti-theft lock, scheduled on/off, and built-in speakers, simplifying daily management and maintenance. Rich optional expansion modules (NFC Reader, 2D Barcode Scanner, etc.) are available to meet personalized inquiry and service needs, making it a reliable interactive solution for commercial, government, educational, and financial sectors.
Applications
Commercial Lobbies & Malls，Government Service Halls，Hospitals & Hotels，Schools & Banks，Retail Stores & Catering Venues
Specifications
| 21.5-inch S-Type Floor-Standing Touch Kiosk | 21.5-inch S-Type Floor-Standing Touch Kiosk |
| Specification | Specification |
| Model | A21-SFT01 |
| Screen Size | 21.5 inch |
| Active Display Area (mm) | 476.64mm(W)×268.11mm(H) |
| Display Mode | 16:09 |
| LCD Type | TFT-LCD |
| Resolution | 1920×1080 |
| Display Color | 16.7M |
| Brightness(nits) | 350nits |
| Brightness Control | Manual/Automatic optional |
| Contrast Ratio | 1200:01:00 |
| Viewing Angle | 178(H) /178(V) |
| Response Time | 6ms |
| Backlight | LED backlight |
| Touch screen | Standard (5-point Capacitive Touch) |
| Touch type | Capacitive Touch (PCAP) |
| Touch Max Resolution | 1920×1080 |
| Transparency | 90% |
| Scanning Speed | 40Scans/S |
| Response Speed | <10ms |
| Touch precision | 1mm |
| Minimum Touch | 5 points |
| Operation Parameters | Operation Parameters |
| Operation System | Windows 10/11 / Android 11.0 (no standalone version) |
| Working humidity | 10% to 85% (non-condensing) |
| Storage humidity | 5%~90% (non-condensing) |
| Temperature Control System | Natural heat dissipation (industrial-grade heat dissipation structure) |
| Power Supply | AC 100V-240V, 50HZ/60HZ |
| Power consumption | 60W |
| Main Function | Touch interactive inquiry, customized software operation |
| USB/remote content update, data synchronization | |
| Support HD video, pictures, and interactive media | |
| Security and password protection, anti-theft lock design | |
| Set up time on/off, remote management | |
| Built-in 5W*2 speakers, audio output | |
| Anti-collision S-type stand, stable structure | |
| Temperature | Storage:-20 Celsius degree to 60 Celsius degree |
| Working: 0 Celsius degree to 40 Celsius degree | |
| Fixing Method | Floor-Standing |
| Waterproof Enclosure | Indoor dustproof |
| Color | White (S-type stand and body), custom color optional |
| Protection Glass | 4mm Tempered glass (anti-glare, anti-fingerprint) |
| Applicable field | Indoor public places, Office Buildings, Banks, Hospitals, Schools, Shopping Malls etc. |
| Available operating systems | Available operating systems |
| Android version | Quad Core, RK3568 chipset, 4G RAM+32G ROM, Android 11.0 wifi, Bluetooth supported, 2.0GHz I/O：HDMI+USB OTG+USB 3.0+LAN+AUDIO+TF |
| Octa Core, RK3588A chipset, 8G RAM+64G ROM, Android 11.0 wifi, Bluetooth supported, 2.2GHz I/O：HDMI+USB 3.0+USB OTG+LAN+AUDIO+TF | |
| Windows version | I3 CPU,8G RAM,128G SSD, integrated GPU, wifi, RJ45 supported, win10 Pro trial os |
| I/O：HDMI+VGA+2*USB3.0+2*USB2.0+LAN+AUDIO | |
| I5 CPU,8G RAM,128G SSD, integrated GPU, wifi, RJ45 supported, win10 Pro trial os | |
| I/O：HDMI+VGA+2*USB3.0+2*USB2.0+LAN+AUDIO | |
| I7 CPU,8G RAM,128G SSD, integrated GPU, wifi, RJ45 supported, win10 Pro trial os | |
| I/O：HDMI+VGA+2*USB3.0+2*USB2.0+LAN+AUDIO |
Competitive Advantage:
S-Type Stand Design: The S-shaped floor-standing structure combines stability and aesthetics, with anti-collision and height-adjustable features, suitable for high-traffic indoor environments while enhancing space decoration.
Precise Capacitive Touch Interaction: Standard 5-point capacitive touch screen (PCAP) with <10ms response speed and 1mm precision, ensuring smooth, sensitive human-machine interaction for inquiry scenarios.
Interactive-Optimized Configuration: Pre-installed Android/Windows systems tailored for inquiry software, with sufficient RAM/ROM and multiple I/O interfaces, supporting customized program development and data synchronization.
Industrial-Grade Reliability: Adopts premium industrial components and optimized heat dissipation, supporting 24/7 continuous operation with anti-theft lock and overload protection, adapting to long-term high-frequency use.
Easy Deployment & Maintenance: No complex installation required (floor-standing design), with USB/remote content update and touch calibration functions, reducing later operation and maintenance costs.
Personalized Customization: Supports anti-glare/anti-fingerprint glass, custom colors, and expansion modules (NFC/2D Scanner), fully matching the interactive needs of different industries.
Space-Optimized Wall-Mount Design: 32-inch large screen balances visual impact and space efficiency, wall-mount installation saves floor space, ideal for indoor venues with limited area.
Industrial-Grade Stable Performance: Adopts premium industrial components and optimized heat dissipation, supporting 24/7 uninterrupted operation with long service life and low failure rate.
Flexible Multi-OS Configuration: Covers Standalone, Android, and Windows systems with diverse processor options, matching different functional needs and budget plans of customers.
Easy Operation & Maintenance: USB fast content update, remote control, and scheduled on/off functions simplify daily management, reducing manual operation and maintenance costs.
High-Definition Visual Experience: FHD 1920×1080 resolution and 450nits brightness deliver clear, vivid visuals with wide viewing angle, ensuring content visibility from all positions.
