21.5'' Touchscreen Self-Service Ordering Kiosk - Integrated QR Code Scanner & Printer, Android RK3568A/X86(I3/I5/I7)Configurable Options
- Overview
- Recommended Products
- Alternative Names of the Product
- Self-Service Ordering Kiosk
- Touchscreen Food Order Terminal
- QR Code Scanning Order Kiosk
- Integrated Printer Ordering Machine
- 21.5'' Smart Catering Order Kiosk
- Main Applications
- Quick-Service Restaurants (QSRs): Fast food chains, burger joints, and fried chicken stores to streamline ordering/payment, reduce waiting time, and cut labor costs.
- Beverage Shops: Milk tea, coffee, and juice stores for self-service customization, QR code payment, and instant order printing.
- Casual Dining Restaurants: Family restaurants, buffets, and hot pot eateries to enable table-side self-ordering, menu browsing, and split-payment options.
- Convenience Stores: 24-hour marts for ready-to-eat food, snack, and beverage ordering, supporting self-checkout via QR code.
- Food Courts & Malls: Collective dining areas to unify ordering channels, reduce queuing, and improve customer turnover rate.
- All-in-One Functionality: Integrates touch ordering, QR code scanning, and thermal printing—no extra devices needed, saving space and cost.
- Dual-System Flexibility: Android/X86 options adapt to diverse software demands, from basic ordering to complex POS integration.
- Smooth Touch & Fast Scanning: 10-point capacitive touch and 60 scans/sec QR code scanner ensure quick, error-free operation.
- Durable & User-Friendly: Tempered glass panel, anti-glare coating withstand heavy usage in busy catering environments.
- Efficiency Enhancement: Reduces queuing time by 40%, cuts order errors, and lowers labor costs for catering businesses.
- Easy Remote Management: Supports cloud-based content updates, device monitoring, and order data analysis—simplifying operation.
Product General Information
Place of Origin |
CHINA |
Brand Name |
AWSTOUCH |
Model Number |
A22-FS001 |
Certification |
CCC CE ROSH |
Product Introduction
Quick Detail
Description

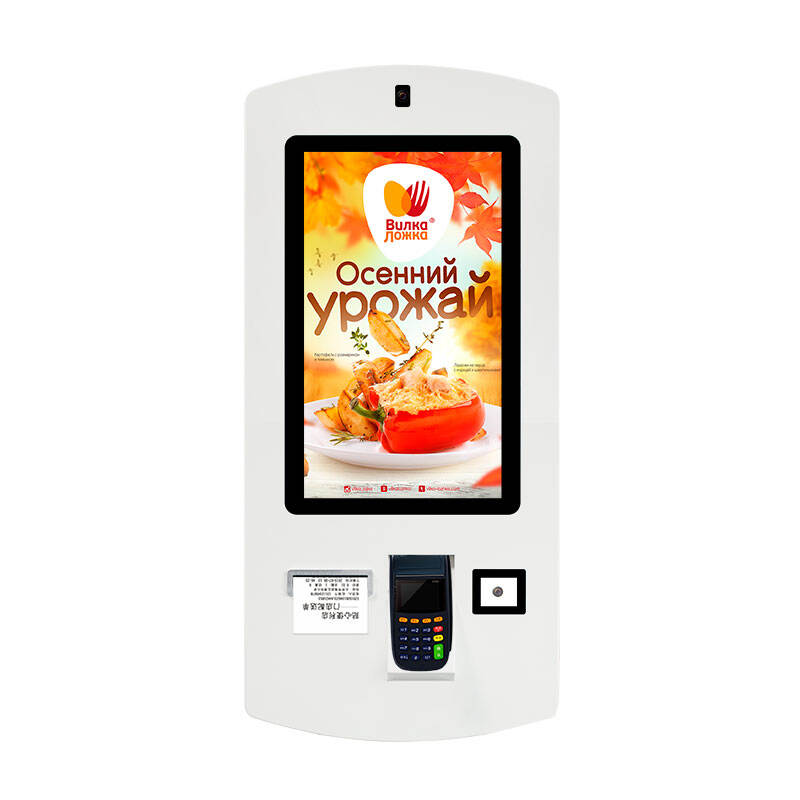

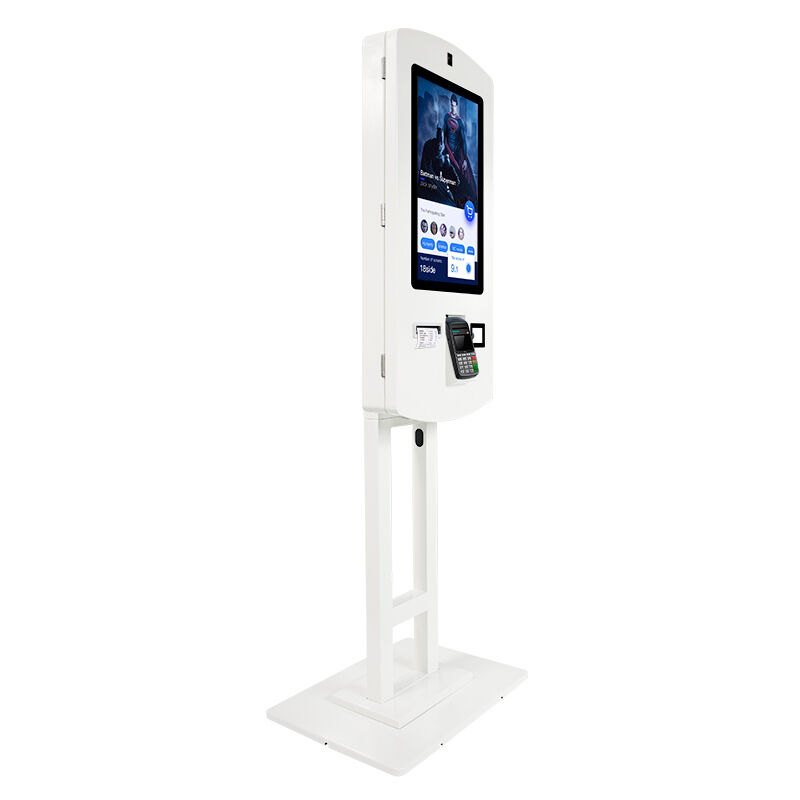

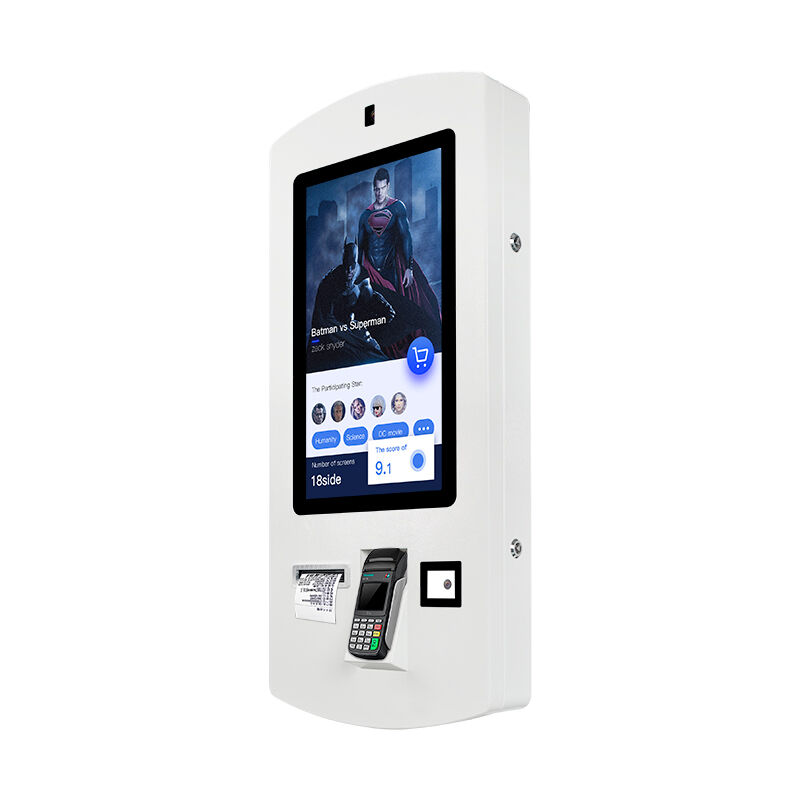

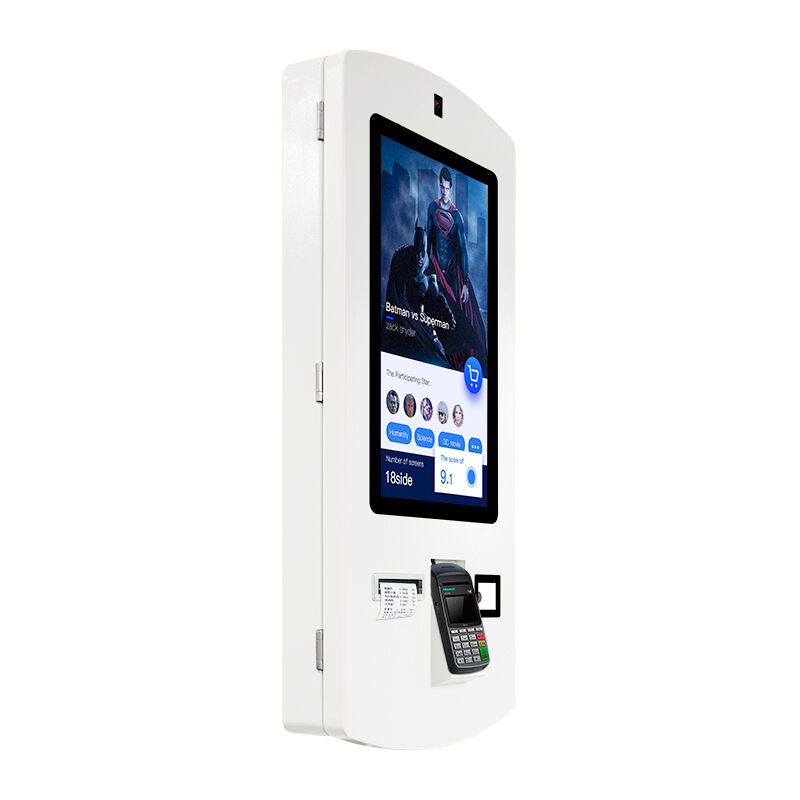

21.5'' all-in-one self-service ordering kiosk combines intuitive touch interaction, fast QR code scanning, and instant thermal printing, designed to revolutionize catering service efficiency. Equipped with 10-point PCAP capacitive touch screen, 500 nits high brightness, and anti-glare coating, it ensures clear visibility and smooth operation even in busy dining environments. Available with Android RK3568A or X86 (I3/I5/I7) configurations, it supports flexible software integration (order management, inventory sync, membership systems). The built-in high-speed QR code scanner enables seamless mobile payment, while the thermal printer delivers clear order receipts instantly. With rugged construction, multiple installation modes, and remote management capability, this kiosk is ideal for QSRs, beverage shops, and food courts, reducing labor dependency, minimizing order errors, and enhancing customer dining experience.
Specifications
21.5'' Touchscreen Self-Service Ordering Kiosk |
21.5'' Touchscreen Self-Service Ordering Kiosk |
Specification |
Specification |
Model |
A22-FS001 |
Screen Size |
21.5inch |
Active Display Area (mm) |
476.64mm(W)×268.11mm(H) |
Display Mode |
16:9 |
LCD Type |
TFT-LCD |
Resolution |
1920×1080 (FHD) |
Display Color |
16.7M |
Brightness(nits) |
500nits |
Brightness Control |
Manual/Auto Light Sensor |
Contrast Ratio |
1200:1 |
Viewing Angle |
178(H)/178(V) |
Response Time |
5ms |
Backlight |
LED backlight |
Touch type |
Capacitive Touch |
Touch Max Resolution |
1920×1080 |
Response Speed |
<8ms |
Touch precision |
0.5mm |
Minimum Touch |
10 points |
QR Code Scanner (Built-in) |
QR Code Scanner (Built-in) |
Scanner Type |
2D Image Scanner |
Scanning Speed |
60 scans/sec |
Scanning Distance |
5cm~30cm |
Printer (Built-in) |
Printer (Built-in) |
Printer Type |
Thermal Printer |
Print Speed |
150mm/s |
Paper Width |
80mm |
Paper Thickness |
50~80μm |
Print Resolution |
203DPI |
Operating System |
Android RK3568A / X86 (I3/I5/I7) Optional |
Working humidity |
20%~80% (non-condensing) |
Storage humidity |
10%~90% (non-condensing) |
Temperature Control System |
Natural Cooling + Heat Dissipation Grille |
Power Supply |
AC 100V-240V, 50HZ/60HZ |
Power consumption |
180W (Typical) |
Main Function |
Self-service menu browsing & ordering |
QR code scanning for payment | |
Instant order receipt printing | |
Order data sync with POS system | |
Remote content/software update | |
Smart Control System |
Industrial-grade mainboard |
Built-in 5W×2 stereo speakers | |
Overvoltage/overcurrent/short-circuit protection | |
Leakage protector | |
Temperature |
Storage: -10℃ to 60℃ |
Working: 0℃ to 40℃ | |
Fixing Method |
Floor-standing / Countertop / Wall-mounted (Optional) |
Color |
Black / White / Customizable |
Protection Glass |
4mm Tempered Glass (Anti-Glare & Anti-Fingerprint) |
Applicable Field |
QSRs, Beverage Shops, Casual Dining, Convenience Stores, Food Courts, Malls |
Available Operating Systems |
Available Operating Systems |
Android Version (RK3568A) |
Quad Core, RK3568A chipset, 4G RAM+32G ROM, Android 11,WiFi 6, Bluetooth 5.0, LAN supported,I/O: HDMI+USB 3.0×2+LAN+AUDIO+TF Card Slot |
X86 Version |
Intel Core I3, 8G RAM+256G SSD, Windows 10 Pro,WiFi, Bluetooth 5.0, LAN supported,I/O: DC12V+HDMI+1×USB3.0+2×USB2.0+LAN+AUDIO |
Intel Core I5, 8G RAM+512G SSD, Windows 10 Pro,WiFi, Bluetooth 5.0, LAN supported,I/O: DC12V+HDMI+1×USB3.0+2×USB2.0+LAN+AUDIO | |
Intel Core I7,8G RAM+256GB SSD, Windows 10 Pro,WiFi, Bluetooth 5.0, LAN supported,I/O: DC12V+HDMI+1×USB3.0+2×USB2.0+LAN+AUDIO |
Competitive Advantage
Tag
Self-Service Ordering Kiosk, Touchscreen Order Terminal, QR Code Scanning Kiosk, Catering Order Machine, Android/X86 Order Kiosk, Integrated Printer Kiosk
