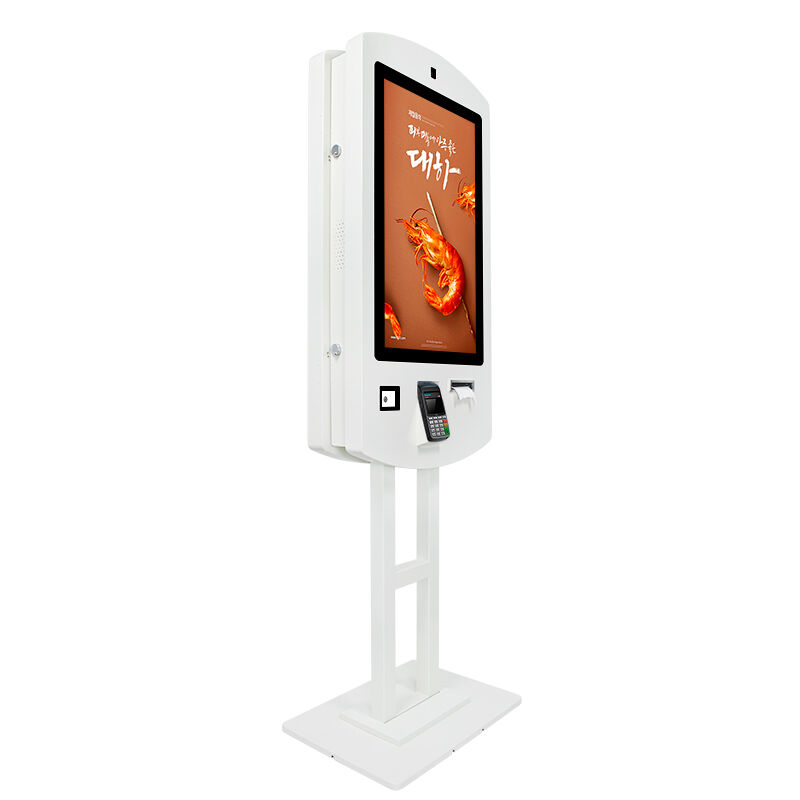

32-Inch Double-Sided Self-Service Ordering Machine - Dual Configuration: Android RK3568A & X86 (I3/I5/I7) for Catering Scenarios
Alternative Names: 32-inch Double-Sided Order Kiosk, Self-Service Catering Order Machine, RK3568A/X86 Dual-Core Order Terminal
Main Applications: Chain restaurants, fast-food stores, food courts, milk tea shops, canteens, commercial plazas (catering zones)
Core Specifications: 32-inch double-sided display, capacitive touch screen; Android RK3568A / X86 (I3/I5/I7) dual configurations; support cashless payment, order printing, menu update
- Overview
- Recommended Products
- Fast-Food & Snack Stores: KFC, McDonald's and other fast-food chains, as well as local snack stores, realizing quick self-ordering and reducing queuing time
- Chain Restaurants: Western restaurants, Chinese food chain stores, using X86 high-performance configuration to cope with peak order pressure
- Food Courts & Canteens: Shopping mall food courts, enterprise/school canteens, supporting multiple merchants to share terminals and unified order management
- Beverage Stores: Milk tea shops, coffee shops, displaying product pictures and promotional information on the back screen while realizing self-ordering
- Commercial Plazas: Catering zones in large shopping malls, providing unified self-service ordering terminals to improve the overall operation efficiency of the catering zone
- Double-Sided Display Efficiency: Front self-ordering + back information display, realizing dual-scene interaction and improving space utilization and information transmission effect
- Dual High-Performance Configurations: Android RK3568A (cost-effective, low power consumption) and X86 I3/I5/I7 (high performance, high compatibility) to meet the needs of different scale catering scenarios
- Professional Catering Adaptation: Industrial-grade metal shell, anti-collision and easy to clean; supports 24-hour continuous operation, adapting to the high-frequency use environment of catering venues
- Comprehensive Payment & Expansion: Supports multiple cashless payment methods; rich interfaces, compatible with printers, scanners and various catering management systems

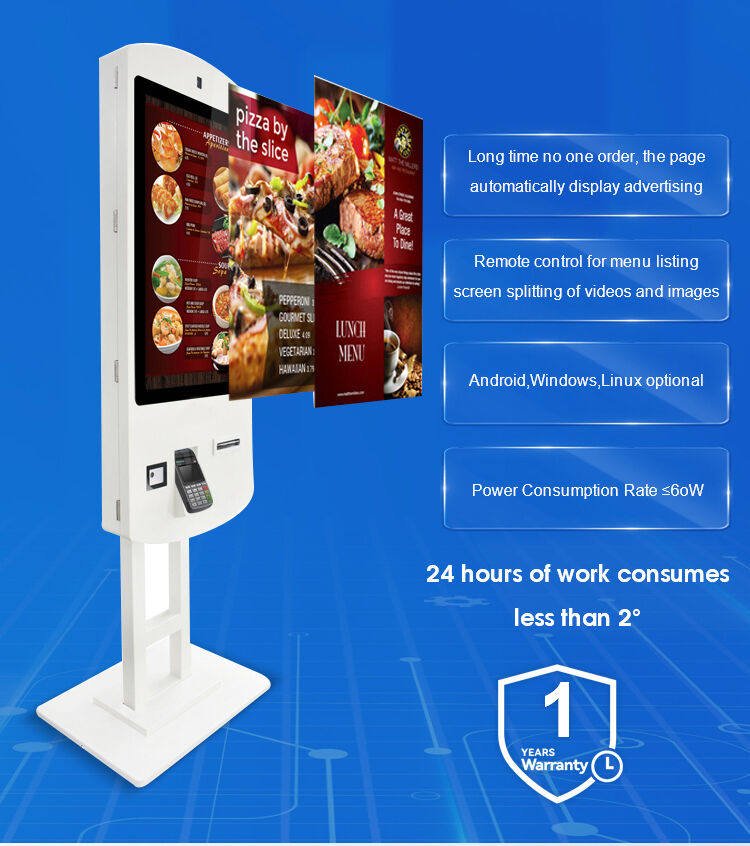

- Intelligent Management: Supports remote menu update, order data statistics and fault self-diagnosis, reducing operation and maintenance costs

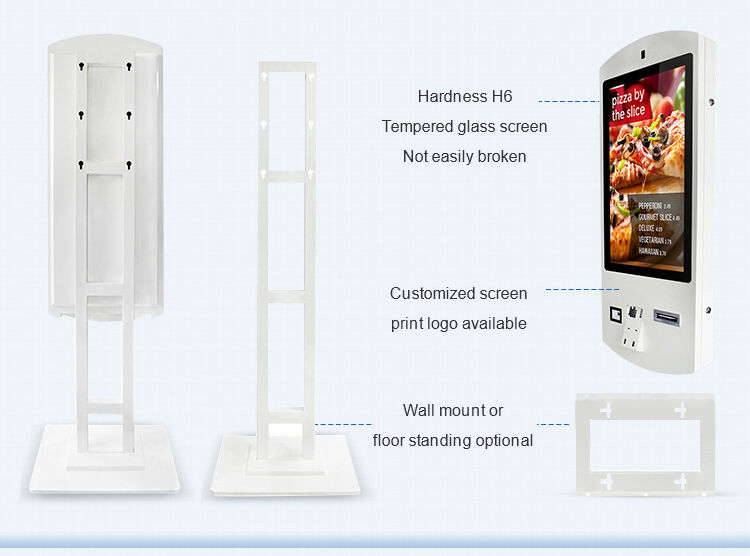

- Customizable Design: Machine dimensions, stand style and system functions can be customized according to brand and venue needs
Product General Information：
Item |
Details |
Place of Origin |
China |
Brand Name |
AWSTOUCH |
Model Number |
A32-FS001 |
Certification |
CE, FCC, RoHS, CCC |
Description：

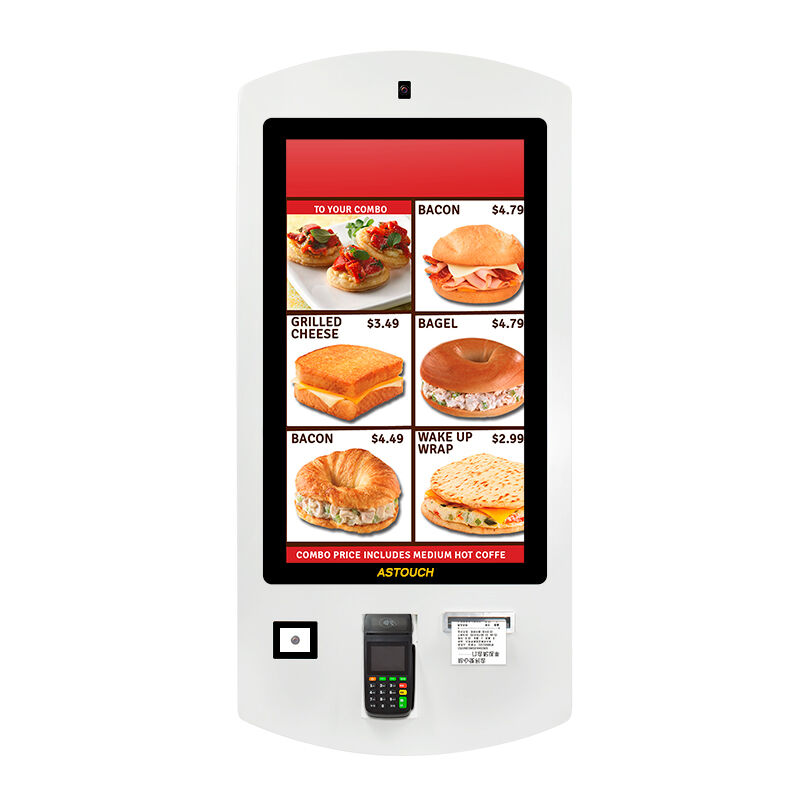

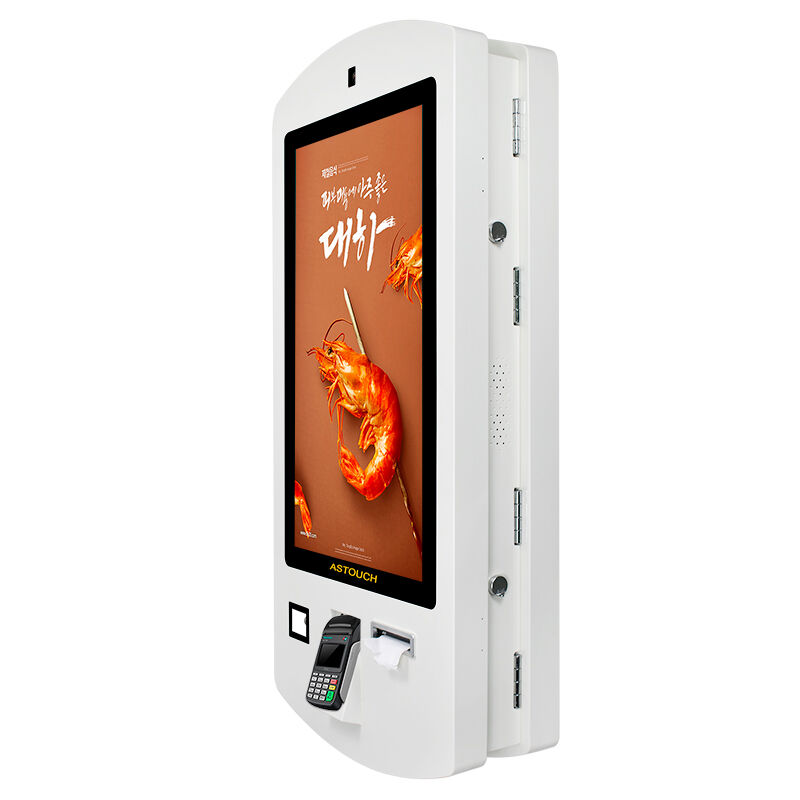

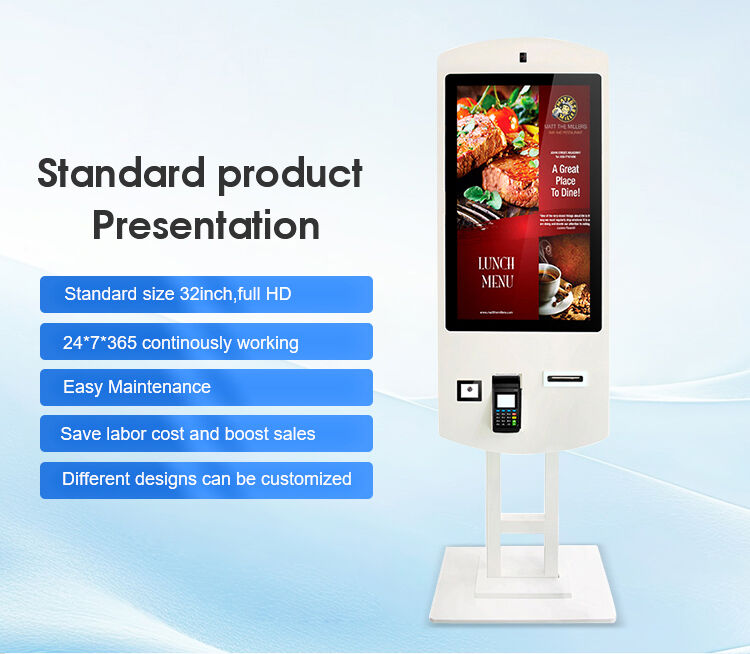

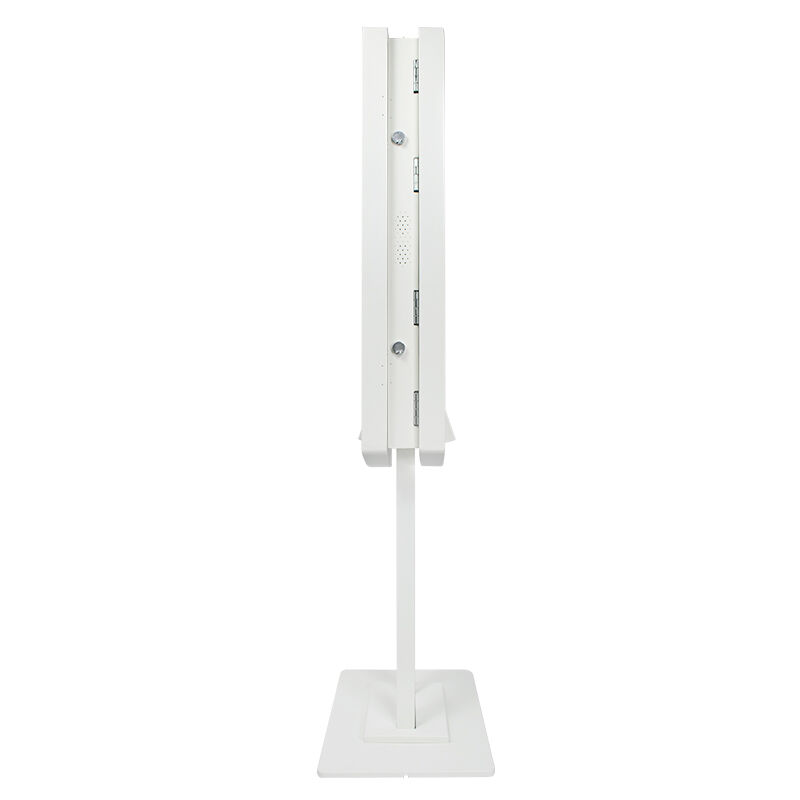

The 32-Inch Double-Sided Self-Service Ordering Machine is a professional catering terminal designed to optimize the ordering process, reduce labor costs, and enhance customer experience. Its unique double-sided display design realizes dual-scene interaction: the front side is for customers to operate self-ordering, payment, and order inquiry, while the back side can display real-time order status, promotional activities, or brand information, maximizing the use of space and information transmission efficiency.
To meet the diverse needs of different catering scenarios, the machine provides two high-performance configuration options. The Android version is equipped with the RK3568A chip (quad-core Cortex-A55, main frequency up to 2.0GHz), matching Android 11 operating system. It has the advantages of low power consumption, stable operation, and fast response, which is suitable for small and medium-sized catering stores such as milk tea shops and fast-food restaurants with moderate order volume. The X86 version offers three levels of processors: I3, I5, and I7, combined with Windows 10/11 system. It has strong multi-task processing capability and high compatibility, which can meet the high-concurrency ordering needs of large chain restaurants, food courts, and canteens, and support seamless connection with various catering management systems.

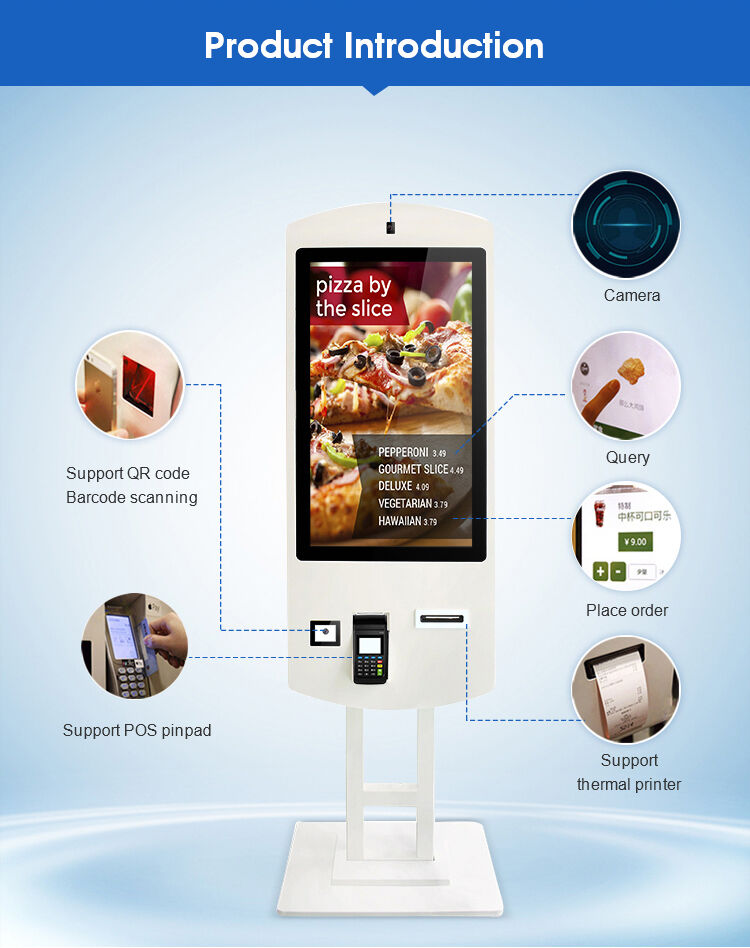

Both configurations are equipped with 32-inch high-definition capacitive touch screens (1920×1080 resolution), which support 10-point touch, with sensitive operation and smooth writing. It integrates rich expansion interfaces, including USB, Ethernet, WiFi, Bluetooth, 4G (optional), thermal printer interface, and QR code scanner interface, supporting Alipay, WeChat Pay, UnionPay and other cashless payment methods, and can realize one-stop services from ordering, payment to order printing. The whole machine adopts industrial-grade metal shell, which is anti-collision, scratch-resistant, and easy to clean, adapting to the complex environment of catering venues. It also supports 24-hour continuous operation, with stable performance and long service life.
Applications：
Specifications：
Item |
Android Version (RK3568A) |
X86 Version (I3/I5/I7) |
Screen Size |
32 Inches (Double-Sided) |
32 Inches (Double-Sided) |
Resolution |
1920×1080 (Full HD) |
1920×1080 (Full HD) |
Touch Screen |
Capacitive Touch, 10-Point Touch, Response Time ≤5ms |
Capacitive Touch, 10-Point Touch, Response Time ≤5ms |
Core Processor |
RK3568A, Quad-Core Cortex-A55, 2.0GHz |
Intel Core I3/I5/I7 (optional) |
Memory (RAM) |
4GB LPDDR4 (Optional 6GB/8GB) |
8GB DDR4 (I3/I5); 16GB DDR4 (I7, optional 32GB) |
Storage |
32GB eMMC (Optional 64GB/128GB) |
256GB SSD (I3/I5); 512GB SSD (I7, optional 1TB) |
Operating System |
Android 11 |
Windows 10/11 (optional Linux) |
Network Connectivity |
WiFi (802.11 b/g/n/ac), 10/100/1000M Ethernet, 4G (optional) |
WiFi (802.11 b/g/n/ac/ax), 10/100/1000M Ethernet, 4G/5G (optional) |
Expansion Interfaces |
USB 2.0 ×2, USB 3.0 ×1, HDMI ×1, RJ45 ×1, Printer Interface (RS232/USB), QR Code Scanner Interface |
USB 2.0 ×2, USB 3.0 ×2, HDMI ×2, RJ45 ×2, Printer Interface (RS232/USB), QR Code Scanner Interface, Audio Interface |
Payment Support |
Alipay, WeChat Pay, UnionPay (support QR code scanning & NFC optional) |
Alipay, WeChat Pay, UnionPay, Apple Pay, Google Pay (support QR code scanning & NFC) |
Power Supply |
AC 100-240V, 50/60Hz, 12V DC Output |
AC 100-240V, 50/60Hz, 12V DC Output |
Power Consumption |
≤45W (Operating); ≤5W (Standby) |
≤60W (I3 Operating); ≤80W (I5 Operating); ≤100W (I7 Operating); ≤8W (Standby) |
Machine Material |
Industrial-Grade Metal Shell (Aluminum Alloy + Steel) |
Industrial-Grade Metal Shell (Aluminum Alloy + Steel) |
Operating Temperature |
0°C - 45°C |
0°C - 45°C |
Storage Temperature |
-20°C - 60°C |
-20°C - 60°C |
