Product General Information
Place of Origin |
CHINA |
Brand Name |
AWSTOUCH |
Model Number |
A55-FD001 |
Certification |
CE, RoSH, FC, ISO9001 |
Product Introduction
Quick Detail:

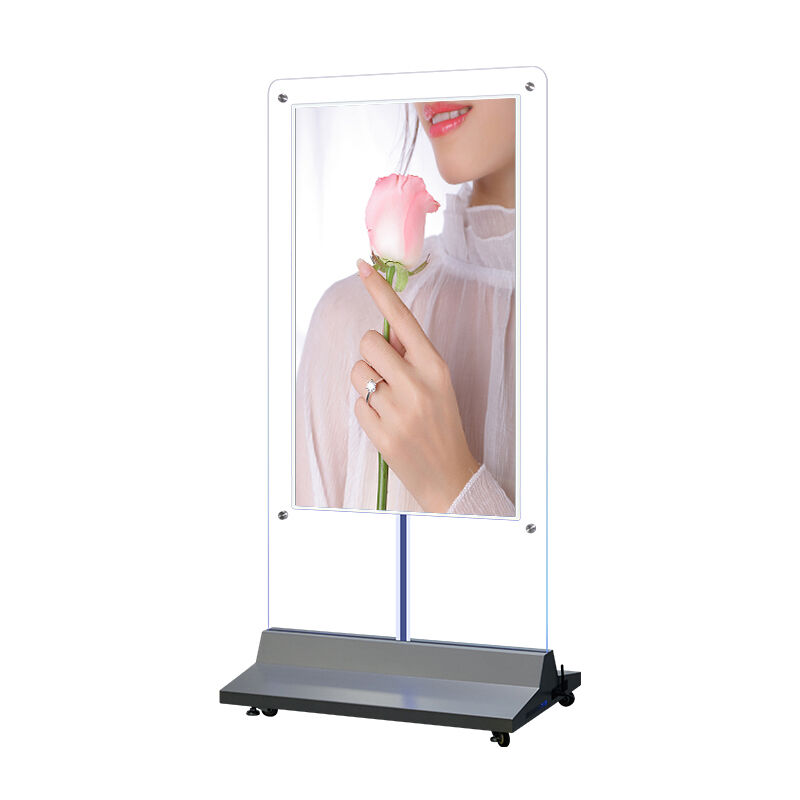

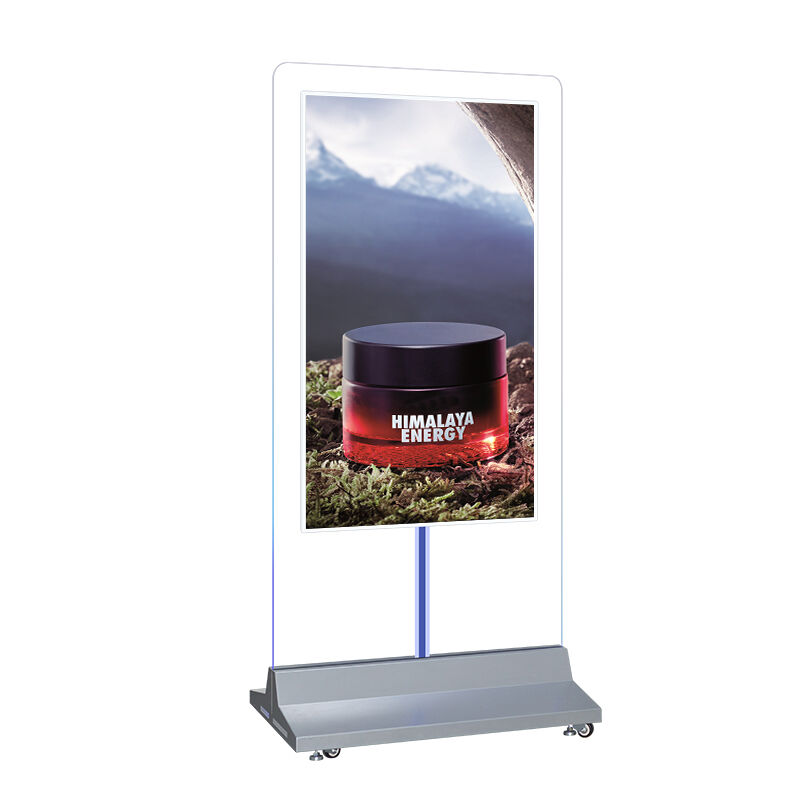

•55-inch Double-Sided Acrylic Vertical Signage
•Indoor Acrylic Digital Advertising Terminal
•FHD Dual-Screen Vertical Synchronous Playback Signage
•Anti-Scratch Acrylic Vertical Display
•Android/Windows Remote-Controlled Ad Player
Description:
The 55-inch Double-Sided Acrylic Vertical Digital Signage is a high-aesthetic advertising terminal designed for indoor commercial scenarios. Featuring 55-inch FHD (1920×1080) dual displays paired with 5mm high-transparency acrylic panels, it delivers clear, vivid visuals with 380nits brightness and 1200:1 contrast ratio—acrylic’s excellent light transmission ensures true-to-life colors, while its anti-scratch, impact-resistant property enhances durability for high-traffic areas. The vertical floor-standing structure combines stability and sleek design, with a sturdy metal frame and acrylic panel integration that blends seamlessly with retail, hospitality, and corporate decors, providing 360° advertising coverage via dual-side display.
Powered by Android 12.0 (Windows 11 optional), the signage supports dual-screen synchronous/asynchronous playback, enabling flexible content management—ideal for displaying different promotions or consistent brand messages on both sides. It supports HD media (videos, images, audio, text) and convenient content updates via USB, network, or infrared remote control. Built with optimized heat dissipation and premium components, it ensures 24/7 stable operation with low power consumption. User-friendly functions include scheduled on/off, remote monitoring, brightness adjustment, and anti-theft lock, simplifying daily management. The acrylic panels are easy to clean, and the modular design facilitates maintenance, making it a reliable solution for efficient brand promotion and information dissemination.
Applications:
•Shopping Malls: Display store guides, product promotions, and brand ads on both sides to cover shoppers in corridors, atriums, and entrance areas.
•Retail Stores: Promote new arrivals and special offers dual-sided, attracting customers from multiple directions in store aisles or windows.
•Hotels & Lobby Areas: Show service information, event notices, and local attractions on both sides for guests in lobbies, elevators, and corridors.
•Airports & Train Stations: Deliver travel schedules, public announcements, and commercial ads simultaneously to passengers in waiting areas.
•Office Buildings & Business Centers: Display corporate culture, meeting schedules, and tenant information dual-sided for employees and visitors.
Specifications:
55-inch Double-Sided Acrylic Vertical Digital Signage |
55-inch Double-Sided Acrylic Vertical Digital Signage |
Specification |
Specification |
Model |
A55-FD001 |
Screen Size |
55 inch (dual-side TFT-LCD displays) |
Active Display Area (mm) |
1209.6mm(W)×680.4mm(H) per side |
Display Mode |
16:9 (dual-side, sync/async playback optional) |
Panel Material |
5mm High-transparency acrylic (anti-scratch, impact-resistant) |
Resolution |
1920×1080 (FHD) per side |
Display Color |
16.7M (92% NTSC color gamut) |
Brightness (nits) |
380nits per side (adjustable) |
Brightness Control |
Manual/Automatic/Remote controllable |
Contrast Ratio |
1200:1 |
Viewing Angle |
178°(H) / 178°(V) per side |
Response Time |
6ms |
Backlight |
LED backlight (energy-saving) |
Installation Method |

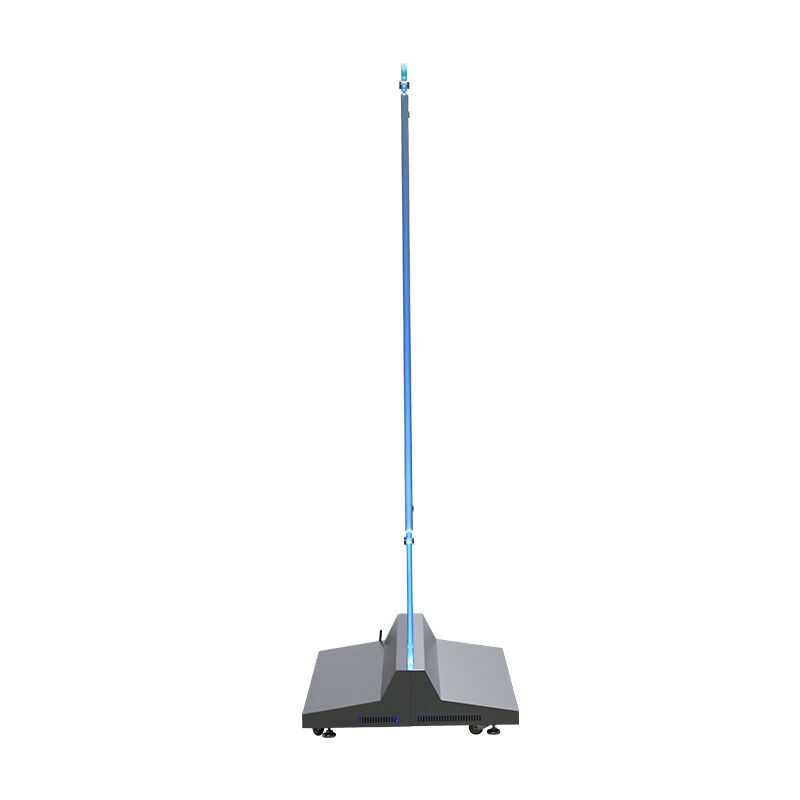

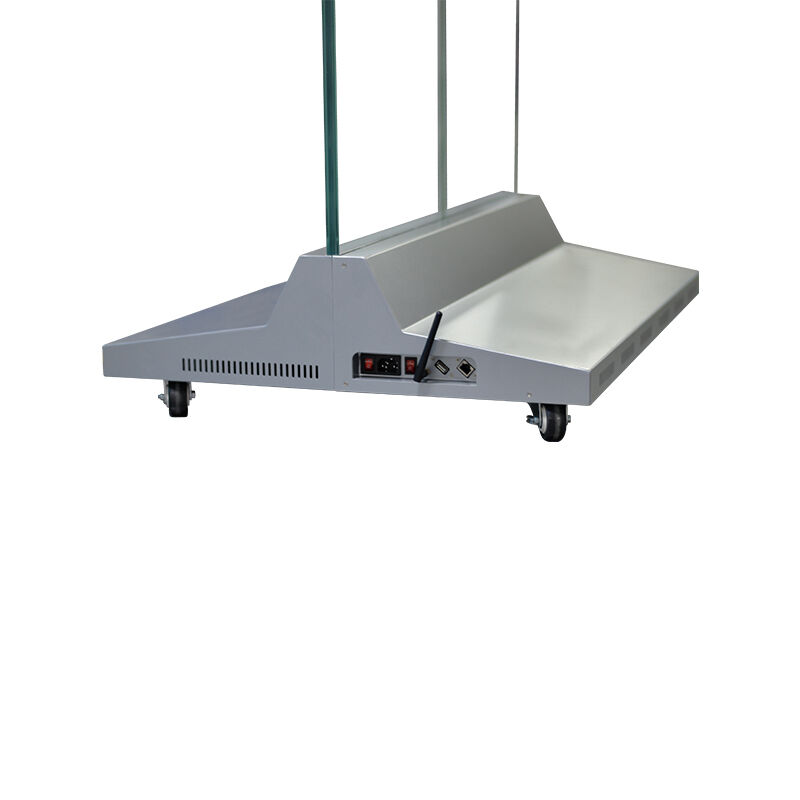

Vertical Floor-Standing (sturdy metal frame, height adjustable) |
Operating System |
Android11.0/12.0,Windows 11 (I3/I5/I7CPU optional) |
Working Humidity |
10% - 85% (non-condensing) |
Storage Humidity |
5% - 90% (non-condensing) |
Temperature Control System |
Efficient natural heat dissipation (modular structure) |
Power Supply |
AC 100V-240V, 50HZ/60HZ |
Power Consumption |
200W (max, dual-side operation) |
Working Temperature |
0℃ - 40℃ |
Storage Temperature |
-20℃ - 60℃ |
Color |
Black/White,acrylic panel + matching metal frame (customizable) |
Frame Thickness |
20mm (slim design, acrylic + metal integration) |
Main Functions |
Dual-side sync/async playback, USB/network/remote content update, scheduled on/off, remote monitoring, anti-theft lock, built-in 5W×2 speakers |
|
I/O Interfaces (Android Version) |
Quad Core, RK3568A chipset, 4G RAM+32G ROM, Android 11.0,wifi, Bluetooth supported, 2.0GHz,I/O：HDMI+USB OTG+USB 3.0+LAN+AUDIO+TF Hexa CoreRK3399E, 4G RAM+32G ROM, Android 11.0，wifi, Bluetooth supported, 2.0GHz，I/O：HDMI+USB 3.0+LAN+AUDIO+TF+SIM Octa Core, RK3588A chipset, 8G RAM+64G ROM, Android 11.0,wifi, Bluetooth supported, 2.2GHz,I/O：HDMI+USB 3.0+USB OTG+LAN+AUDIO+TF |
I/O Interfaces (PC Version) |
I3 CPU,8G RAM,128G SSD, integrated GPU, wifi, RJ45 supported,win10/11,I/O:HDMI+VGA+2*USB3.0+2*USB2.0+LAN+AUDIO I5 CPU,8G RAM,128G SSD, integrated GPU, wifi, RJ45 supported,win10/11,I/O:HDMI+VGA+2*USB3.0+2*USB2.0+LAN+AUDIO I7 CPU,8G RAM,128G SSD, integrated GPU, wifi, RJ45 supported,win10/11,I/O:HDMI+VGA+2*USB3.0+2*USB2.0+LAN+AUDIO |
Competitive Advantage:
•High-Transparency Acrylic Material: 5mm acrylic panels ensure excellent light transmission and color reproduction, while anti-scratch/impact features enhance durability for public use.
•Dual-Side Advertising Coverage: 360° visual exposure via dual displays maximizes audience reach, ideal for high-traffic areas requiring multi-directional information dissemination.
•Sleek Floor-Standing Design: Acrylic + metal frame integration blends aesthetics with stability, no wall/ceiling installation needed—adapts to various indoor decors.
•Flexible Playback & Management: Sync/async dual-screen control + remote/network content updates simplify ad management, reducing operational costs.
•Stable 24/7 Operation: Optimized heat dissipation and premium components support long-term continuous use, suitable for round-the-clock commercial venues.
•Easy Maintenance: Acrylic panels are stain-resistant and easy to clean; modular design facilitates component replacement, lowering maintenance efforts.
Tag:
55-inch Double-Sided Acrylic Signage, Vertical Digital Advertising Terminal, FHD Dual-Screen Ad Player, Anti-Scratch Acrylic Display, Remote-Controlled Signage
