Product General Information
Place of Origin |
CHINA |
Brand Name |
AWSTOUCH |
Model Number |
A55-FS002 |
Certification |
CE, RoSH, FC, ISO9001 |
Product Introduction
Quick Detail:
•55 inch IR Interactive Kiosk
•Floor-Standing IR Touch Information Terminal
•FHD IR Touch Self-Service Kiosk
•Multi-OS Indoor IR Interactive Terminal
•Remote-Controlled IR Touch Kiosk
Description:

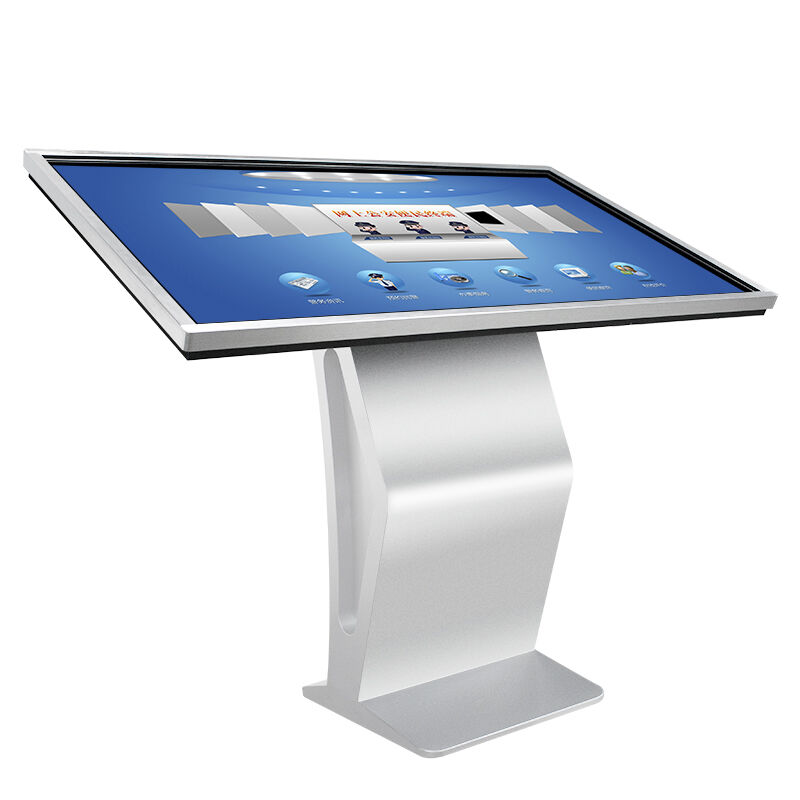

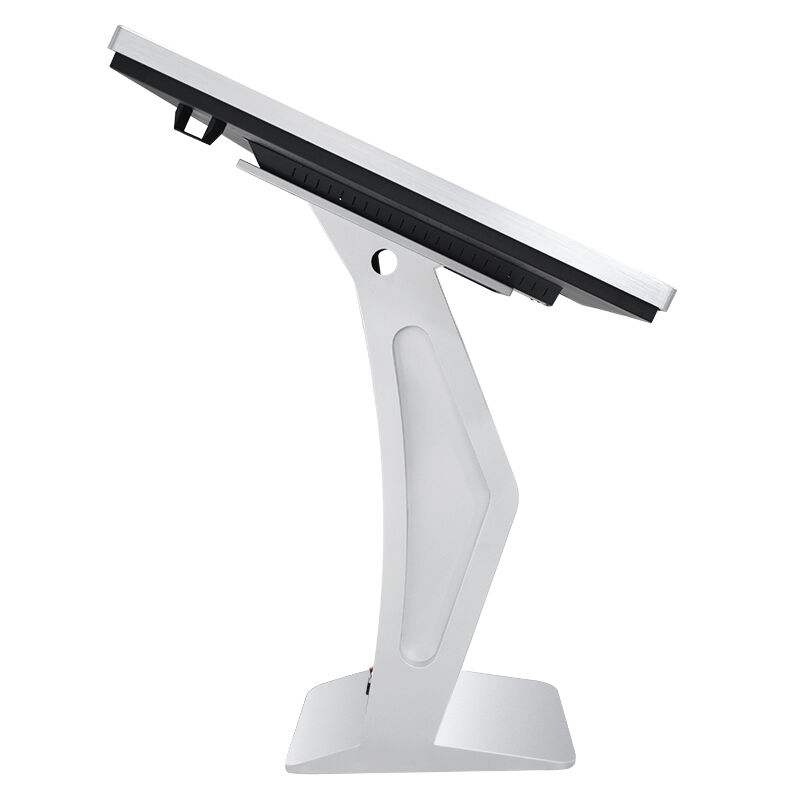

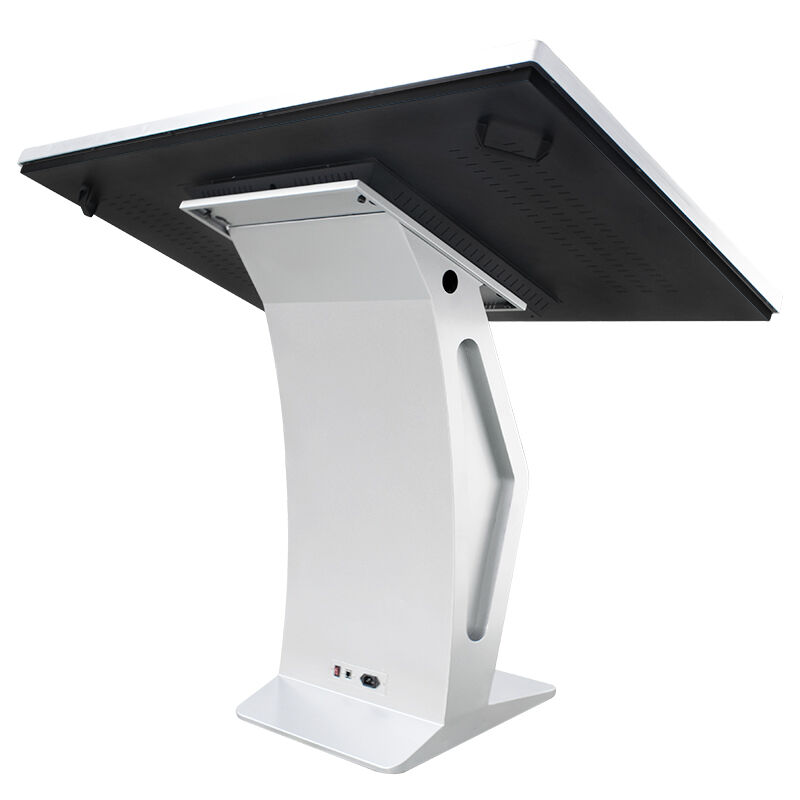

The 55 inch IR Interactive Kiosk (Model: A55-FS002) is a user-centric interactive terminal designed for indoor inquiry and self-service scenarios. Featuring a 55-inch FHD (1920×1080) display with 400nits brightness, it delivers clear, vivid visuals with wide 178° viewing angles, ensuring content visibility from all positions even in bright indoor environments. Equipped with a high-sensitivity IR touch screen, it offers precise response (<15ms) and smooth multi-point operation, supporting intuitive human-machine interaction for users of all ages. The floor-standing design combines stability and sleek aesthetics, with an adjustable height feature to fit different usage environments, seamlessly integrating with retail stores, hospitals, government halls, and corporate lobbies. It also supports infrared remote control, enabling convenient long-distance operation for content switching, brightness adjustment, and device management.
Powered by flexible operating system options (Android 11.0/12.0 / Windows 10/11), the kiosk supports customized inquiry software, seamless playback of HD media (videos, images, audio), and convenient content updates via USB, remote control or network. Built with premium components and optimized heat dissipation structure, it ensures long-term stable operation even under high-frequency touch usage. User-friendly functions include scheduled on/off, password protection, anti-theft lock, built-in 5W×2 speakers and IR remote control compatibility, simplifying daily management and reducing maintenance costs. Rich optional expansion modules (NFC Reader, 2D Barcode Scanner, Thermal Printer) are available to meet personalized needs, making it a versatile solution for self-service inquiry, information dissemination, and interactive service in various indoor venues.
Applications:
•Retail Malls: Provide store navigation, product information, promotion browsing, and membership service inquiry for shoppers.
•Hospitals: Offer registration guidance, department navigation, medical information inquiry, and queue status display to enhance service efficiency.
•Government Service Halls: Deliver business process guidance, document verification, and public information release, reducing manual consultation pressure.
•Educational Institutions: Support campus navigation, course inquiry, event promotion, and student service information lookup.
•Corporate Lobbies: Display company information, meeting schedules, and visitor reception services for employees and guests.
Specifications:
55 inch IR Interactive Kiosk |
55 inch IR Interactive Kiosk |
Specification |
Specification |
Model |
A55-FS002 |
Screen Size |
55 inch |
Active Display Area (mm) |
1209.6mm(W)×680.4mm(H) |
Display Mode |
16:9 |
LCD Type |
TFT-LCD |
Resolution |
1920×1080 (FHD) |
Display Color |
16.7M |
Brightness (nits) |
400nits |
Brightness Control |
Manual/Automatic optional (remote controllable) |
Contrast Ratio |
1200:1 |
Viewing Angle |
178°(H) / 178°(V) |
Response Time |
6ms |
Backlight |
LED backlight |
Touch Screen |
Standard IR Touch (multi-point, anti-glare) |
Touch Response Speed |
<15ms |
Touch Precision |
±2mm |
Operating System |
Android 11.0/12.0 / Windows 10/11 |
Working Humidity |
10% - 85% (non-condensing) |
Storage Humidity |
5% - 90% (non-condensing) |
Temperature Control System |
Efficient natural heat dissipation |
Power Supply |
AC 100V-240V, 50HZ/60HZ |
Power Consumption |
200W (max) |
Working Temperature |
0℃ - 40℃ |
Storage Temperature |
-20℃ - 60℃ |
Fixing Method |
Floor-Standing (height adjustable) |
Color |
White/Black/Gray (optional) |
Protection Glass |
3mm Tempered Glass (anti-glare & anti-fingerprint) |
Main Functions |
IR touch interactive inquiry, USB/remote/network content update, scheduled on/off, password protection, anti-theft lock, built-in speakers, infrared remote control support |
Android Version Options |
Quad Core, RK3568 chipset, 4G RAM+32G ROM, Android 11.0, wifi & Bluetooth supported, 2.0GHz; HDMI+USB OTG+USB 3.0+LAN+AUDIO+TF |
Windows Version Options |
Intel i3 CPU, 8G RAM, 128G SSD, integrated GPU, wifi & RJ45 supported, Windows 10/11; HDMI+VGA+2×USB3.0+1×USB2.0+LAN+AUDIO |
Competitive Advantage:
•Large 55" FHD Display: 1920×1080 resolution and 400nits brightness deliver clear, eye-catching visuals, ideal for detailed information and promotional content display in indoor spaces.
•Sensitive IR Touch Interaction: Multi-point IR touch with <15ms response speed ensures smooth, intuitive operation, adaptable to fast-paced public scenarios.
•Remote Control Function: Supports infrared remote control for convenient long-distance operation, simplifying content management and device adjustment without on-site operation.
•Flexible OS & Hardware Options: Compatible with Android and Windows systems, paired with multiple CPU/RAM/ROM configurations to meet customized software and functional needs.
•Stable & Durable Design: Premium components and optimized heat dissipation enable long-term reliable operation, adapting to high-frequency touch usage in public venues.
•Versatile Applications: Suitable for retail, healthcare, government, education, and corporate sectors, meeting diverse inquiry, self-service, and interactive communication needs.
Tag:
55 inch IR Interactive Kiosk, IR Touch Inquiry Terminal, Floor-Standing Remote-Controlled Kiosk, FHD Indoor Touch Terminal, Multi-OS Self-Service Kiosk
