Product General Information
| Place of Origin | CHINA |
| Brand Name | AWSTOUCH |
| Model Number | A32-FS001 |
| Certification | CE,RoSH |
Quick Detail
1. Alternative Names of the Product
•32 inch Touch Kiosk White
•White Floor-Standing Interactive Terminal
•32-inch Touch Query Kiosk
•Multi-OS White Touch Kiosk
•Indoor 32-inch White Touch Inquiry Kiosk
2. Main Applications
•Commercial Lobbies: Shopping malls, office buildings to provide store location inquiry, promotion browsing, and self-service information search for visitors.
•Government & Public Services: Service halls for self-service business inquiry, process guidance, and document verification, reducing manual consultation pressure.
•Hospitality & Healthcare: Hotel lobbies (room booking, service inquiry) and hospitals (registration guidance, department navigation) to enhance service efficiency.
•Educational & Financial Institutions: Campus halls (course inquiry, campus navigation) and bank lobbies (financial product inquiry, queue management) for interactive services.
•Retail & Catering: Brand stores and shopping centers for product details inquiry, membership services, and catering menu browsing with touch interaction.
Description

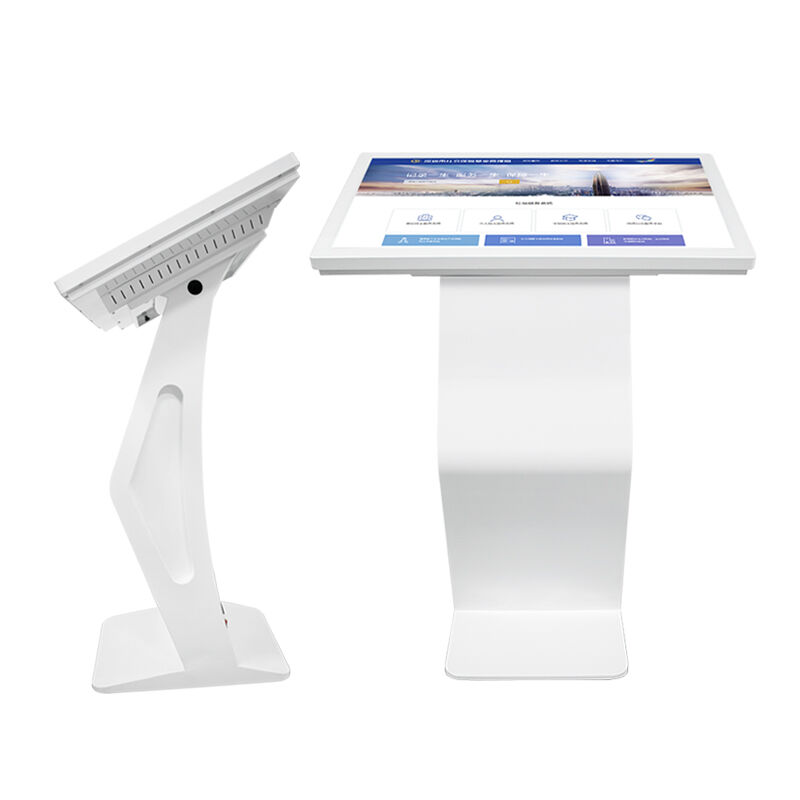

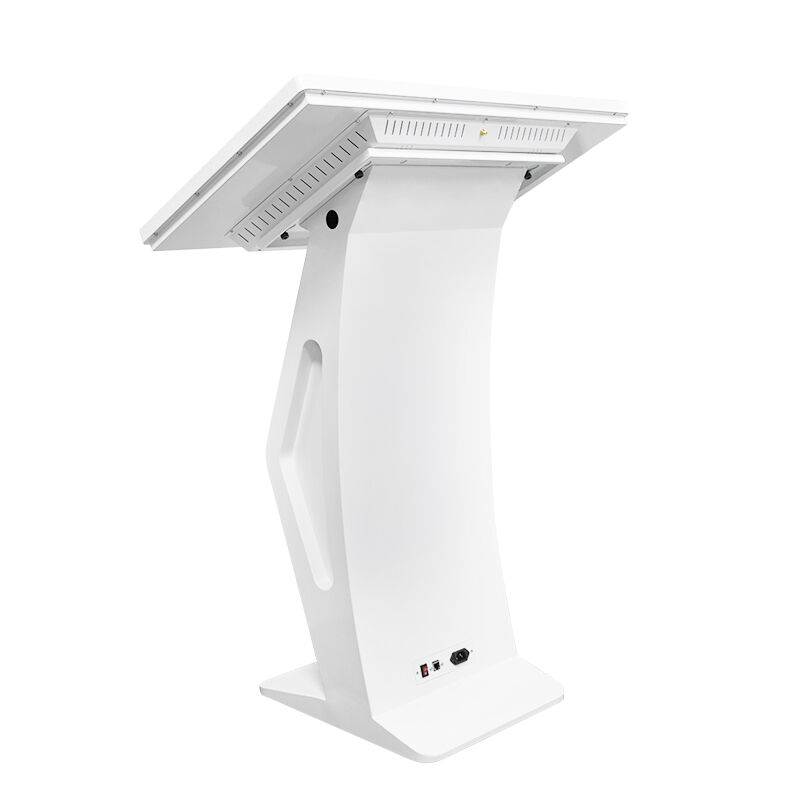

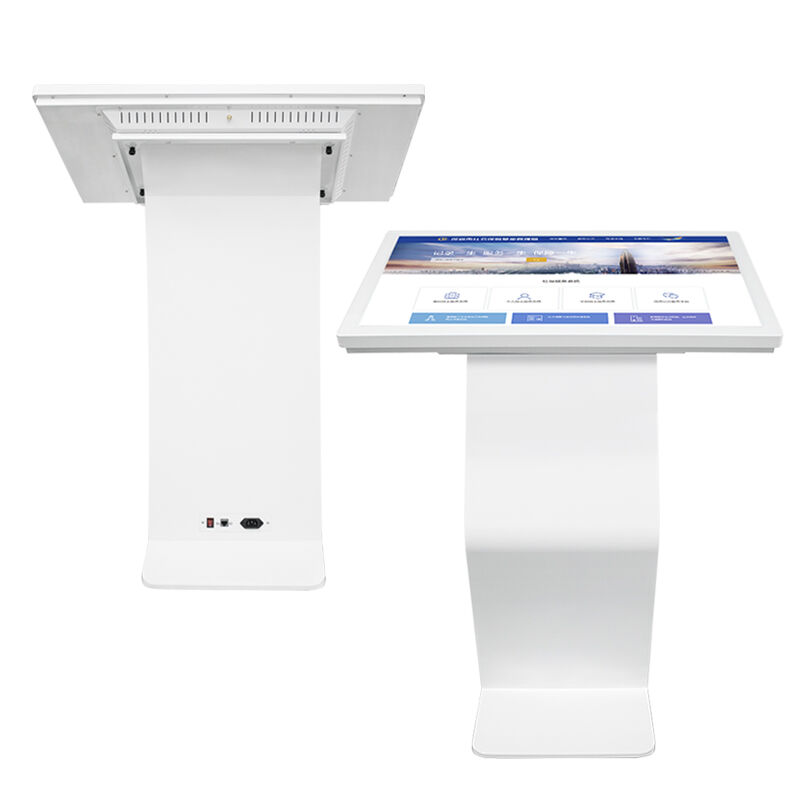

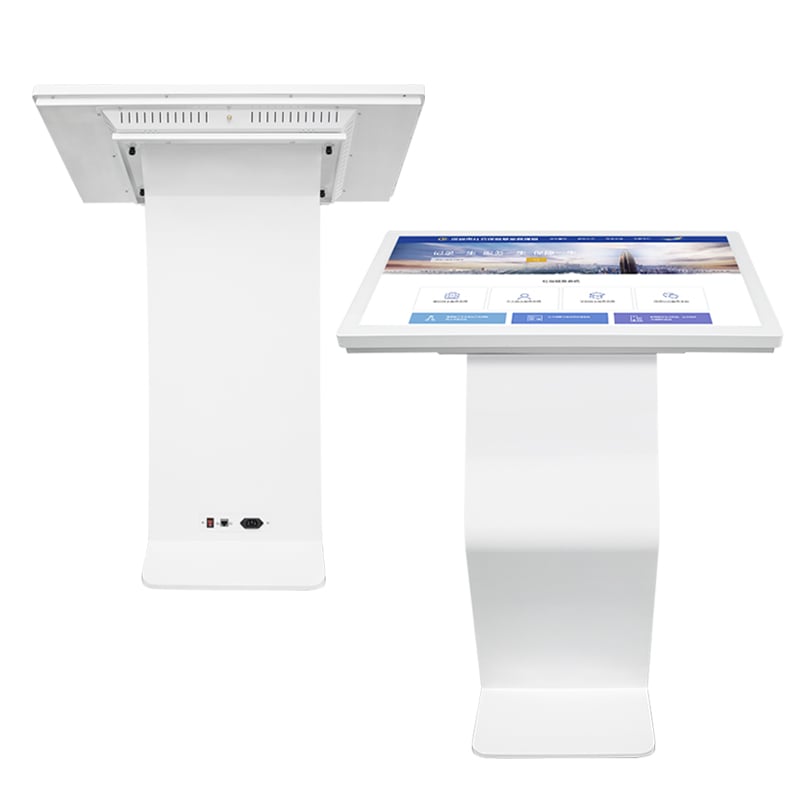

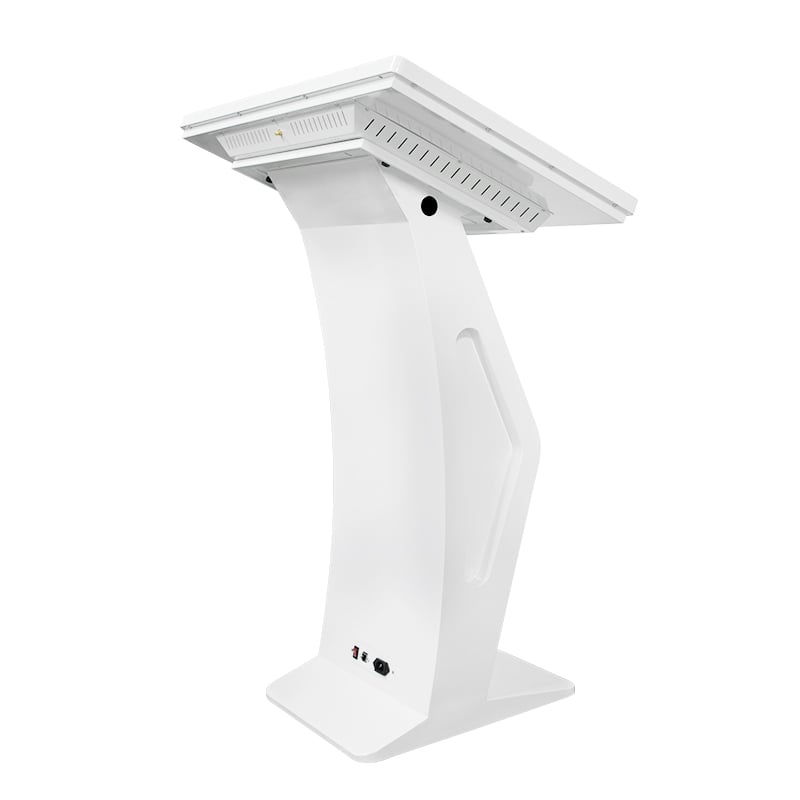

AWSTOUCH 32 inch Touch Kiosk White is an interactive terminal tailored for indoor inquiry scenarios. Equipped with 1920×1080 (FHD) resolution and 450nits brightness, paired with standard 5-point capacitive touch screen (PCAP), it delivers precise touch response (<10ms) and clear, vivid visuals, ensuring smooth human-machine interaction even in high-traffic indoor environments. The floor-standing structure features a sleek white design that combines stability and aesthetics, seamlessly integrating with various indoor decors without occupying excessive space. Powered by flexible operating systems (Android/Windows), it supports customized inquiry software, seamless playback of interactive media, and convenient content updates via USB or remote control. Built with premium components and optimized natural heat dissipation system, the kiosk supports long-term stable operation, adapting to high-frequency touch usage in indoor venues. It integrates user-friendly functions including password protection, anti-theft lock, scheduled on/off, and built-in speakers, simplifying daily management and maintenance. Rich optional expansion modules (NFC Reader, 2D Barcode Scanner, etc.) are available to meet personalized inquiry and service needs, making it a reliable interactive solution for retail, government, educational, and financial sectors.
Applications
Commercial Lobbies & Malls，Government Service Halls，Hospitals & Hotels，Schools & Banks，Retail Stores & Catering Venues
Specifications
| 32 inch Touch Kiosk White | 32 inch Touch Kiosk White |
| Specification | Specification |
| Screen Size | 32 inch |
| Active Display Area (mm) | 697.68mm(W)×392.25mm(H) |
| Display Mode | 16:09 |
| LCD Type | TFT-LCD |
| Resolution | 1920×1080 |
| Display Color | 16.7M |
| Brightness(nits) | 450nits |
| Brightness Control | Manual/Automatic optional |
| Contrast Ratio | 1200:01:00 |
| Viewing Angle | 178(H) /178(V) |
| Response Time | 6ms |
| Backlight | LED backlight |
| Touch screen | Standard (5-point Capacitive Touch) |
| Touch type | Capacitive Touch (PCAP) |
| Touch Max Resolution | 1920×1080 |
| Transparency | 90% |
| Scanning Speed | 40Scans/S |
| Response Speed | <10ms |
| Touch precision | 1mm |
| Minimum Touch | 10 points |
| Operation Parameters | Operation Parameters |
| Operation System | Windows 10/11 |
| Android 11.0/12.0 | |
| Working humidity | 10% to 85% (non-condensing) |
| Storage humidity | 5%~90% (non-condensing) |
| Temperature Control System | Natural heat dissipation (high-efficiency heat dissipation structure) |
| Power Supply | AC 100V-240V, 50HZ/60HZ |
| Power consumption | 120W |
| Main Function | Touch interactive inquiry |
| USB/remote content update, data synchronization | |
| Support HD video, pictures, and interactive media | |
| Set up time on/off, remote management | |
| Built-in 5W*2 speakers, audio output | |
| Anti-collision floor-standing structure, stable design | |
| Temperature | Storage:-20 Celsius degree to 60 Celsius degree |
| Working: 0 Celsius degree to 40 Celsius degree | |
| Fixing Method | Floor-Standing (height adjustable) |
| Waterproof Enclosure | Indoor dustproof (no IP rating) |
| Color | White (body and stand), custom color optional |
| Protection Glass | 4mm Tempered glass (anti-glare, anti-fingerprint) |
| Applicable field | Indoor public places, Office Buildings, Banks, Hospitals, Schools, Shopping Malls etc. |
| Available operating systems | Available operating systems |
| Android version | Quad Core, RK3568A chipset, 4G RAM+32G ROM, Android 11.0 wifi, Bluetooth supported, 2.0GHz I/O：HDMI+USB OTG+USB 3.0+LAN+AUDIO+TF |
| Hexa CoreRK3399E, 4G RAM+32G ROM, Android 11.0，wifi, Bluetooth supported, 2.0GHz，I/O：HDMI+USB 3.0+LAN+AUDIO+TF+SIM | |
| Octa Core, RK3588A chipset, 8G RAM+64G ROM, Android 11.0 wifi, Bluetooth supported, 2.2GHz I/O：HDMI+USB 3.0+USB OTG+LAN+AUDIO+TF | |
| Windows version | I3 CPU,8G RAM,128G SSD, integrated GPU, wifi, RJ45 supported, win10 Pro trial os |
| I/O：HDMI+VGA+2*USB3.0+2*USB2.0+LAN+AUDIO | |
| I5 CPU,8G RAM,128G SSD, integrated GPU, wifi, RJ45 supported, win10 Pro trial os | |
| I/O：HDMI+VGA+2*USB3.0+2*USB2.0+LAN+AUDIO | |
| I7 CPU,8G RAM,128G SSD, integrated GPU, wifi, RJ45 supported, win10 Pro trial os | |
| I/O：HDMI+VGA+2*USB3.0+2*USB2.0+LAN+AUDIO |
Competitive Advantage
White Aesthetic & Stable Structure: The all-white design integrates seamlessly with various indoor decors, while the floor-standing structure with anti-collision features ensures stability in high-traffic areas, balancing beauty and practicality.
Precise Capacitive Touch Interaction: Standard 10-point capacitive touch screen (PCAP) with <10ms response speed and 1mm precision, ensuring smooth, sensitive human-machine interaction for inquiry scenarios.
Interactive-Optimized Configuration: Pre-installed Android/Windows systems tailored for inquiry software, with sufficient RAM/ROM and multiple I/O interfaces, supporting customized program development and data synchronization.
Reliable Performance: Adopts premium components and optimized heat dissipation, supporting long-term stable operation with anti-theft lock and overload protection, adapting to high-frequency use in indoor venues.
Easy Deployment & Maintenance: No complex installation required (floor-standing design), with USB/remote content update and touch calibration functions, reducing later operation and maintenance costs.
32-Inch Large-Screen Advantage: FHD resolution with 450nits brightness delivers strong visual impact, ensuring clear content presentation from all angles, ideal for indoor areas requiring prominent interactive displays.
