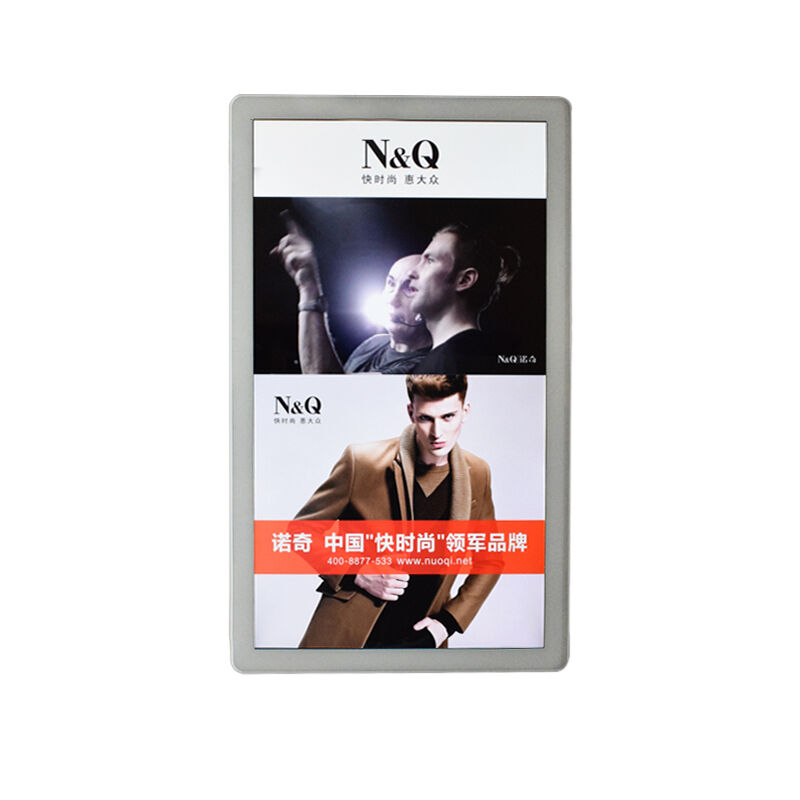

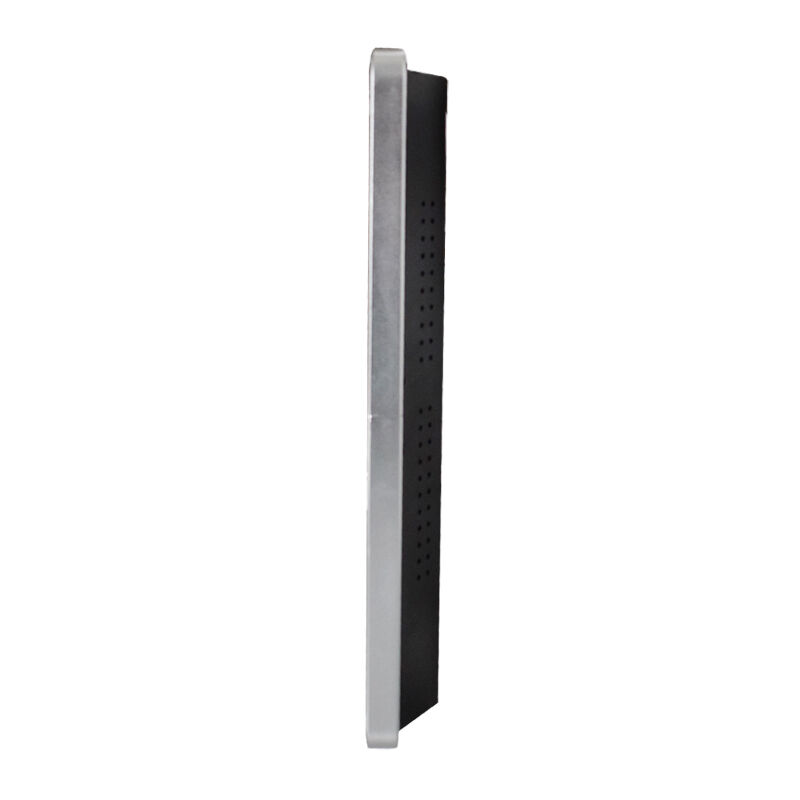

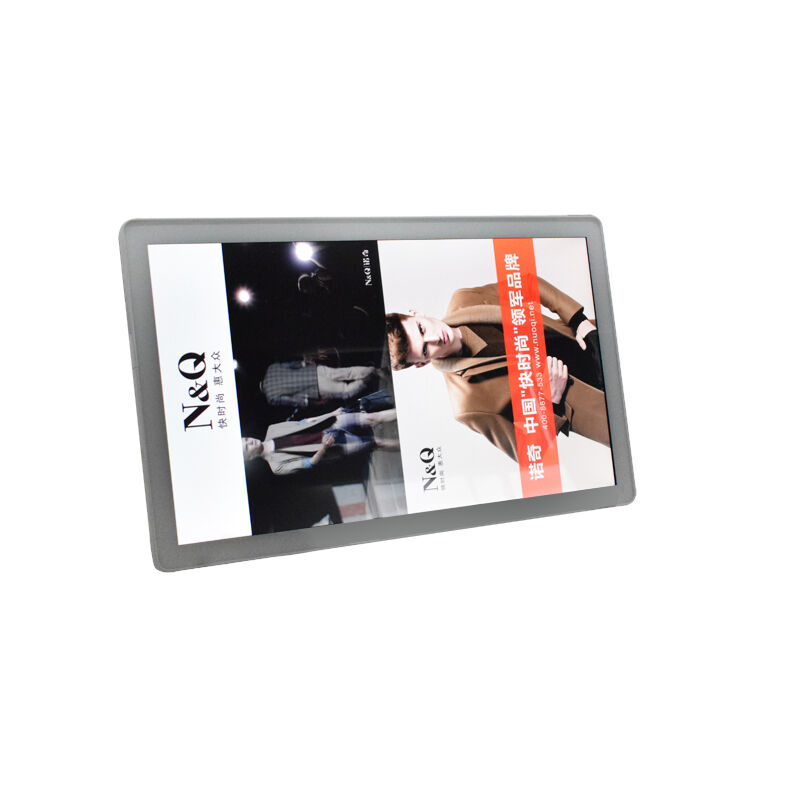

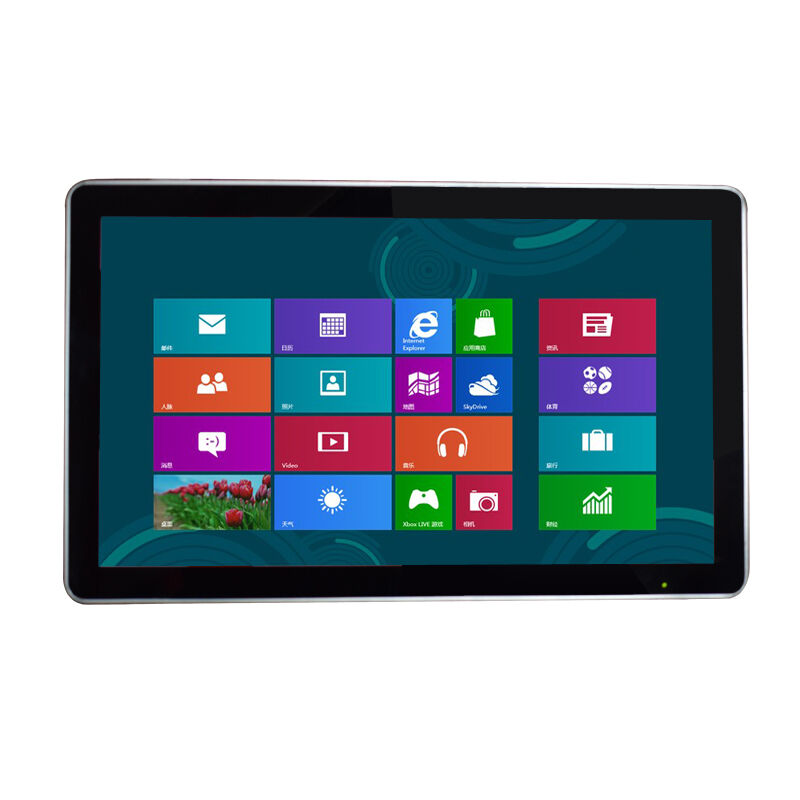

Product Title (Name): 27'' FHD Industrial-Grade Wall Mount Digital Signage for Indoor Commercial Use with Multi-OS Support
- Overview
- Recommended Products
Product General Information
| Place of Origin | CHINA |
| Brand Name | AWSTOUCH |
| Model Number | A27-IPB01 |
| Certification | CE,RoSH |
Product Introduction
Quick Detail:
1. Alternative Names of the Product
•Indoor Wall Mount Digital Signage
•Compact Advertising Display
•Indoor LCD Signage
•Desktop Wall-Mounted Terminal
•Multi-Format Media Display
2. Main Applications
•Retail Stores: Showcase product promotions, discounts, and new arrivals at store entrances or product shelves to attract customer attention.
•Offices & Corporate Spaces: Display company culture, internal announcements, and meeting schedules in lobbies or corridors for employees and visitors.
•Hotels & Hospitality: Provide room information, service guides, local travel recommendations, and event notices for hotel guests.
•Financial Institutions: Share financial news, service introductions, queue status, and safety tips in bank lobbies.
•Educational Institutions: Display campus notices, course schedules, activity promotions, and educational content in school hallways or classrooms.
Description
The 27'' Wall Mount Display is a sleek and high-performance FHD digital signage specially designed for indoor commercial scenarios. Featuring 1920×1080 (FHD) high-definition resolution and 400nits brightness, it presents vivid, detailed visuals with excellent color reproduction, delivering a striking visual impact that can effectively capture the attention of passersby even in brightly lit large spaces. Crafted with high-quality industrial-grade hardware, this display supports 24/7 uninterrupted stable operation, perfectly adapting to the continuous working needs of large retail malls, corporate reception areas, hotel lobbies, and campus public zones. It offers diversified operating system options (Standalone/Android/Windows) to match different functional requirements and budget plans, enabling seamless playback of various mainstream media formats such as JPG, PNG, BMP images and AVI, MP4, MOV videos. The wall-mounted design not only maximizes space utilization by saving floor and counter space but also allows for flexible installation angle adjustment, ensuring optimal viewing effects for audiences from different positions. Equipped with user-friendly functions like automatic cycle playback, USB quick content update, timed on/off setting, and wireless remote control, it greatly reduces the difficulty of daily content management and maintenance. In addition, a variety of optional expansion modules (Thermal Printer, NFC Reader, 2D Barcode Scanner, etc.) are provided to realize personalized customization, making it a versatile and reliable advertising and information release solution for medium and large indoor venues.
Applications
Retail Stores，Offices & Corporate Spaces，Hotels & Hospitality，Financial Institutions，Educational Institutions
Specifications
| 27 Wall Mount Display | 27 Wall Mount Display |
| Specification | Specification |
| Model | A27-IPB01 |
| Screen Size | 27 inch |
| Active Display Area (mm) | 597.8mm(W)×336.3mm(H) |
| Display Mode | 16:09 |
| LCD Type | TFT-LCD |
| Resolution | 1920×1080 |
| Display Color | 16.7M |
| Brightness (nits) | 400nits |
| Brightness Control | Manual/Automatic optional |
| Contrast Ratio | 1200:01:00 |
| Viewing Angle | 178°(H) / 178°(V) |
| Response Time | 5ms |
| Backlight | LED backlight |
| Touch type | Capacitive touch |
| Transparency | 90% |
| Scanning Speed | 40Scans/S |
| Response Speed | <10ms |
| Touch precision | 1920×1080 |
| Minimum Touch | 5 points (optional) |
| Operation Parameters | Operation Parameters |
| Operating System | Standalone (no system) / Android 11.0 / Android 12.0 / Windows 10/11 |
| Working Humidity | 10% to 85% (non-condensing) |
| Storage Humidity | 5% to 90% (non-condensing) |
| Temperature Control System | Natural heat dissipation (industrial-grade heat dissipation structure) |
| Power Supply | AC 100V-240V, 50HZ/60HZ |
| Power Consumption | 30W~60W (varies by configuration) |
| Main Function | Playing file automatically |
| With USB update | |
| Support HD video, pictures and music | |
| Set up time on/off | |
| Support Remote controller | |
| Smart Control System | Industrial-grade power switch |
| Built-in 5W*2 speakers | |
| Overload protection | |
| Cooling & Heating System | Natural heat dissipation, optimized heat dissipation structure |
| Temperature | Storage: -20 Celsius degree to 60 Celsius degree |
| Working: 0 Celsius degree to 40 Celsius degree | |
| Fixing Method | Wall Mount |
| Color | Black color/white color/gray color optional |
| Protection Glass | 4mm Tempered glass |
| Applicable Field | Indoor public places, Retail stores, Offices, Hotels, Banks, Schools, Commercial buildings etc. |
| Available Operating Systems | Available Operating Systems |
| Standalone version (no system) | 1*USB、1*SD、1*HDMI |
| Android version | RK3568A Quad Core, 4G RAM+32G ROM, Android 11.0，wifi, Bluetooth supported, 2.0GHz，I/O：HDMI+USB OTG+USB HOST+LAN+AUDIO+TF |
| RK3399E Hexa Core, 4G RAM+32G ROM, Android 11.0，wifi, Bluetooth supported, 2.0GHz，I/O：HDMI+USB 3.0+LAN+AUDIO+TF+SIM | |
| RK3588A Octacore, 8G RAM+64G ROM, Android 12.0，wifi, Bluetooth supported, 2.2GHz，I/O：HDMI+USB 3.0+USB OTG+LAN+AUDIO+TF+SIM | |
| Windows version | Intel i3 CPU, 8G RAM, 128G SSD, integrated GPU, wifi, RJ45 supported, Windows 10/11，I/O：HDMI+VGA+2USB3.0+1USB2.0+LAN+AUDIO |
| Intel i5 CPU, 8G RAM, 128G SSD, integrated GPU, wifi, RJ45 supported, Windows 10/11，I/O：HDMI+VGA+2USB3.0+2USB2.0+LAN+AUDIO | |
| Intel i7 CPU, 8G RAM, 128G SSD, integrated GPU, wifi, RJ45 supported, Windows 10/11，I/O：HDMI+VGA+2USB3.0+2USB2.0+LAN+AUDIO |
Competitive Advantage
•Superior Large-Screen Visual Experience: The 27-inch large display delivers immersive visual effects and wide coverage, making it easy to stand out in large indoor spaces. Its wall-mounted design avoids occupying valuable floor space, perfectly balancing display effect and space utilization.
•Reliable Industrial-Grade Performance: Adopting industrial-grade core components and optimized heat dissipation structure, it ensures stable and durable operation even in long-term high-intensity working environments, effectively extending the product service life.
•Flexible and Diversified Configurations: Covering Standalone, Android, and Windows multiple system versions, with a full range of processor options from single-chip to Intel i7, it can accurately match the functional needs and budget of different customers.
•Rich Customization Expansion Capabilities: A complete set of optional functional modules is available, which can be customized according to specific business scenarios (such as retail payment, access control verification), greatly enhancing the product's adaptability.
•Simple and Efficient Operation and Maintenance: The humanized functional design covers the whole process of content release and equipment management. Both USB local update and remote control operation are easy to get started, reducing the later operation and maintenance costs.
Tag
27 Wall Mount Display，FHD Large-Screen Signage，Industrial-Grade Commercial Display，Wall Mount Digital Signage，Multi-OS Media Player
