Product General Information
Place of Origin |
CHINA |
Brand Name |
AWSTOUCH |
Model Number |
A43-FS005 |
Certification |
CE, RoSH, FC, ISO9001 |
Product Introduction
Quick Detail:

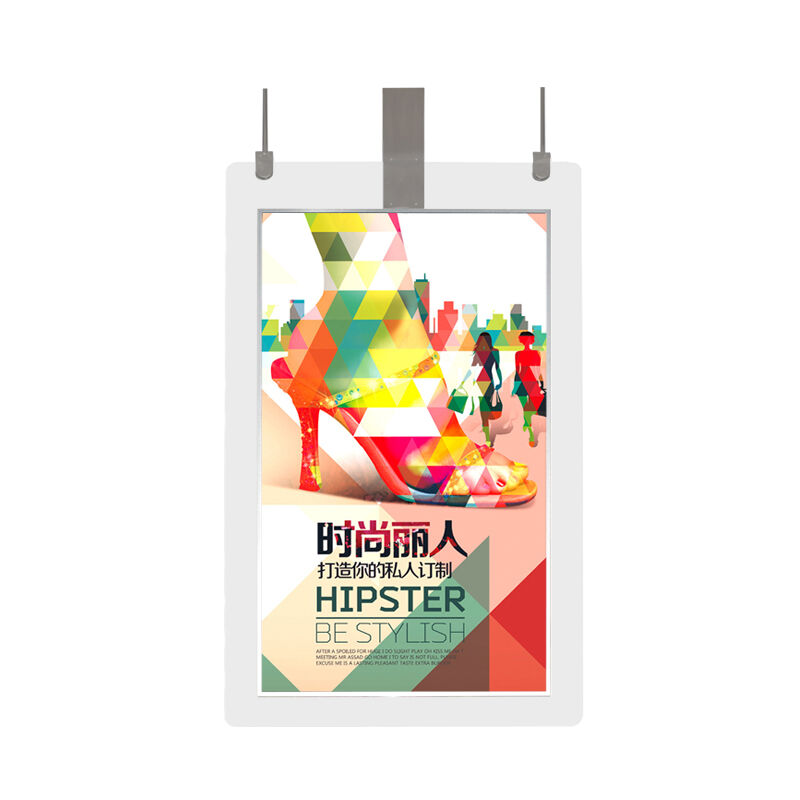

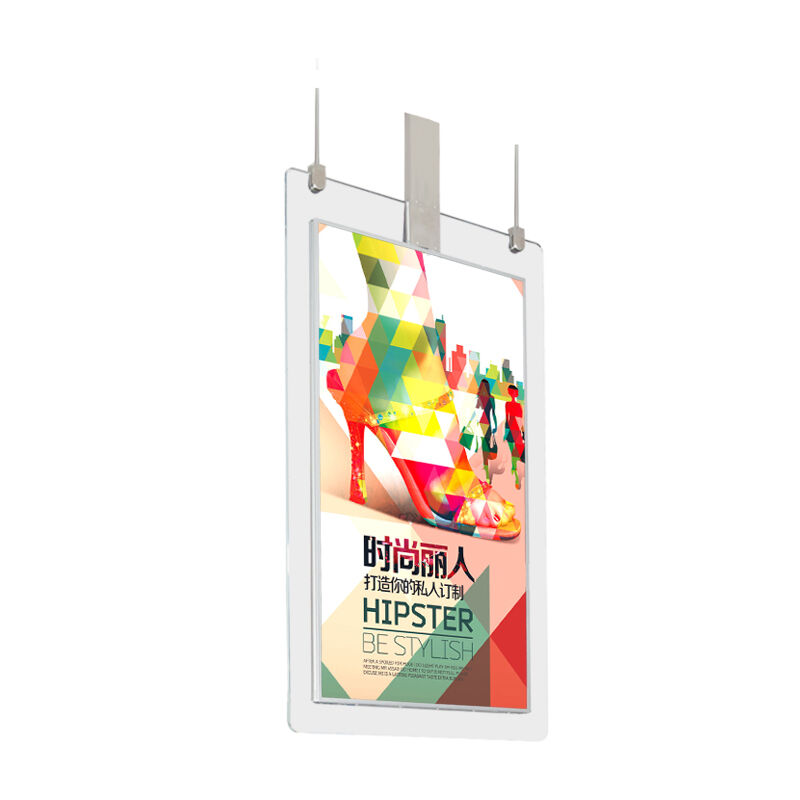

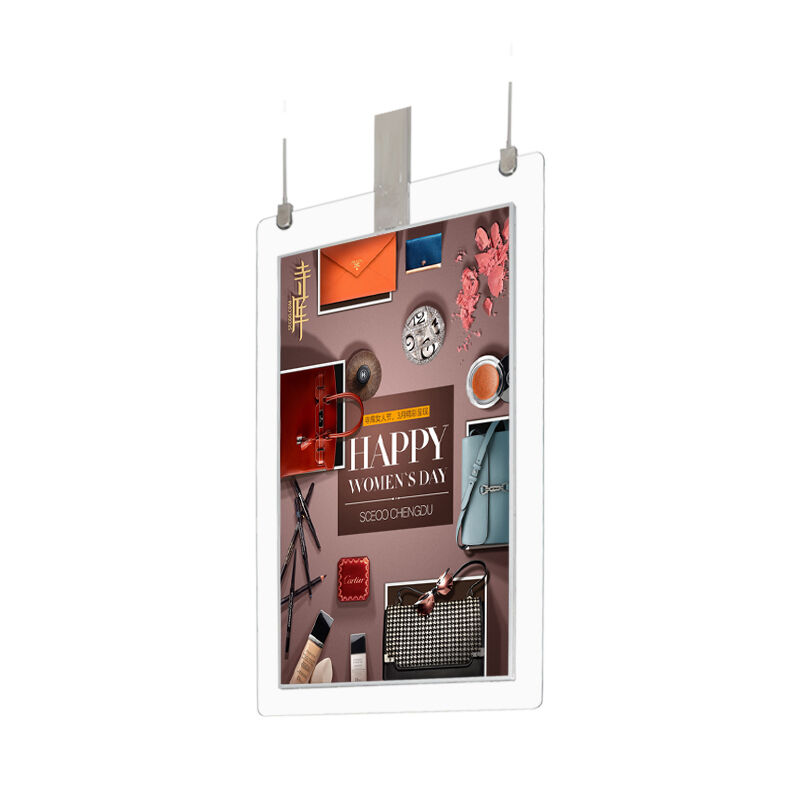

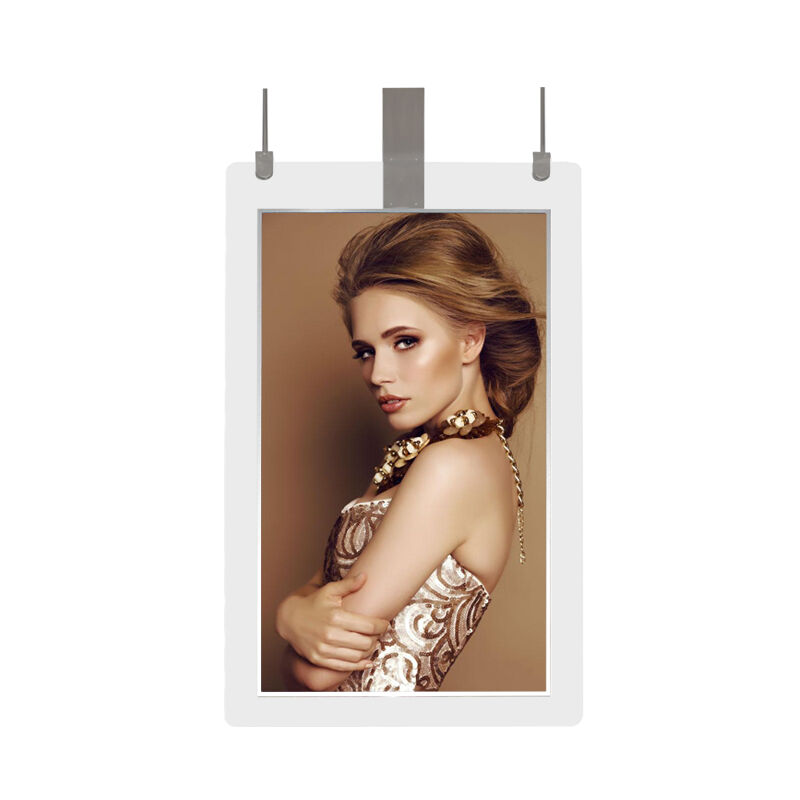

•43" Ultra-Thin OLED Dual-Side Ad Display
•Ceiling Mounted Digital Signage
•FHD OLED Dual-Screen Synchronous Player
•Ultra-Slim Body Indoor Advertising Terminal
•Remote-Controlled OLED Ad Player
Description:
The 43" Ultra-Thin OLED Dual-Side Ceiling Mounted Advertising Display (Model: A43-OLED-C001) is a high-end digital signage tailored for indoor commercial advertising scenarios. Adopting 43-inch OLED dual screens with FHD (1920×1080) resolution, it delivers exceptional image quality—boasting 1,000,000:1 ultra-high contrast, 350nits brightness, and 178° full viewing angles, ensuring vivid, true-to-life colors and clear details from any perspective on both sides. With an ultra-slim body (only 7.8mm thick), it features a sleek, space-saving design that blends seamlessly with various indoor decors, ideal for ceiling installation in high-traffic areas without occupying floor or wall space.
Powered by Android 12.0 system (Windows 11 optional), the display supports dual-screen synchronous/asynchronous playback, enabling flexible content management for different ads on each side. It supports HD media playback (videos, images, audio, text) and convenient content updates via USB, network or infrared remote control. Equipped with optimized heat dissipation structure and premium OLED panels, it ensures 24/7 stable operation with low power consumption. User-friendly functions include scheduled on/off, remote monitoring, brightness adjustment, and anti-theft ceiling brackets, simplifying daily management and reducing maintenance costs. It is widely applicable to commercial venues requiring dual-side advertising exposure, providing efficient information dissemination and brand promotion.
Applications:
•Shopping Malls: Display product promotions, store guides, and brand ads on both sides to cover more shoppers in corridors and atriums.
•Airports & Stations: Deliver flight/train schedules, public notices, and commercial ads simultaneously for passengers in waiting areas.
•Hotels & Office Buildings: Show service information, event notices, and corporate culture on dual sides in lobbies, corridors, and elevators.
•Retail Stores: Promote new products and special offers on both sides to attract customers from different directions in aisles.
•Subway & Metro Stations: Broadcast public service ads and commercial content dual-sided to reach commuters efficiently in passages.
Specifications:
43" Ultra-Thin OLED Dual-Side Ad Display |
43" Ultra-Thin OLED Dual-Side Ad Display |
Specification |
Specification |
Model |
A43-FS005 |
Screen Size |
43 inch (dual-side OLED panels) |
Active Display Area (mm) |
941.18mm(W)×529.42mm(H) per side |
Display Mode |
16:9 (dual-side, synchronous/asynchronous optional) |
Screen Type |
OLED (self-luminous, no backlight) |
Resolution |
1920×1080 (FHD) per side |
Display Color |
16.7M (100% NTSC color gamut) |
Brightness (nits) |
350nits per side (adjustable) |
Brightness Control |
Manual/Automatic/Remote controllable |
Contrast Ratio |
1,000,000:1 (ultra-high OLED contrast) |
Viewing Angle |
178°(H) / 178°(V) per side, no color distortion |
Response Time |
0.1ms (OLED ultra-fast response) |
Body Thickness |
7.8mm (ultra-slim design) |
Installation Method |
Ceiling Mounted (adjustable angle, anti-theft bracket) |
Operating System |
Android 12.0 (Windows 11 optional) |
Working Humidity |
10% - 85% (non-condensing) |
Storage Humidity |
5% - 90% (non-condensing) |
Temperature Control System |
Ultra-thin integrated heat dissipation (low power consumption) |
Power Supply |
AC 100V-240V, 50HZ/60HZ |
Power Consumption |
120W (max, dual-side operation) |
Working Temperature |
0℃ - 40℃ |
Storage Temperature |
-20℃ - 60℃ |
Color |
Black/White (ultra-slim frame, customizable) |
Protection Glass |
2.5mm Tempered Glass (anti-scratch, anti-fingerprint) |
Main Functions |
Dual-side sync/async playback, USB/network/remote content update, scheduled on/off, remote monitoring, brightness adjustment, anti-theft design |
I/O Interfaces (Android Version) |
HDMI+USB 3.0+USB OTG+LAN+AUDIO+TF (support dual-screen signal output) |
I/O Interfaces (Windows Version) |
HDMI+VGA+2×USB3.0+LAN+AUDIO (support dual-screen independent control) |
•OLED Premium Image Quality: 1,000,000:1 ultra-high contrast, 100% NTSC gamut, and 0.1ms response deliver vivid, lifelike visuals with no motion blur.
•Ultra-Thin & Dual-Side Design: 7.8mm slim body + dual-side display maximize advertising exposure while saving space, perfect for ceiling installation.
•Flexible Playback Modes: Support dual-screen synchronous/asynchronous playback, enabling diverse ad combinations for different target audiences.
•Easy Remote Management: Infrared remote + network control for content update, brightness adjustment, and device monitoring without on-site operation.
•Energy-Saving & Stable: OLED low power consumption + integrated heat dissipation support 24/7 long-term stable operation, reducing operating costs.
•Wide Application Scope: Ceiling-mounted design adapts to various indoor commercial venues, providing efficient dual-side brand promotion and information dissemination.
Tag:
43" OLED Dual-Side Ad Display, Ultra-Thin Ceiling Signage, FHD OLED Advertising Player, Dual-Screen Digital Signage, Remote-Controlled Ad Terminal
