- Compact Electronic Water Sign
- 32'' Indoor Digital Display
- Small-Size Indoor LCD Advertising Terminal
- Portable Indoor Information Kiosk
- Indoor Electronic Signage
- Small Retail Stores & Boutiques: Showcase promotions, new arrivals, and membership offers to passersby and in-store customers.
- Catering Venues: Cafés, restaurants, and food courts display menus, daily specials, and discount information clearly.
- Service Establishments: Hotels, banks, and salons provide service guidelines, queue information, and brand promotions.
- Community & Campus: Residential areas, schools, and universities deliver notices, event reminders, and public welfare information.
- Pop-Up Shops & Temporary Events: Portable and easy-to-install for short-term promotions, exhibitions, and roadshows.
- Reliable Indoor Performance: Sleek dustproof enclosure and optimized working temperature range (0℃ to 55℃) ensure stable operation in various indoor environments such as stores, restaurants and campuses.
- Clear Visibility in Indoor Lighting:300-1500 nits high brightness adapts to different indoor light conditions, paired with FHD resolution, delivering sharp and vivid content that captures audience attention instantly.
- Simple & Convenient Operation: Supports USB content update and remote controller operation, no complex software or cloud management required, easy to get started.
- Compact & Flexible Installation: 32-inch compact design fits limited indoor spaces; supports floor standing and wall mounting (optional), adapting to diverse indoor usage scenarios.
- Energy-Saving & Cost-Effective: Low power consumption (150W) and industrial-grade hardware reduce long-term maintenance and operational costs compared to traditional signage.
- Optional Interactive Experience: 10-point capacitive touch function (available) enables user interaction, perfect for interactive menus, promotional displays, and customer engagement activities.
Product General Information
Place of Origin |
CHINA |
Brand Name |
AWSTOUCH |
Model Number |
A32-OFS02 |
Certification |
CE, FCC, RoHS |
Product Introduction
Quick Details
Alternative Names of the Product
Main Applications
Description

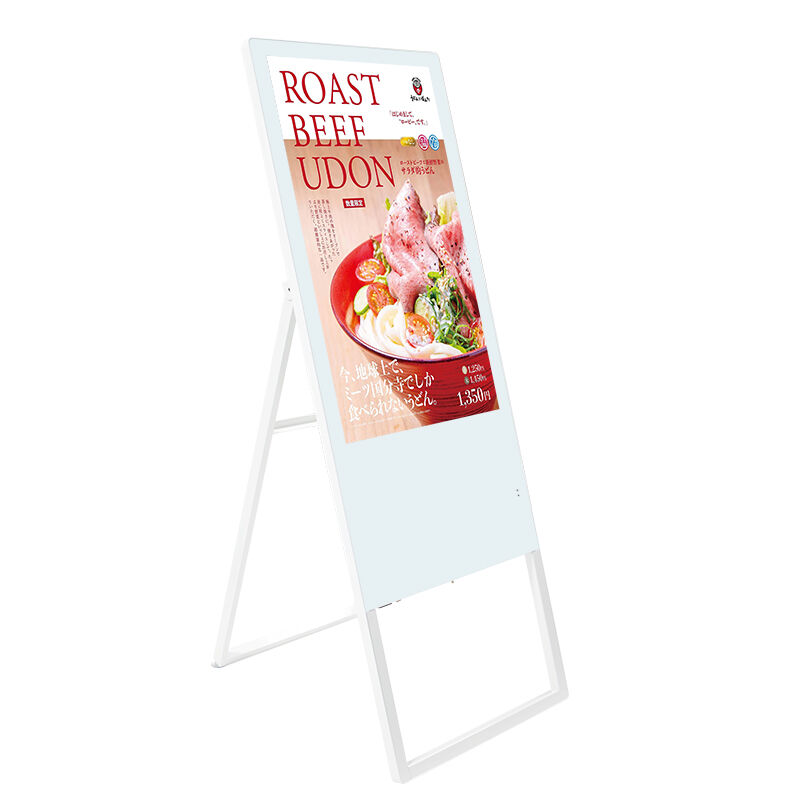

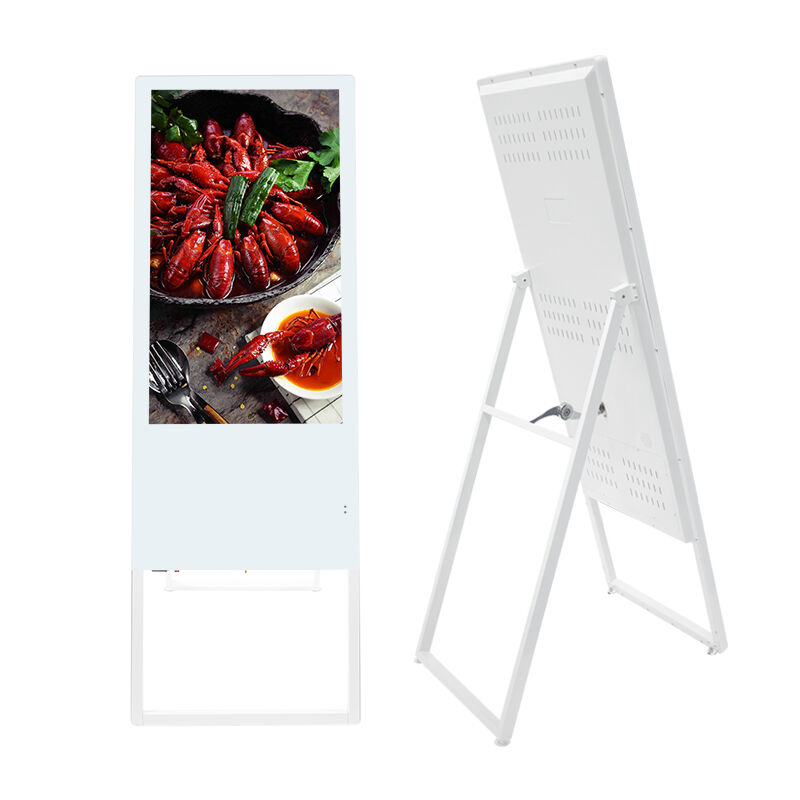

This 32'' compact electronic water sign is specially designed for indoor use, featuring a sleek and space-saving design that fits perfectly in various indoor commercial and public scenarios. Equipped with 300-1500 nits high brightness and FHD 1920×1080 resolution, it ensures vivid and clear content visibility in different indoor lighting conditions. It offers flexible installation methods and rugged industrial-grade hardware, paired with intelligent temperature control and energy-saving design, making it a cost-effective and reliable advertising and information display solution for various indoor scenarios.
Specifications
32'' Indoor Digital Signage |
|
Specification |
Detail |
Model |
A32-OFS02 |
Screen Size |
32inch |
Active Display Area (mm) |
708.48mm(W) × 398.52mm(H) |
Display Mode |
16:9 |
LCD Type |
TFT-LCD |
Resolution |
1920×1080 (FHD) |
Brightness(nits) |
300nits~1500nits supported |
Brightness Control |
Automatic light sensor system |
Contrast Ratio |
1400:1 |
Viewing Angle |
178(H) / 178(V) |
Response Time |
8ms |
Backlight |
LED backlight |
Touch Screen (Optional) |
Detail |
Touch Type |
PCAP/TOUCH FOIL |
Touch Max Resolution |
1920×1080 |
Transparency |
90%, Up to 100% |
Scanning Speed |
50Scans/S |
Response Speed |
<12ms |
Touch Precision |
0.625mm |
Minimum Touch |
10 points |
Operation Parameters |
Detail |
Operating System |
Optional: Android (RK3568A) / X86 (I3/I5/I7) / Standalone (No pre-installed system, support external signal input) |
Power Supply |
AC 110V-240V, 50HZ/60HZ |
Power Consumption |
150W |
|
Main Functions |
Automatic file playback |
USB content update | |
Support HD videos, images, and music | |
Scheduled on/off setting | |
Remote controller support | |
|
Basic Control System |
Industrial-grade power switch |
Built-in 10W×2 speakers | |
Version Details |
Specification |
Android Version (RK3568A) |
Quad Core, 2.0GHz; 4G/8G RAM + 32G/64G ROM; Android 11.0; WiFi, Bluetooth 4.0 supported; I/O: HDMI+USB OTG+USB 3.0+LAN+AUDIO+TF+SIM+DCIN+OTG |
X86 Version (I3) |
I3 CPU, 2.4GHz, DDR4; 4G/8G RAM + 128G/256G SSD; integrated GPU; WiFi, RJ45 supported; Windows 10 Pro trial OS; I/O: DC12V+HDMI+VGA+2×USB3.0+2×USB2.0+LAN+2×AUDIO |
X86 Version (I5) |
I5 CPU, 2.5GHz (turbo 3.1GHz), DDR4; 8G/16G RAM + 256G/512G SSD; integrated GPU; WiFi, RJ45 supported; Windows 10 Pro trial OS; I/O: DC12V+HDMI+VGA+2×USB3.0+2×USB2.0+LAN+2×AUDIO |
X86 Version (I7) |
I7 CPU, 2.9GHz (turbo 3.6GHz), DDR4; 8G/16G RAM +256G SSD/512GB SSD; integrated GPU; WiFi, RJ45 supported; Windows 10 Pro trial OS; I/O: DC12V+HDMI+VGA+2×USB3.0+2×USB2.0+LAN+2×AUDIO |
Standalone Version |
1×USB, 1×SD, 1×HDMI (support external signal input, no pre-installed software) |
Fixing Method |
Floor standing / Wall mounting (optional) |
Enclosure |
Sleek indoor enclosure, dustproof |
Color |
Black / White / Gray (optional) |
Protection Glass |
6mm Tempered glass (anti-glare coating optional) |
Applicable Field |
Small retail stores, restaurants, hotels, communities, campuses, etc. |
Tags
Compact Digital Water Sign, 32'' Indoor Digital Signage, Small Indoor Advertising Display, Portable Electronic Sign, Indoor LCD Terminal
