55 - Inch High - Brightness Weatherproof Industrial - Grade Outdoor Commercial Digital Advertising Display Screen
- Overview
- Recommended Products
Product General Information
| Place of Origin | CHINA |
| Brand Name | AWSTOUCH |
| Model Number | A55-FD001 |
| Certification | CE, RoSH, FC, ISO9001, IP65 |
Product Introduction
Quick Detail:
• 55-inch IP65 Outdoor Weatherproof Digital Signage
• 1500nits High-Brightness Anti-Glare Display
• Android/Windows Dual OS Outdoor Ad Terminal
• UV-Proof Rugged Outdoor Weatherproof Signage
• 24/7 Stable Operation Outdoor Digital Display
Description:

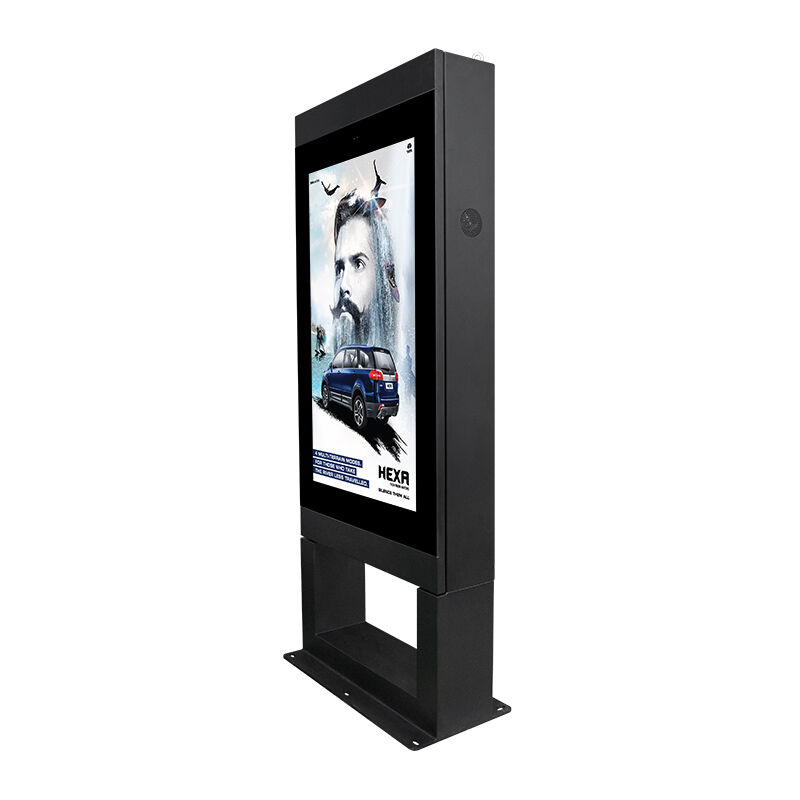

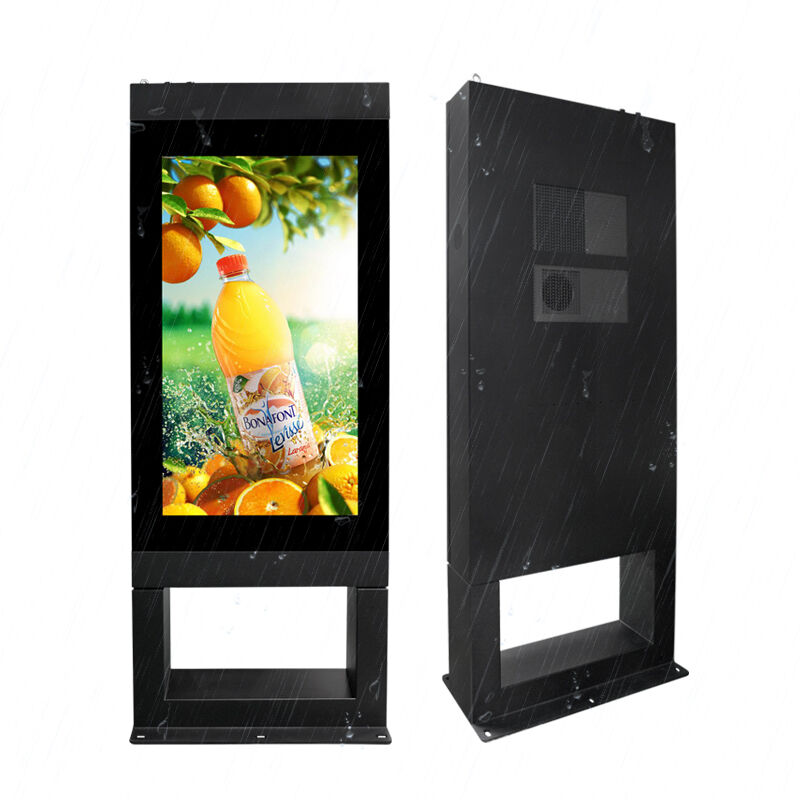

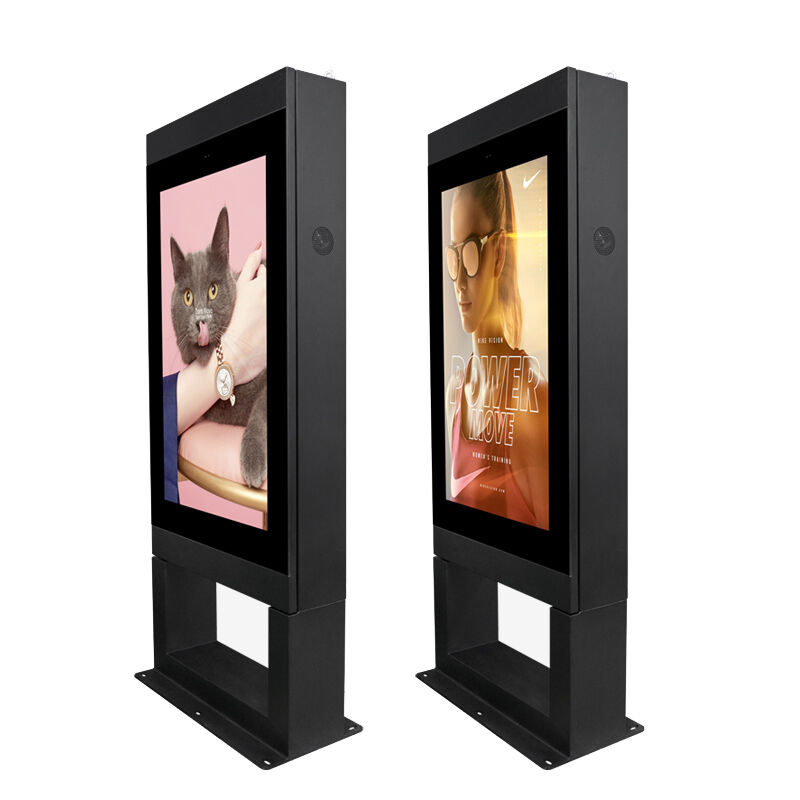

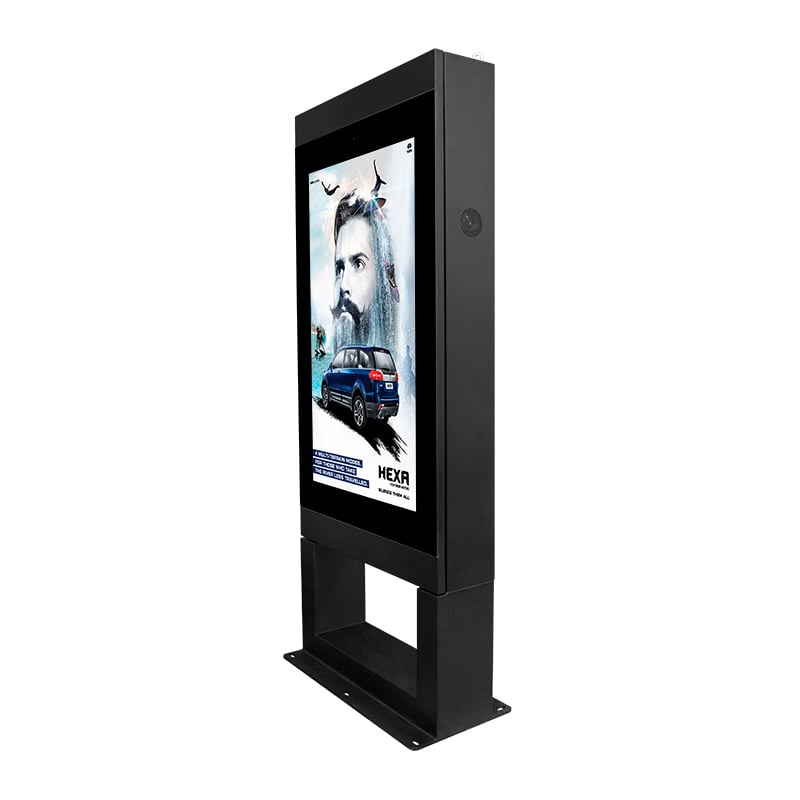

The 55-inch Outdoor Digital Signage (Model: A55-FD001) is a rugged, high-performance advertising terminal engineered for harsh outdoor environments. Featuring a 55-inch FHD (1920×1080) TFT-LCD display with 1500nits ultra-high brightness and anti-glare coating, it delivers clear, vivid visuals even under direct sunlight—effectively reducing reflection and ensuring readability from all angles. With IP65 dustproof and waterproof certification, the signage is fully sealed with a corrosion-resistant rugged shell and 4mm tempered glass panel, protecting internal components from rain, dust, and humidity. It also boasts UV-resistant treatment to prevent color fading and shell aging, adapting to extreme temperature ranges (-20℃ to 50℃) for year-round reliable use.
Powered by Android 11.0/12.0 or Windows 10/11 (dual OS optional), the signage supports HD media playback (videos, images, audio, text) and flexible content management. Android version comes with Quad Core RK3568 (4G RAM+32G ROM) or Octa Core RK3588A (8G RAM+64G ROM), while Windows version offers Intel I3/I5/I7 CPU options (8G RAM+128G SSD), meeting diverse performance needs. Content updates are convenient via USB, 4G/WiFi/network, or remote control, and user-friendly functions include scheduled on/off, brightness auto-adjustment (via light sensor), remote monitoring, and surge protection. Equipped with a dual heat dissipation system (forced air cooling + natural convection), it ensures 24/7 stable operation with low power consumption, making it an ideal solution for outdoor brand promotion and information dissemination.
Applications:
• Commercial Streets & Squares: Display product promotions, brand ads, and public notices in high-traffic outdoor areas.
• Bus Stops & Subway Entrances: Deliver real-time traffic information, route guides, and commercial ads for commuters.
• Scenic Spots & Parks: Provide tourist navigation, attraction introductions, and safety reminders for visitors.
• Gas Stations & Parking Lots: Show service information, fuel prices, and convenience store promotions.
• Residential Communities & Commercial Districts: Broadcast public service ads, event notices, and community information for residents and passersby.
Specifications:
| 55-inch Outdoor Digital Signage | 55-inch Outdoor Digital Signage |
| Specification | Specification |
| Screen Size | 55 inch (TFT-LCD, FHD) |
| Active Display Area (mm) | 1209.6mm(W)×680.4mm(H) |
| Display Mode | 16:09 |
| Brightness (nits) | 1500nits (auto-adjustable via light sensor) |
| Anti-Glare Treatment | Yes, anti-reflective coating + tempered glass |
| Protection Grade | IP65 (dustproof, waterproof) |
| Shell Material | Rugged engineering plastic + metal reinforcement (corrosion-resistant, UV-resistant) |
| Protection Glass | 4mm Tempered Glass (anti-scratch, shatterproof) |
| Resolution | 1920×1080 (FHD) |
| Display Color | 16.7M (92% NTSC color gamut) |
| Contrast Ratio | 1500:01:00 |
| Viewing Angle | 178°(H) / 178°(V) |
| Response Time | 6ms |
| Backlight | LED backlight (energy-saving, long lifespan) |
| Operating System | Android 11.0/12.0 Windows 10/11 |
| Android Version Configuration | Quad Core, RK3568A chipset, 4G RAM+32G ROM, Android 11.0,wifi, Bluetooth supported, 2.0GHz,I/O：HDMI+USB OTG+USB 3.0+LAN+AUDIO+TF Hexa Core RK3399E, 4G RAM+32G ROM, Android 11.0，wifi, Bluetooth supported, 2.0GHz，I/O：HDMI+USB 3.0+LAN+AUDIO+TF+SIM Octa Core, RK3588A chipset, 8G RAM+64G ROM, Android 11.0,wifi, Bluetooth supported, 2.2GHz,I/O：HDMI+USB 3.0+USB OTG+LAN+AUDIO+TF |
| Windows Version Configuration | I3 CPU,8G RAM,128G SSD, integrated GPU, wifi, RJ45 supported,win10/11,I/O:HDMI+VGA+2USB3.0+2USB2.0+LAN+AUDIO I5 CPU,8G RAM,128G SSD, integrated GPU, wifi, RJ45 supported,win10/11,I/O:HDMI+VGA+2USB3.0+2USB2.0+LAN+AUDIO I7 CPU,8G RAM,128G SSD, integrated GPU, wifi, RJ45 supported,win10/11,I/O:HDMI+VGA+2USB3.0+2USB2.0+LAN+AUDIO |

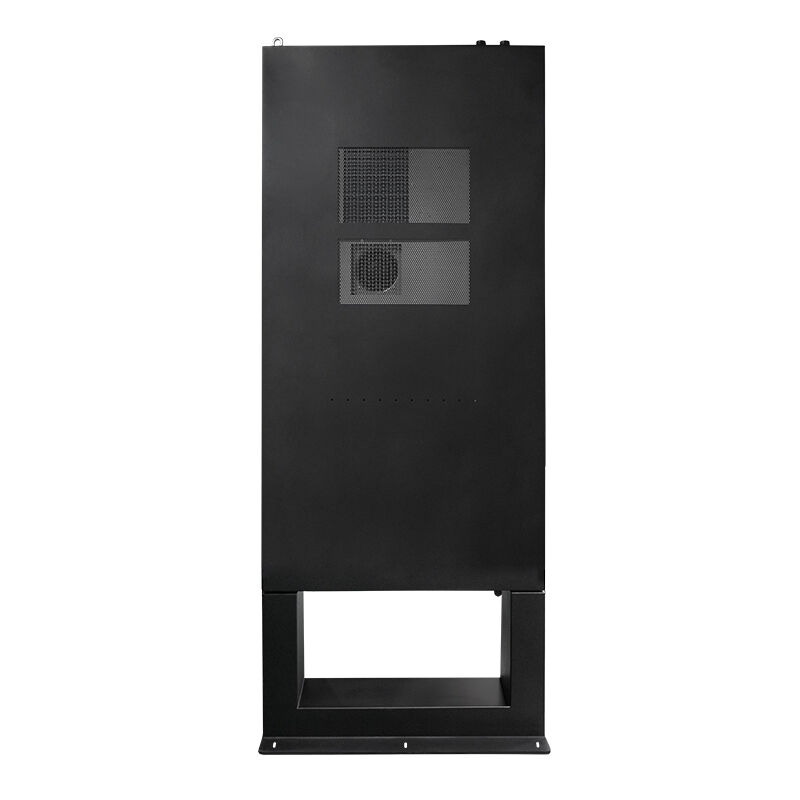

| Heat Dissipation System | Forced air cooling + natural convection (dustproof fan) |
| Working Temperature | -20℃ - 50℃ |
| Storage Temperature | -30℃ - 60℃ |
| Working Humidity | 10% - 90% (non-condensing) |
| Storage Humidity | 5% - 95% (non-condensing) |
| Power Supply | AC 100V-240V, 50HZ/60HZ (surge protection) |
| Power Consumption | 280W (max, full brightness) |
| Installation Method | Wall-Mounted/Floor-Standing/Pole-Mounted (optional) |
| Color | customizable |
| Main Functions | HD media playback, USB/network/remote content update, scheduled on/off, auto-brightness adjustment, remote monitoring, surge/overload protection |
Competitive Advantage:
• Ultra-High Brightness & Anti-Glare: 1500nits brightness + anti-reflective coating ensures clear visibility under direct sunlight, solving outdoor readability issues.
• IP65 Weatherproof Design: Fully sealed rugged shell + tempered glass protects against rain, dust, and humidity, adapting to harsh outdoor environments.
• Wide Temperature Adaptability: Operates stably from -20℃ to 50℃ with UV-resistant treatment, suitable for year-round outdoor use in different climates.
• Dual OS & Flexible Configuration: Android/Windows dual options + multiple CPU/RAM/ROM combinations meet diverse performance and software compatibility needs.
• Reliable 24/7 Operation: Dual heat dissipation system + surge protection + high-quality components support continuous long-term use, reducing downtime.
• Versatile Installation: Wall/floor/pole-mounted options adapt to various outdoor scenarios, maximizing advertising coverage without space limitations.
