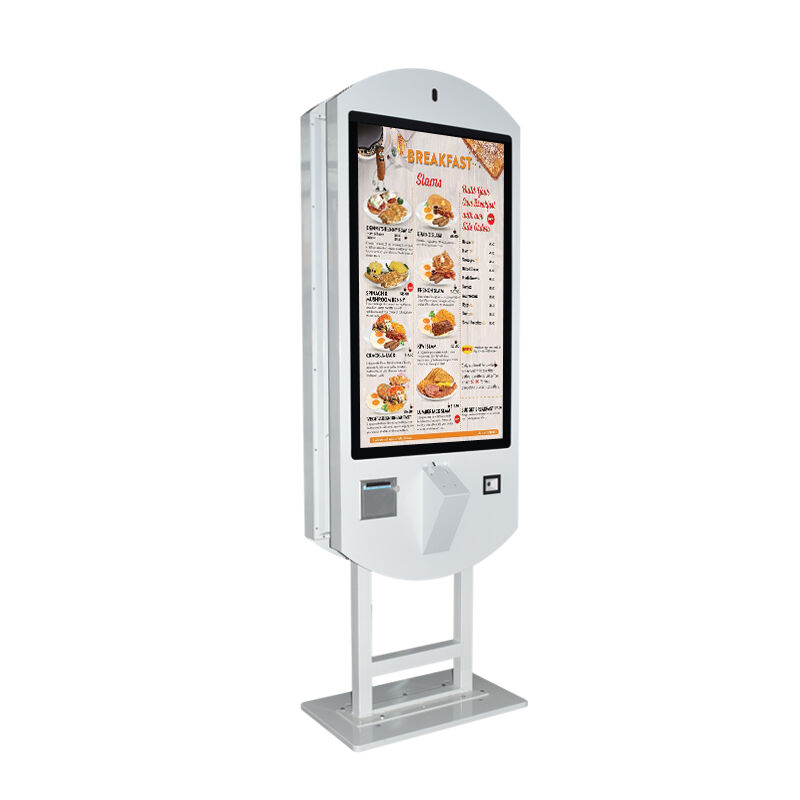

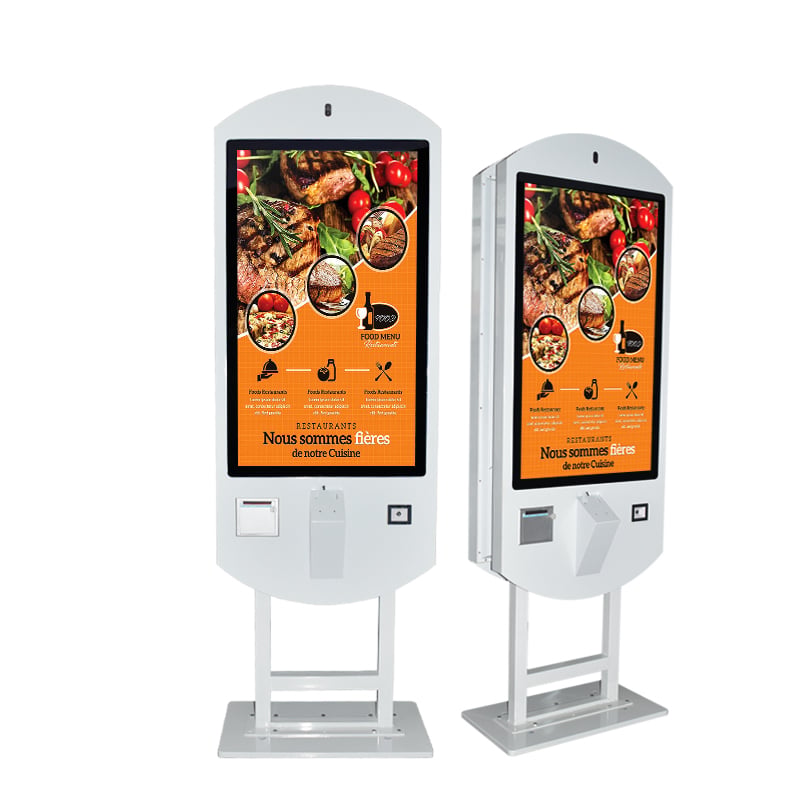

43'' Dual-Sided Self-Service Ordering Kiosk - Android RK3568A/Windows I3/I5/I7 FHD Interactive Catering Terminal
- Overview
- Recommended Products
Product General Information
| Place of Origin | CHINA |
| Brand Name | AWSTOUCH |
| Model Number | A43-FS001 |
| Certification | CE, FCC, ROHS |
Product Introduction
Quick Detail
Alternative Names of the Product
•43'' Dual-Sided Self-Service Ordering Kiosk
•Dual-Screen Catering Self-Order Terminal
•Interactive Restaurant Order & Payment Kiosk
•FHD Dual-Display Catering Service Terminal
•Commercial Grade Self-Service Dining Terminal
Main Applications
•Fast-Food Chains: Streamline self-ordering and payment processes, cut down queuing time by 60%, and reduce cashier workload significantly.
•Mid-to-High-End Restaurants: Display high-definition dish images, ingredient introductions and promotional videos on one side; enable customers to place orders, select tableware and make payments on the other side, enhancing brand image.
•Food Courts & Shopping Mall Catering Areas: Provide unified self-ordering services for multiple merchants, supporting cross-store order comparison and one-stop payment, improving customer shopping experience.
•Cafés & Milk Tea Shops: Support personalized order customization (sugar level, ice amount, additional toppings), integrate with membership systems for points accumulation and coupon redemption.
•Enterprise/School/Hospital Canteens: Adapt to peak dining hours, support meal card binding, facial recognition payment and fixed meal selection, improving dining efficiency and avoiding crowding.
Description
The 43-inch dual-sided self-service ordering kiosk is a professional catering service terminal tailored for the modern food and beverage industry, featuring high-definition dual-screen display and flexible system configuration options (Android RK3568A or Windows I3/I5/I7). Its innovative dual-sided design fully utilizes space resources: one side serves as the customer interaction terminal, supporting smooth self-ordering, payment, order inquiry and cancellation; the other side acts as a marketing display screen, showcasing dynamic promotional videos, popular dish rankings, seasonal offers and store culture to attract passing customers and increase secondary consumption. Equipped with a 10-point capacitive touch screen with anti-fingerprint and scratch-resistant coating, the kiosk ensures sensitive and accurate operation even in high-frequency use scenarios. It integrates multiple mainstream payment methods, including WeChat Pay, Alipay, credit card, meal card and facial recognition payment, meeting diverse customer needs. The terminal supports seamless docking with restaurant POS systems, kitchen printing systems, inventory management systems and membership management systems, realizing real-time synchronization of order data, automatic order printing and intelligent inventory warning. With built-in remote management software, merchants can remotely update menus, adjust prices, release promotions and view sales data (order quantity, sales volume, popular dishes) anytime and anywhere, reducing manual maintenance costs. Adopting industrial-grade hardware components and a dust-proof, anti-theft shell design, the kiosk can operate stably for a long time in complex catering environments (such as high temperature, oil fume and large passenger flow). Its sleek and modern appearance is highly compatible with various catering space styles, helping merchants optimize service processes, reduce labor costs by 30%-50%, improve order accuracy and enhance overall customer dining experience.
Specifications
43'' Dual-Sided Self-Service Ordering Kiosk |
Specifications |
Screen Size |
43 inches (dual-sided), 16:9 aspect ratio |
Active Display Area |
941.184mm (W) × 529.416mm (H) per screen |
LCD Type & Resolution |
Commercial-grade TFT-LCD, FHD 1920×1080 resolution, 16.7M display colors |
Brightness & Contrast |
300-500 nits (adjustable), 1500:1 contrast ratio |
Viewing Angle & Response Time |
178° horizontal / 178° vertical, 5ms response time |
Backlight |
LED backlight, lifespan ≥ 50,000 hours |
Touch Screen |
10-point capacitive touch (dual-sided), response time < 8ms, anti-fingerprint coating |
Operating System & Core Configuration |
Operating System & Core Configuration Comparison (Detailed) |
Android Version (RK3568A) |
Chipset: RK3568A Quad-Core; RAM & ROM: 4G+32G / 4G+64G (optional); System: Android 11.0; Network: WiFi (2.4G/5G), Bluetooth 5.0, RJ45 Ethernet; I/O Interface: HDMI, USB 3.0, USB OTG, LAN, AUDIO, TF Card Slot, DCIN |
Windows Version (I3) |
CPU: Intel Core I3; RAM: 8G DDR4; SSD: 128G; System: Windows 10 Pro; Network: WiFi (2.4G/5G), RJ45 Ethernet; I/O Interface: HDMI, VGA, 2×USB3.0, 2×USB2.0, LAN, Dual AUDIO |
Windows Version (I5) |
CPU: Intel Core I5; RAM: 8G DDR4; SSD: 128G / 256G (optional); System: Windows 10 Pro; Network: WiFi (2.4G/5G), RJ45 Ethernet; I/O Interface: HDMI, VGA, 2×USB3.0, 2×USB2.0, LAN, Dual AUDIO |
Windows Version (I7) |
CPU: Intel Core I7; RAM: 8G / 16G DDR4 (optional); SSD: 256G / 512G (optional); System: Windows 10 Pro; Network: WiFi (2.4G/5G), RJ45 Ethernet; I/O Interface: HDMI, VGA, 2×USB3.0, 2×USB2.0, LAN, Dual AUDIO |
Working Environment |
Working Temperature: 0-40℃; Working Humidity: 10%-85% RH (non-condensing); Storage Temperature: -20-60℃ |
|
Power Supply & Consumption
|
Power Supply: AC 110V-240V, 50/60Hz; Power Consumption: 120-200W (varies by configuration)
|
|
Core Functions
|
Dual-sided display & interactive operation; multi-payment method integration; remote menu update & management; real-time order synchronization with POS/kitchen system; sales data statistics & analysis; membership points & coupon management; automatic order printing; timed on/off; anti-theft alarm
|
|
Hardware Configuration
|

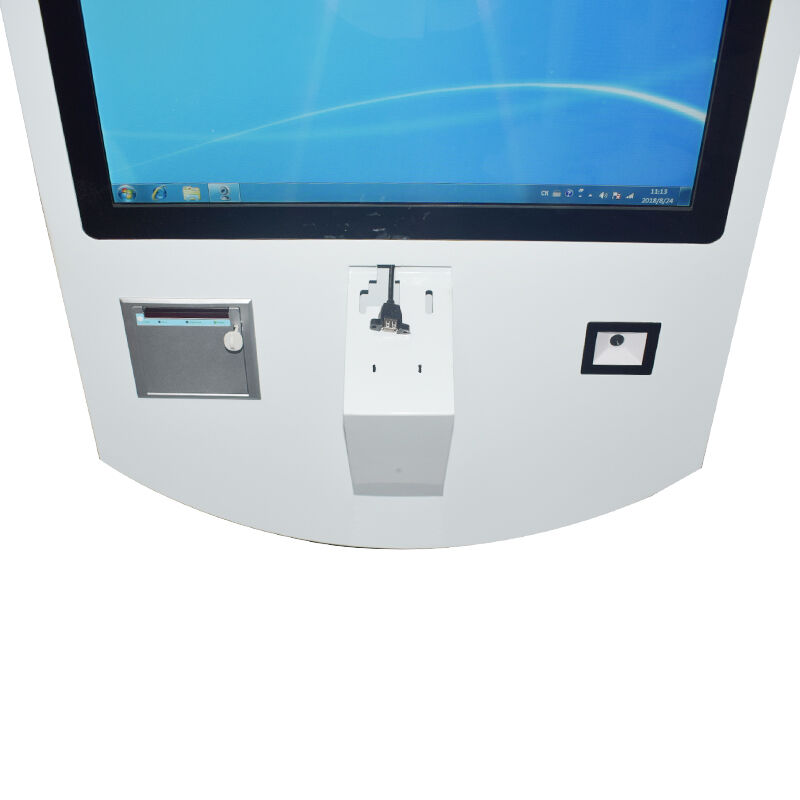

Built-in 80mm thermal receipt printer (print speed ≥ 200mm/s); 5W×2 high-fidelity speakers per side; industrial-grade power supply (stable voltage output); metal anti-theft shell; built-in cooling fan (silent design); optional facial recognition module
|
|
Installation & Appearance
|
Installation Method: Floor-standing (with adjustable base), Wall-mounted (optional); Color: Black, White, Customizable; Shell Material: Cold-rolled steel plate (spray-painted); Product Dimensions: 1500×550×450mm (approx., floor-standing type) |
Competitive Advantage
•Dual-Sided Efficient Utilization: Innovative dual-screen design realizes simultaneous customer interaction and marketing promotion, improving space utilization and marketing effect.
•Flexible Configuration Options: Optional Android RK3568A or Windows I3/I5/I7 system, matching different performance requirements and budget needs of merchants.
•Stable & Durable: Industrial-grade hardware and sealed shell design, resistant to oil fume, dust and impact, suitable for long-term high-frequency use in catering environments.
•Intelligent Remote Management: Support cloud-based remote operation, reducing manual on-site maintenance and improving management efficiency.
•Rich Function Integration: Integrate multiple payment methods and catering management systems, realizing one-stop service from ordering to settlement.
•User-Friendly Design: Sensitive capacitive touch screen, clear HD display, simple operation interface, suitable for customers of all ages.
